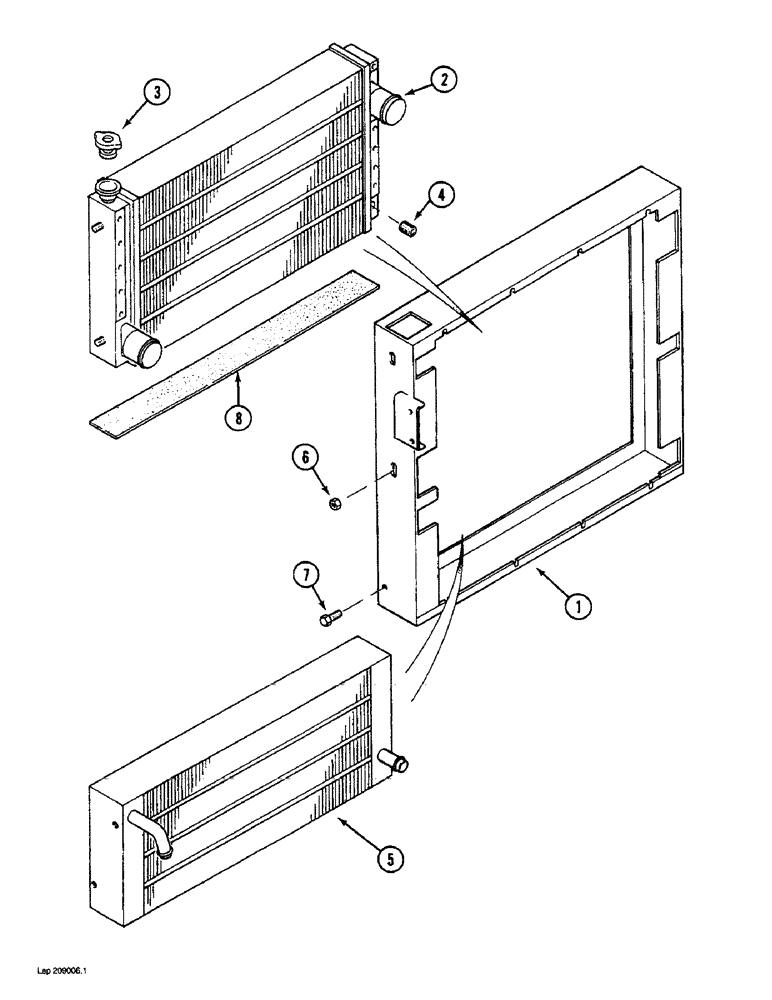

Запчасти Case 1088 (2-16) - RADIATOR AND OIL COOLER (02) - ENGINE
№
Артикул
Название
Примечание
Количество
P4143219
RADIATOR
ASSEMBLY - engine and hydraulic oil cooling, (Order P4143262), Includes, Ref. 1 - 8, Serial Range: 20233-20241
1шт.
P4143219
RADIATOR
ASSEMBLY - engine and hydraulic oil cooling, (Order P4143262), Includes, Ref. 1 - 8, Serial Range: 106933-106938
1шт.
1
NSS
NOT SOLD SEPARAT
SUPPORT - radiator and oil cooler, Serial Range: 20233-20241
1шт.
1
NSS
NOT SOLD SEPARAT
SUPPORT - radiator and oil cooler, Serial Range: 106933-106938
1шт.
2
P4143213
RADIATOR
- engine water cooling, (See T.I.N 3181), Serial Range: 20233-20241
1шт.
2
P4143213
RADIATOR
- engine water cooling, (See T.I.N.3181), Serial Range: 106933-106938
1шт.
3
A170241
RADIATOR CAP
CAP, RADIATOR, Filler, 15 psi (Replaces P2537495), Serial Range: 20233-20241
1шт.
3
A170241
RADIATOR CAP
CAP, RADIATOR, Filler, 15 psi (Replaces P2537495), Serial Range: 106933-106938
1шт.
4
P1137424
PLUG
- 1/4 inch NPT, radiator drain, Serial Range: 20233-20241
1шт.
4
P1137424
PLUG
- 1/4 inch NPT, radiator drain, Serial Range: 106933-106938
1шт.
5
P4143238
COOLER, OIL
OIL COOLER - hydraulic oil cooling, Serial Range: 20233-20241
1шт.
5
P4143238
COOLER, OIL
OIL COOLER - hydraulic oil cooling, Serial Range: 106933-106938
1шт.
6
P34113
NUT
- hex, 8 mm, Serial Range: 20233-20241
4шт.
6
P34113
NUT
- hex, 8 mm, Serial Range: 106933-106938
4шт.
7
P533813
SCREW
BOLT - hex, 8 mm x 16 mm, Serial Range: 20233-20241
4шт.
7
P533813
SCREW
BOLT - hex, 8 mm x 16 mm, Serial Range: 106933-106938
4шт.
8
P4143250
SUPPORT
PROTECTOR - radiator, Serial Range: 20233-20241
1шт.
8
P4143250
SUPPORT
PROTECTOR - radiator, Serial Range: 106933-106938
1шт.
P4143262
RADIATOR
ASSEMBLY - engine and hydraulic oil cooling, Includes, Ref. 1 - 8, Start Serial: 20242
1шт.
P4143262
RADIATOR
ASSEMBLY - engine and hydraulic oil cooling, Includes, Ref. 1 - 8, Start Serial: 106939
1шт.
1
P4143249
SUPPORT
- radiator and oil cooler, Start Serial: 20242
1шт.
1
P4143249
SUPPORT
- radiator and oil cooler, Start Serial: 106939
1шт.
2
P4143246
RADIATOR
- engine water cooling, (See T.I.N.3181), Start Serial: 20242
1шт.
2
P4143246
RADIATOR
- engine water cooling, (See T.I.N.3181), Start Serial: 106939
1шт.
3
A170241
RADIATOR CAP
CAP, RADIATOR, Filler, 15 psi (Replaces P2537495), Start Serial: 20242
1шт.
3
A170241
RADIATOR CAP
CAP, RADIATOR, Filler, 15 psi (Replaces P2537495), Start Serial: 106939
1шт.
4
P1137424
PLUG
- 1/4 inch NPT, radiator drain, Start Serial: 20242
1шт.
4
P1137424
PLUG
- 1/4 inch NPT, radiator drain, Start Serial: 106939
1шт.
5
P4143238
COOLER, OIL
OIL COOLER - hydraulic oil cooling, Start Serial: 20242
1шт.
5
P4143238
COOLER, OIL
OIL COOLER - hydraulic oil cooling, Start Serial: 106939
1шт.
6
P34113
NUT
- hex, 8 mm, Start Serial: 20242
4шт.
6
P34113
NUT
- hex, 8 mm, Start Serial: 106939
4шт.
7
P533813
SCREW
BOLT - hex, 8 mm x 16 mm, Start Serial: 20242
4шт.
7
P533813
SCREW
BOLT - hex, 8 mm x 16 mm, Start Serial: 106939
4шт.
8
P4143250
SUPPORT
PROTECTOR - radiator, Start Serial: 20242
1шт.
8
P4143250
SUPPORT
PROTECTOR - radiator, Start Serial: 106939
1шт.
Выбрано товаров: 36
