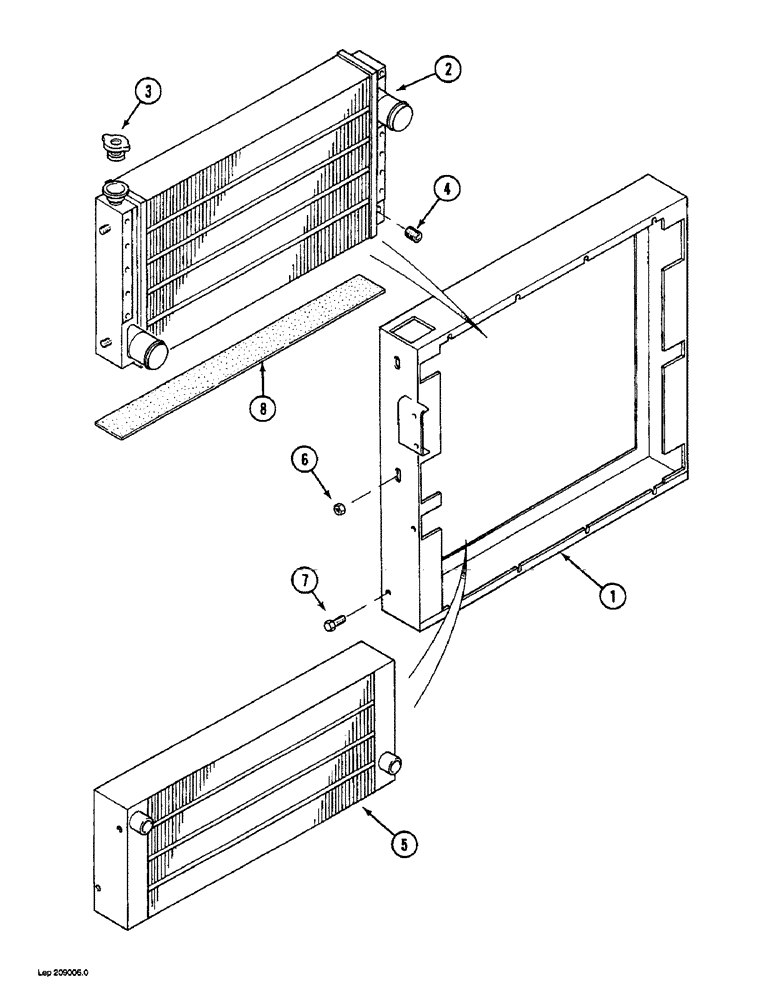

Запчасти Case 1088 (2-14) - RADIATOR AND OIL COOLER, P.I.N. FROM 19801 TO 20232, P.I.N. FROM 106901 TO 106932 (02) - ENGINE

P4143206

RADIATOR

ASSEMBLY - engine and hydraulic oil cooling, (Replaces P3543299) (See T.I.N. 3180), Includes, Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

SUPPORT - radiator and oil cooler, (See T.I.N. 3180)

1шт.

2

P4143213

RADIATOR

- engine water cooling, (See T.I.N. 3181)

1шт.

3

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi (Replaces P2537495)

1шт.

4

P1137424

PLUG

- 1/4 inch NPT, radiator drain

1шт.

5

P4143214

RADIATOR

OIL COOLER - hydraulic oil cooling (See T.I.N. 3180 and T.I.N. 3181)

1шт.

6

P34113

NUT

- hex, 8 mm

4шт.

7

P533813

SCREW

BOLT - hex, 8 mm x 16 mm

4шт.

8

P4143250

SUPPORT

PROTECTOR - radiator

1шт.
