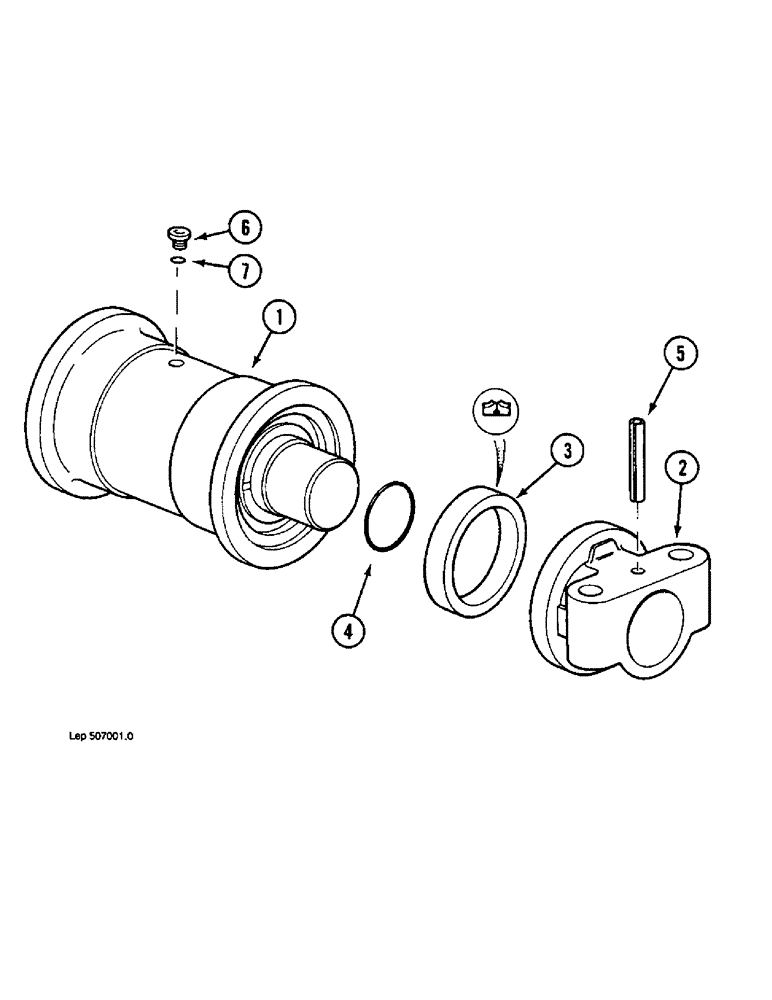

Запчасти Case 1088 (5-22) - TRACK ROLLER (11) - TRACKS/STEERING

P2242344

ROLLER, TRACK

TRACK ROLLER ASSEMBLY - complete, INTERTRAC identification, (Replaces P1642331), Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

ROLLER ASSEMBLY - track

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - mounting, track roller

2шт.

3

K9346013

SEALING RING,90.5mm ID x 109.5mm OD x 31.8mm Thk

SEAL - oil roller shaft, (Replaces P7546072)

2шт.

4

P2230439

O-RING

- roller shaft

2шт.

5

P435737

SPLIT PIN/SAFETY PIN

ROLL PIN -, Serial Range: bracket-roller

2шт.

P1642331

ROLLER, TRACK

TRACK ROLLER ASSEMBLY - complete, ITM identification (Order P2242344), Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

ROLLER ASSEMBLY - track

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - mounting, track roller

2шт.

3

P1046032

SET OF GASKET

SEAL - oil, roller shaft

2шт.

4

P2230407

O-RING

- plug

1шт.

5

P35715

SPLIT PIN/SAFETY PIN

ROLL PIN -, Serial Range: bracket-roller

2шт.

6

P737448

PLUG

- filler, track roller

1шт.

7

P2230408

O-RING

- roller shaft

2шт.
