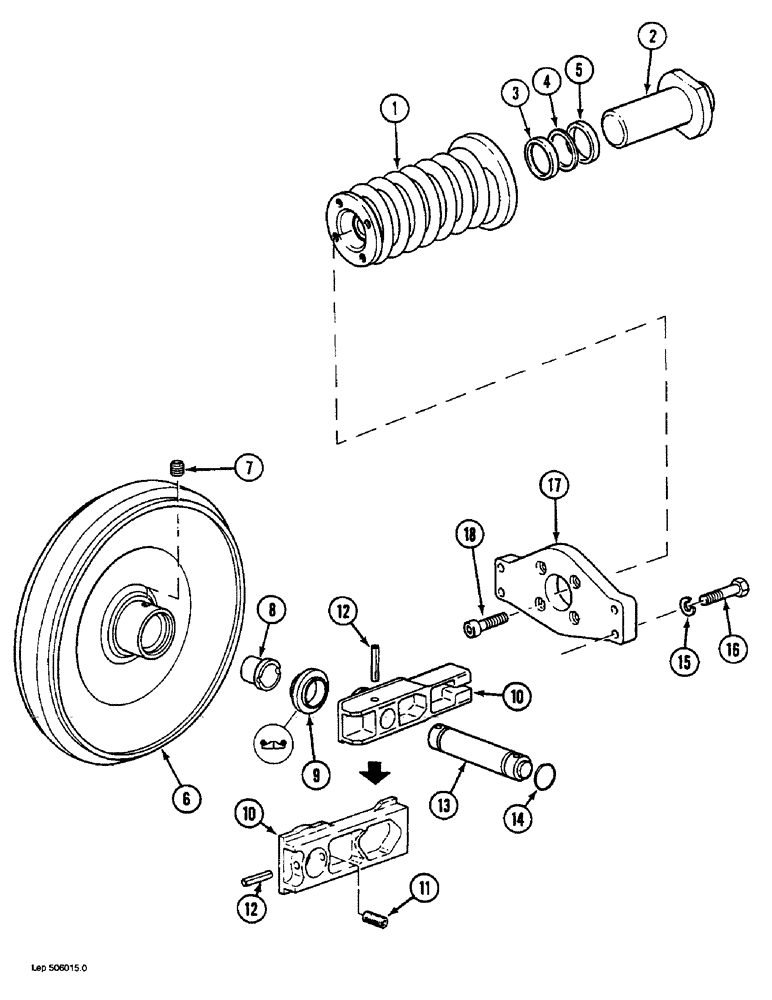

Запчасти Case 1088 (5-18) - TRACK IDLER AND ADJUSTMENT CYLINDER, INTERTAC IDENTIFICATION (11) - TRACKS/STEERING

P2242309

SHOCK ABSORBER

CYLINDER ASSEMBLY - track adjustment, Includes: Ref. 1 - 5

2шт.

1

NSS

NOT SOLD SEPARAT

BRACKET SPRING - track adjustment

1шт.

2

P6427844

PISTON

- adjustment cylinder

1шт.

3

P9346086

SHAFT SEAL

SEAL - piston

1шт.

4

P9346087

BACK-UP RING

BACKUP RING - seal, piston

1шт.

5

P151327

SEAL

- piston

1шт.

P1642335

FRONT IDLER

IDLER ASSEMBLY - track, Includes: Ref. 6 - 14

2шт.

6

NSS

NOT SOLD SEPARAT

WHEEL - idler

1шт.

7

P2537437

PLUG

- filler, idler wheel

1шт.

8

P1528667

BUSHING

- idler wheel

2шт.

9

P9346013

SET OF GASKET

SEAL ASSEMBLY - oil, idler wheel

2шт.

10

P7928255

SUPPORT

BRACKET - idler wheel, (Replaces P5028281)

2шт.

11

P3337461

PLUG

- bracket

1шт.

12

P435736

SPLIT PIN/SAFETY PIN

ROLL PIN - idler, Serial Range: shaft-bracket

2шт.

13

P5327859

SHAFT

- idler wheel

1шт.

14

P2230439

O-RING

- idler shaft

2шт.

15

P1945390

WASHER

- flat, 16 mm

4шт.

16

P33803

SCREW

BOLT - hex, 16 mm x 55 mm

2шт.

17

P8846205

CROSSBAR

BRACKET - idler, Serial Range: wheel-bracket

1шт.

18

P32967

SCREW

BOLT - hex socket, 16 mm x 30 mm

4шт.
