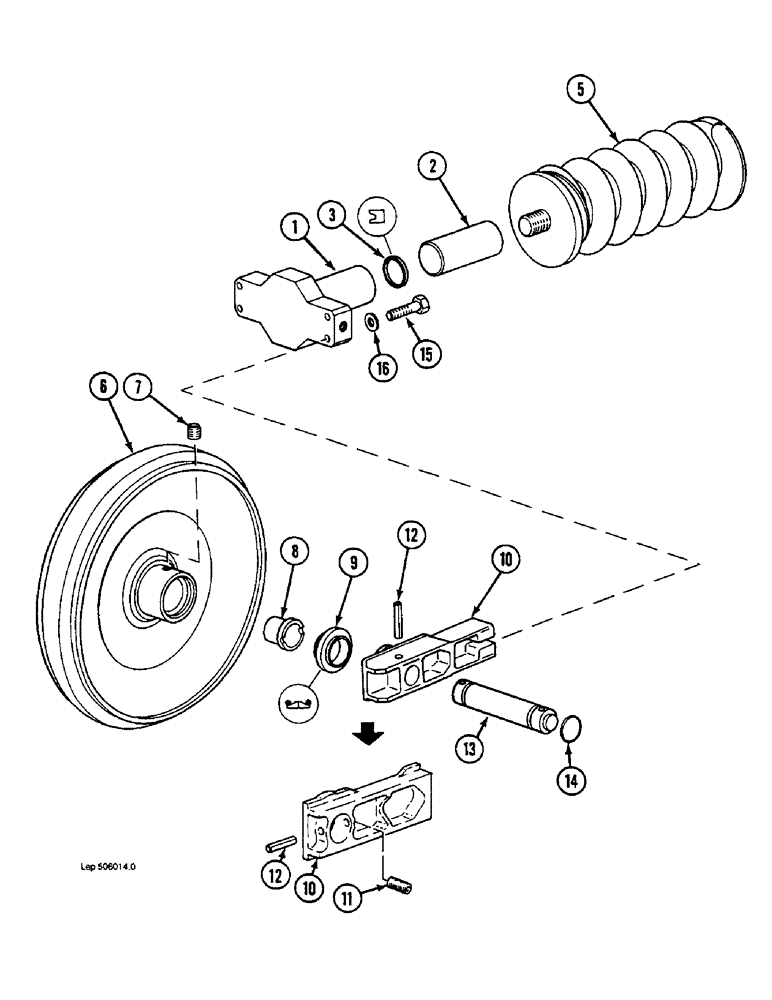

Запчасти Case 1088 (5-16) - TRACK IDLER AND ADJUSTMENT CYLINDER, INTERTRAC IDENTIFICATION P.I.N. FROM 19801 TO XXXXX (11) - TRACKS/STEERING

P7946201

SUPPORT

CYLINDER ASSEMBLY - track adjustment, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

BRACKET AND CYLINDER - track adjustment

1шт.

2

P7946203

PISTON

- adjustment cylinder

1шт.

3

P8846092

SEAL

- piston

1шт.

5

P7946202

SHOCK ABSORBER

SPRING - track, shock absorber

2шт.

P1642335

FRONT IDLER

IDLER ASSEMBLY - track, Includes: Ref. 6 - 14

2шт.

6

NSS

NOT SOLD SEPARAT

WHEEL - idler

1шт.

7

P2537437

PLUG

- filler, idler wheel

1шт.

8

P1528667

BUSHING

- idler wheel

2шт.

9

P9346013

SET OF GASKET

SEAL ASSEMBLY - oil, idler wheel, (Replaces P7546072)

2шт.

10

P7928255

SUPPORT

BRACKET - idler wheel, (Replaces P5028281)

2шт.

11

P3337461

PLUG

- bracket

1шт.

12

P435736

SPLIT PIN/SAFETY PIN

ROLL PIN - idler, Serial Range: shaft-bracket

2шт.

13

P5327859

SHAFT

- idler wheel

1шт.

14

P2230439

O-RING

- idler shaft

2шт.

15

P133805

SCREW

BOLT - hex, 16mm x 60 mm

2шт.

16

P1945390

WASHER

- flat, 16 mm

4шт.
