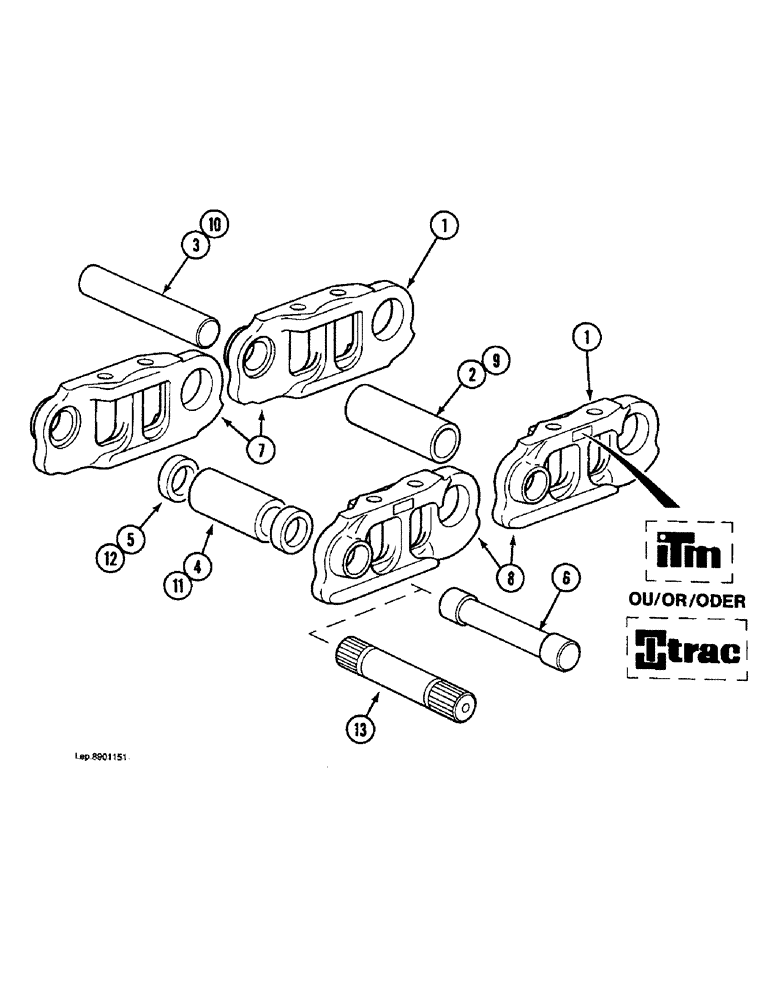

Запчасти Case 1088 (5-14) - TRACK CHAIN, LINKS, AND PINS (11) - TRACKS/STEERING

P1942345

CHAIN (CE)

CHAIN ASSEMBLY - track, 54 links, ITM identification, Includes: Ref. 1 - 6

2шт.

1

P2042310

HALF-LINK

LINK - track, set, includes one right-hand and one left-hand link

54шт.

2

P2229379

SPACER

BUSHING - standard pin

53шт.

3

P6027882

PIN

- standard

53шт.

4

P2229377

SPACER

BUSHING - master pin

1шт.

5

P2828596

BUSHING

SPACER - master pin

2шт.

6

P6027880

PIN

- master

1шт.

P1942345

CHAIN (CE)

CHAIN ASSEMBLY - track, 54 links, INTERTRAC identification, Includes: Ref. 7 - 13

2шт.

7

P2042312

LINK

- track, right-hand

54шт.

8

P2042313

LINK

- track, left-hand

54шт.

9

P2229380

SPACER

BUSHING - standard pin

53шт.

10

P6027883

PIN

- standard

53шт.

11

P2229378

SPACER

BUSHING - master pin

1шт.

12

P2828597

SPACER

- master pin

2шт.

13

P6027881

PIN

- master (Order P6427813, P2042312 and P2042313)

1шт.

13

P6427813

PIN

- master

1шт.
