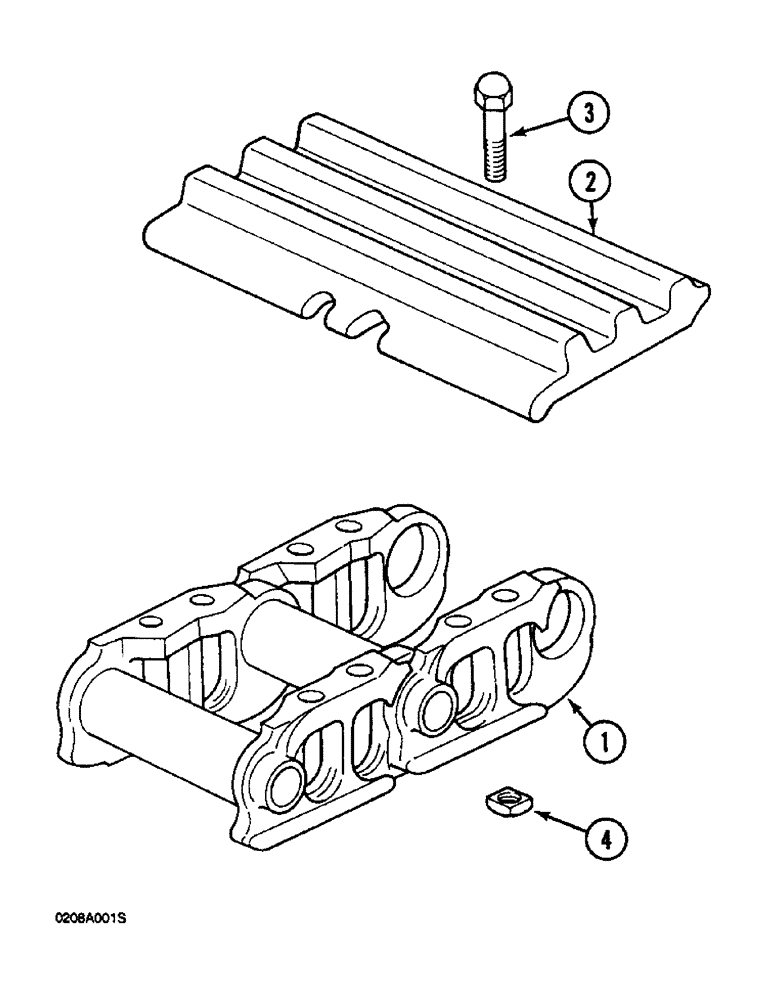

Запчасти Case 1088 (5-12) - TRACK SHOES, P.I.N. FROM 19801 TO 19993 AND 19998 TO 20005 (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CHAIN ASSEMBLY - track, (See Figure 5-14)
2шт.
2
P1942304
TRACK SHOE
- grouser, 27-1/2 inch long
108шт.
3
P33071
SCREW
BOLT - track shoe, special
432шт.
4
P134536
NUT
- track shoe, special
432шт.
1
REF
INSTRUCTION
CHAIN ASSEMBLY - track, (See Figure 5-14), Serial Range: 19994-19997
2шт.
1
REF
INSTRUCTION
CHAIN ASSEMBLY - track, (See Figure 5-14), Start Serial: 20006
2шт.
1
REF
INSTRUCTION
CHAIN ASSEMBLY - track, (See Figure 5-14), Start Serial: 106901
2шт.
2
P2042357
TRACK SHOE
- grouser, 27-1/2 inch long, Serial Range: 19994-19997
108шт.
2
P2042357
TRACK SHOE
- grouser, 27-1/2 inch long, Start Serial: 20006
108шт.
2
P2042357
TRACK SHOE
- grouser, 27-1/2 inch long, Start Serial: 106901
108шт.
3
P3533059
SCREW
BOLT - track shoe, special, Serial Range: 19994-19997
432шт.
3
P3533059
SCREW
BOLT - track shoe, special, Start Serial: 20006
432шт.
3
P3533059
SCREW
BOLT - track shoe, special, Start Serial: 106901
432шт.
4
P2434592
NUT
- track shoe, special, Serial Range: 19994-19997
432шт.
4
P2434592
NUT
- track shoe, special, Start Serial: 20006
432шт.
4
P2434592
NUT
- track shoe, special, Start Serial: 106901
432шт.
1
REF
INSTRUCTION
CHAIN ASSEMBLY - track, Start Serial: 19801
2шт.
1
REF
INSTRUCTION
CHAIN ASSEMBLY - track, Start Serial: 106901
2шт.
2
P1942383
TRACK SHOE
- grouser, 35-1/2 inch long, Start Serial: 19801
108шт.
2
P1942383
TRACK SHOE
- grouser, 35-1/2 inch long, Start Serial: 106901
108шт.
P3533059
SCREW
BOLT - track shoe, special, Start Serial: 19801
432шт.
P3533059
SCREW
BOLT - track shoe, special, Start Serial: 106901
432шт.
3
P2434592
NUT
- track shoe, special, Start Serial: 19801
432шт.
4
P2434592
NUT
- track shoe, special, Start Serial: 106901
432шт.
Выбрано товаров: 24
