(5-10) - TURNTABLE LEVELER TRACK FRAME TUBING GUARDS, P.I.N. FROM 106901 AND AFTER

Запчасти Case 1088 (5-10) - TURNTABLE LEVELER TRACK FRAME TUBING GUARDS, P.I.N. FROM 106901 AND AFTER (11) - TRACKS/STEERING

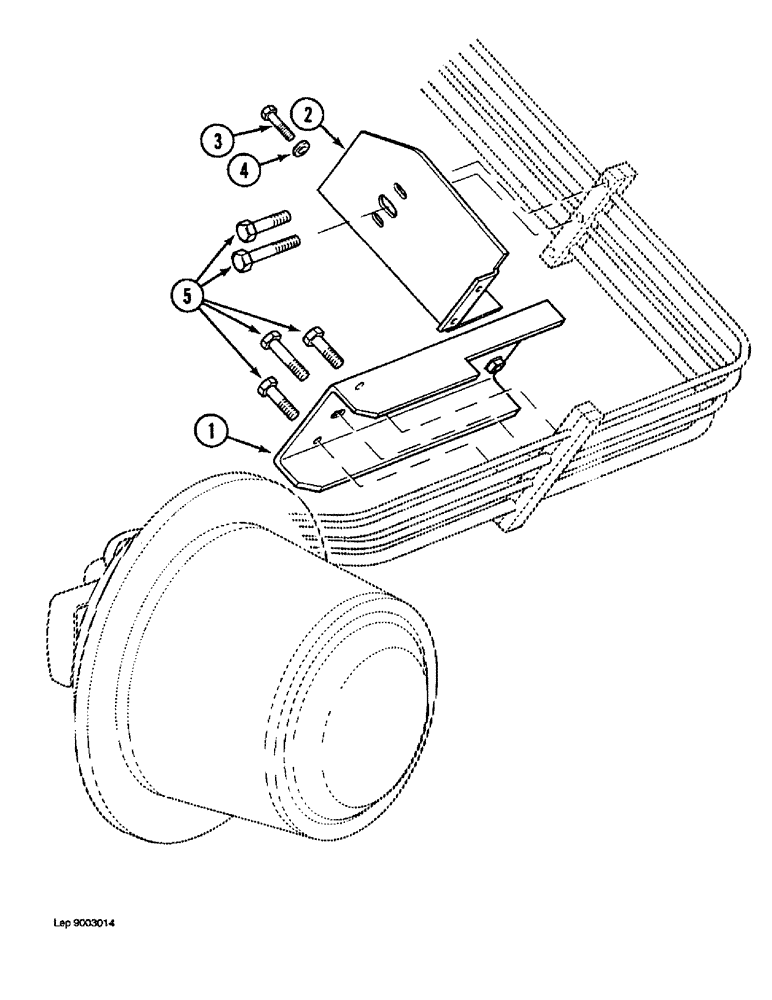

Схема запчастей Case 1088 - (5-10) - TURNTABLE LEVELER TRACK FRAME TUBING GUARDS, P.I.N. FROM 106901 AND AFTER (11) - TRACKS/STEERING
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P7628285

PROTECTOR

GUARD - drive motor tubing, right-hand side, lower

1шт.

1

P7628286

PROTECTOR

GUARD - dirve motor tubing, left-hand side, lower

1шт.

2

P3626314

PROTECTOR

GUARD - drive motor tubing, right-hand side, upper

1шт.

2

P3626312

PROTECTOR

GUARD - drive motor tubing, left-hand side, upper

1шт.

3

P33818

SCREW

BOLT - hex, 8 mm x 35 mm

4шт.

4

P4328795

WASHER

SPACER - bolt, 6 mm thick

4шт.

5

REF

INSTRUCTION

BOLT - hex, (See Figures 7-10)

8шт.
