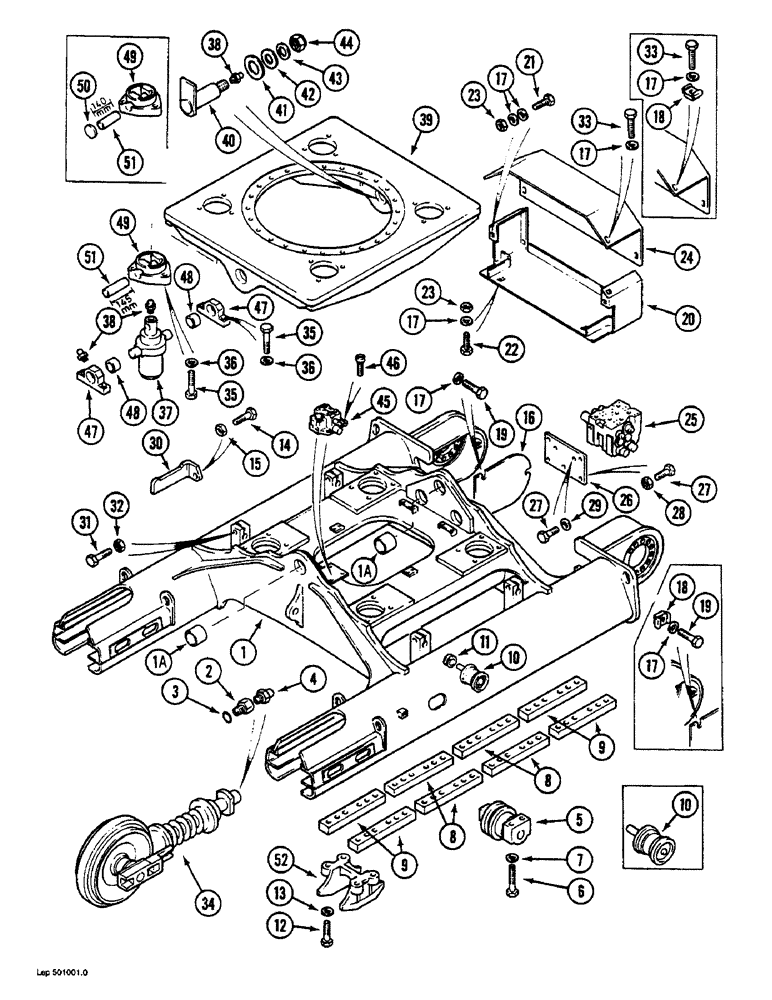

Запчасти Case 1088 (5-04) - TURNTABLE LEVELER TRACK FRAME AND UNDERCARRIAGE, P.I.N. FROM 106901 AND AFTER (11) - TRACKS/STEERING

1

P255616

FRAME

TRACK FRAME AND UNDERCARRIAGE - excavator, Includes: Ref. 1A

1шт.

1a

P4528770

BUSHING

- undercarriage

2шт.

2

P2643387

ADAPTER

ASSEMBLY - grease fitting to track adjuster, Includes: Ref. 3 and 4

2шт.

3

P1145268

SEAL

- adapter

2шт.

4

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

2шт.

5

REF

INSTRUCTION

TRACK ROLLER - lower, (See page 5-22)

18шт.

6

P1133890

SCREW

BOLT - hex, 16 mm x 110 mm, grade 10.9

72шт.

7

P4628731

WASHER

SPACER - bolt, 6 mm thick

72шт.

8

P4820304

PLATE,SMALL SQUARE

BAR - retainer, Serial Range: roller-frame

4шт.

9

P4820322

PLATE,SMALL SQUARE

BAR - retainer, Serial Range: roller-frame

8шт.

10

P2242301

ROLLER, TRACK

TRACK ROLLER - upper, Includes: Ref. 11

4шт.

11

P8846056

SET OF GASKET

SEAL - oil, roller shaft, not shown

1шт.

12

P233841

SCREW

BOLT - hex, 16 mm x 70 mm

16шт.

13

P4628731

WASHER

SPACER - bolt, 6 mm thick

16шт.

14

P133835

SCREW

BOLT - hex, 20 mm x 100 mm

2шт.

15

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

2шт.

16

P3322523

COWL

GUARD - drive moter, inner

2шт.

17

P3528795

WASHER

SPACER - bolt, 7 mm thick

14шт.

18

P2434525

NUT

- cage type, 10 mm, (If used)

10шт.

19

P933818

SCREW

BOLT - hex, 10 mm x 40 mm, (Replaces P732622)

6шт.

20

P255634

PROTECTOR

GUARD - drive control valve

1шт.

21

P433814

SCREW

BOLT - hex, 10 mm x 60 mm, full thread

2шт.

22

P233832

SCREW

BOLT - hex, 10 mm x 80 mm, full thread

2шт.

23

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

24

P7628233

PROTECTOR

COVER - drive control valve guard

1шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - drive control, (See Figure 7-14)

1шт.

26

P2023282

HOOD

PLATE - mounting, drive control valve

1шт.

27

P33873

SCREW

BOLT - hex, 12 mm x 25 mm

7шт.

28

P34596

LOCK NUT

NUT - hex, self-locking, 12 mm

4шт.

29

P3528793

WASHER

SPACER - bolt, 8 mm thick

3шт.

30

P2326789

STEP

- operator assist

2шт.

31

P833815

SCREW

BOLT - upper track roller, 24 mm x 120 mm

4шт.

32

P134566

SAFETY NUT

NUT - hex, self-locking, 24 mm

4шт.

33

P833802

SCREW

BOLT - hex, 10 mm x 50 mm, (Replaces P3333033)

2шт.

34

REF

INSTRUCTION

TRACK IDLER ADJUSTMENT CYLINDER - undercarriage, (See Figures 5-10 and 5-12)

2шт.

35

P1633855

SCREW

BOLT - hex, 20 mm - 1.5 x 70 mm

28шт.

36

P4328747

WASHER

SPACER - bolt, 14 mm thick

28шт.

37

REF

INSTRUCTION

CYLINDER - leveler, (See Figure 7-22)

4шт.

38

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

14шт.

39

P7628283

SUPPORT

LEVELER - turntable

1шт.

40

P2930994

HEADED PIN

PIN - leveler, Serial Range: table-undercarriage

2шт.

41

P1145581

WASHER

- spacer, 94 x 160 x 10 mm

2шт.

42

P1145582

WASHER

- spacer, 56 x 125 x 10 mm

2шт.

43

P745319

WASHER

- special, leveler, Serial Range: table-undercarriage

1шт.

44

P1334516

SAFETY NUT

NUT - hex, self-locking, 52 mm

2шт.

45

REF

INSTRUCTION

CONTROL VALVE - leveler, (See Figure 8F-16)

1шт.

46

P32932

SCREW

BOLT - hex socket, 10 mm x 25 mm

4шт.

47

P1639505

CYLINDER END CAP

BRACKET - leveler cylinder to undercarriage, (Order P1639514), Includes: Ref. 48

8шт.

48

P5728731

BUSHING

- bracket at cylinder, (Order P1639514)

1шт.

49

P1639506

CYLINDER END CAP

BRACKET -, Serial Range: cylinder-leveler

4шт.

50

P3545042

DISC

WASHER - pin, special 3 mm thick, (If used)

8шт.

51

P1827530

PIN

- cylinder, Serial Range: rod-bracket

4шт.

52

P155561

GUIDE

- track, front of undercarriage

4шт.
