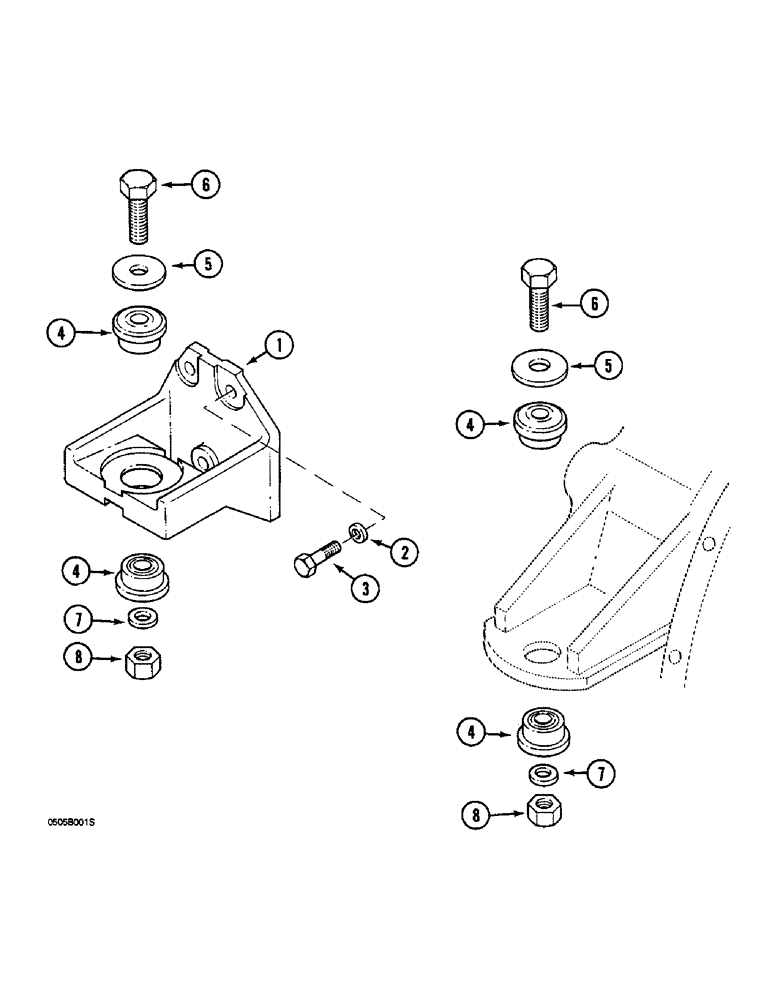

Запчасти Case 1088 (2-02) - ENGINE MOUNTING AND ADAPTING PARTS (02) - ENGINE

1

P2646130

FOOT

SUPPORT - engine front, (Replaces P6828210)

2шт.

2

P4328797

WASHER

SPACER - bolt, 8 mm thick

4шт.

3

P33887

SCREW

BOLT - hex, 12 mm x 45 mm

4шт.

4

P4441473

SUPPORT

INSULATOR - rubber and side engine mounting, (Replaces P49921 and P3841430)

8шт.

5

P2745406

WASHER

- special, rubber insulator mounting

4шт.

6

P33855

SCREW

BOLT - hex, 16 mm x 90 mm

4шт.

7

P3528790

WASHER

SPACER - bolt, 11 mm thick

4шт.

8

P34562

SAFETY NUT

NUT - hex, self-locking, 16 mm

4шт.
