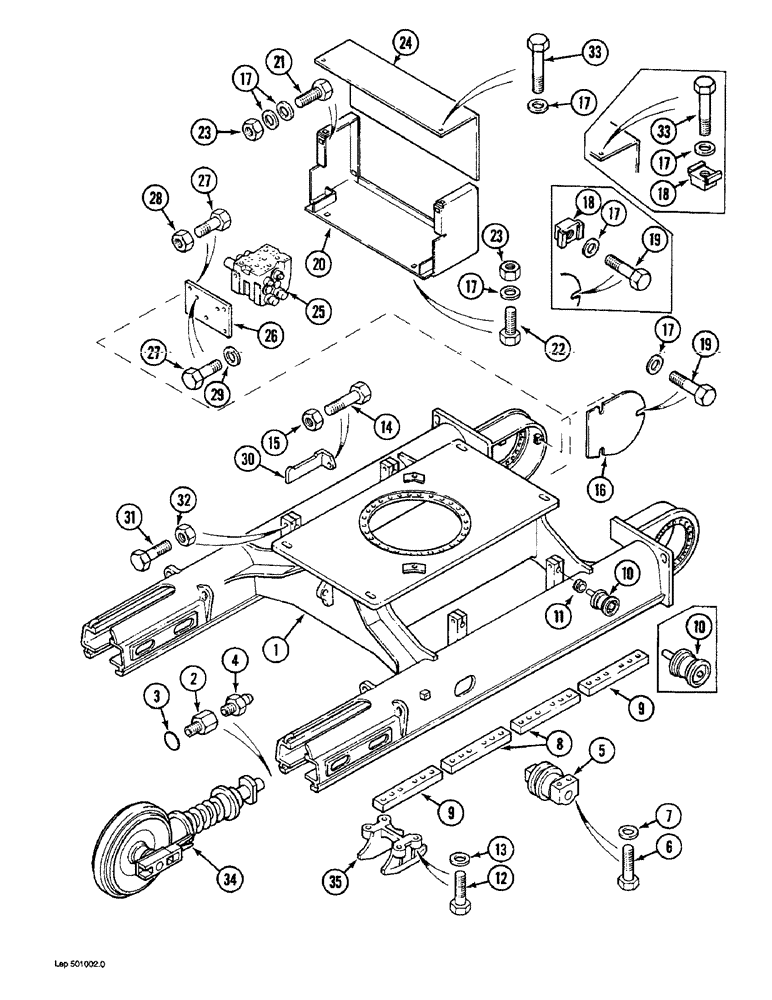

Запчасти Case 1088 (5-02) - TRACK FRAME AND UNDERCARRIAGE (11) - TRACKS/STEERING

1

P255605

FRAME

TRACK FRAME AND UNDERCARRIAGE - excavator, (See T.I.N. 3159 and 3193)

1шт.

2

P2643387

ADAPTER

ASSEMBLY - grease fitting to track adjuster, Includes: Ref. 3 and 4

2шт.

3

P1145268

SEAL

- adapter

2шт.

4

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

2шт.

5

REF

INSTRUCTION

TRACK-ROLLER - lower, (See Figures 5-22)

18шт.

6

P1133890

SCREW

BOLT - hex, 16 mm x 110 mm, grade 10.9

72шт.

7

P4628731

WASHER

SPACER - bolt, 6 mm thick

72шт.

8

P4820304

PLATE,SMALL SQUARE

BAR - retainer, Serial Range: roller-frame

8шт.

9

P4820322

PLATE,SMALL SQUARE

BAR - retainer, Serial Range: roller-frame

8шт.

10

P1538577

ROLLER, TRACK

TRACK ROLLER - upper, (Order P2242301), Includes: Ref. 11

4шт.

10

P2242301

ROLLER, TRACK

TRACK ROLLER - upper

4шт.

11

P8846056

SET OF GASKET

SEAL - oil, roller shaft, not shown

1шт.

12

P233841

SCREW

BOLT - hex, 16 mm x 70 mm

16шт.

13

P4628731

WASHER

SPACER - bolt, 6 mm thick

16шт.

14

P133835

SCREW

BOLT - hex, 20 mm x 100 mm

2шт.

15

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

2шт.

16

P3322523

COWL

GUARD - drive motor, inner, (Replaces P3022531)

2шт.

17

P3528795

WASHER

SPACER - bolt, 7 mm thick

16шт.

18

P2434525

NUT

- cage type, 10 mm, (If used)

10шт.

19

P933818

SCREW

BOLT - hex, 10 mm x 40 mm, (Replaces P732622)

6шт.

20

P926482

PROTECTOR

GUARD - drive control valve

1шт.

21

P433814

SCREW

BOLT - hex, 10 mm x 60 mm, full thread

2шт.

22

P233832

SCREW

BOLT - hex, 10 mm x 80 mm, full thread

1шт.

23

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

24

P5125678

HOOD

COVER - drive control valve guard

1шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - drive control, (See Figure 7-14)

1шт.

26

P2023282

HOOD

PLATE - mounting, drive control valve

1шт.

27

P33873

SCREW

BOLT - hex, 12 mm x 25 mm

7шт.

28

P34596

LOCK NUT

NUT - hex, self-locking, 12 mm

4шт.

29

P3528793

WASHER

SPACER - bolt, 8 mm thick

3шт.

30

P2326789

STEP

- operator assist

2шт.

31

P833815

SCREW

BOLT - upper track roller, 24 mm x 120 mm

4шт.

32

P134566

SAFETY NUT

NUT - hex, self-locking, 24 mm

4шт.

33

P833802

SCREW

BOLT - hex, 10 mm x 50 mm, (Replaces P3333033)

4шт.

34

REF

INSTRUCTION

TRACK IDLER ADJUSTMENT CYLINDER - undercarriage, (See Figures 5-16 - 5-20)

2шт.

35

P155561

GUIDE

- track, front of undercarriage, (See T.I.N. 3158)

4шт.
