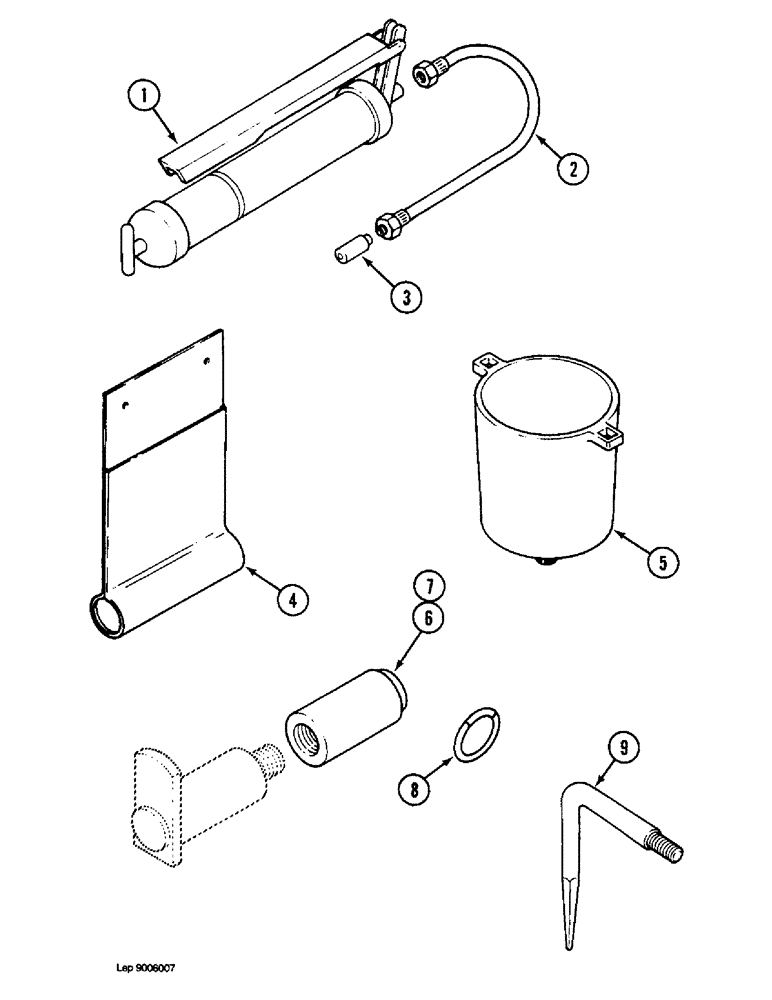

Запчасти Case 1088 (9H-08) - TOOLS (09) - CHASSIS/ATTACHMENTS

P44433

PUMP

ASSEMBLY - grease, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - grease

1шт.

2

P31960

HOSE

- grease pump

1шт.

3

P144420

CLASP

CAP - grease pump hose

1шт.

4

P44212

KIT

HOLDER - operator manual

1шт.

5

P840279

FUNNEL

- hydraulic reservoir oil

1шт.

6

P1944430

TRANSMISSION SLEEVE

SLEEVE - threaded, mounting pin, 70 mm diameter

1шт.

7

P1844492

TRANSMISSION SLEEVE

SLEEVE - threaded, mounting pin, 55 mm diameter

1шт.

8

P3036969

RING

- keys

1шт.

9

P52025

PLATE,SMALL SQUARE

HANDLE - square-end, suction cabinet door, Start Serial: 20174

1шт.

9

P52025

PLATE,SMALL SQUARE

HANDLE - square-end, suction cabinet door, Start Serial: 106901

1шт.

P1244245

BOX

SEAL KIT - tapered face seal, not shown

1шт.

P1630469

SET OF GASKET

SEAL kit - metric O-ring, not shown

1шт.
