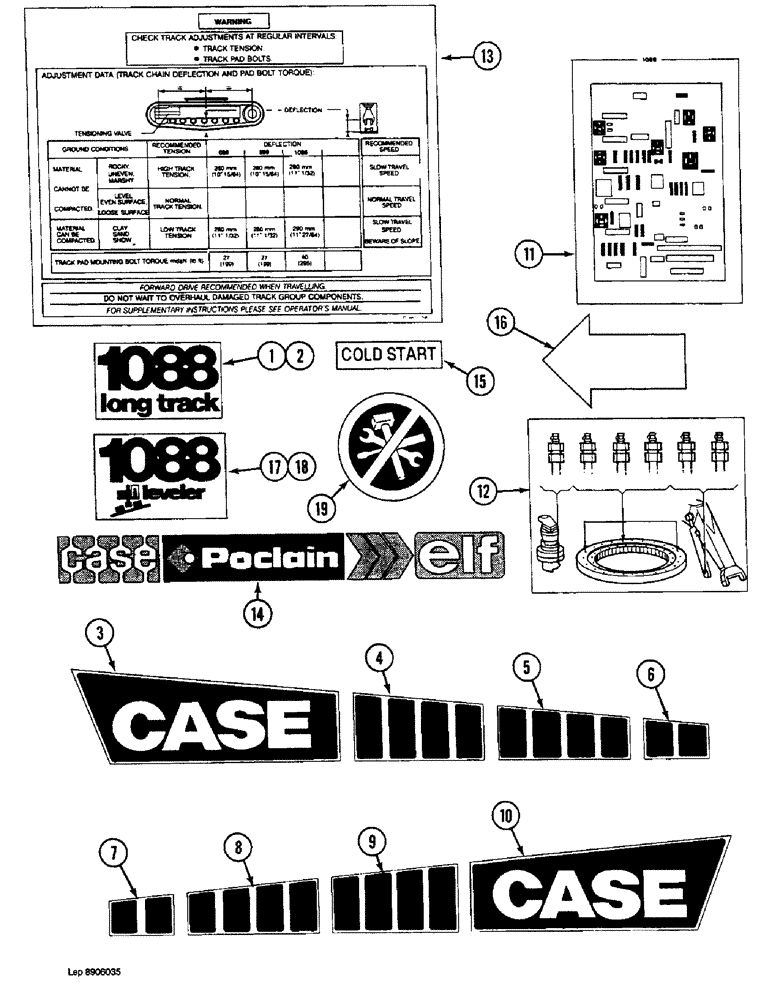

Запчасти Case 1088 (9H-04) - DECALS, P.I.N. FROM 19801 AND AFTER, P.I.N. FROM 106901 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

P1751537

DECAL

- 1088LT, right-hand

1шт.

2

P1751538

DECAL

- 1088LT, left-hand

1шт.

3

P1651554

DECAL

- Case, right-hand side of boom

1шт.

4

P1651556

DECAL

- treads, located on front right-hand side of boom

1шт.

5

P1451545

DECAL

- treads No. 1, located on middle right-hand side of boom

1шт.

6

P1451546

DECAL

- treads No. 2, located on right-hand side of boom

1шт.

7

P1451542

DECAL

- treads No. 2, located on left-hand side of boom

1шт.

8

P1451541

DECAL

DDECAL - treads No. 1, located on middle left-hand side of boom

1шт.

9

P1651553

DECAL

- treads, located on front left-hand side of boom

1шт.

10

P1651555

DECAL

- Case, left-hand side of boom

1шт.

11

P1451585

DECAL

- fuse and magnetic switch location, in electrical box

1шт.

12

P1251547

DECAL

- lubrication

1шт.

13

P1651570

DECAL

- check track adjustments

1шт.

14

P1751523

DECAL

- Case Poclain Elf, located on rear glass of cab

1шт.

15

P1751548

DECAL

- Cold start

1шт.

16

P1751566

DECAL

- travel direction

2шт.

17

P1751598

DECAL

- 1088 leveler, right-hand

1шт.

18

P1751597

DECAL

- 1088 leveler, left-hand

1шт.

19

P1751577

DECAL

- no storage, Start Serial: 20174

1шт.

19

P1751577

DECAL

- no storage, Start Serial: 106901

1шт.
