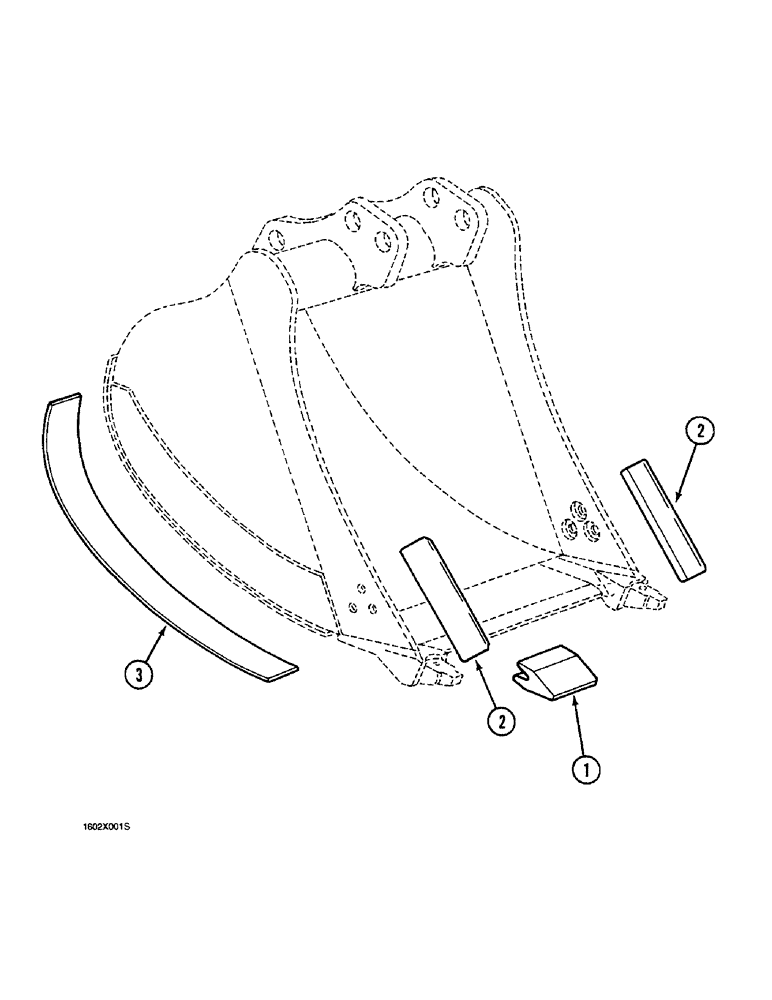

Запчасти Case 1088 (9G-12) - BUCKET REINFORCEMENT PARTS (09) - CHASSIS/ATTACHMENTS

№

Артикул

Название

Примечание

Количество

1

P2346174

BLADE

REINFORCEMENT - cutting edge, backhoe bucket 23-5/8" wide

2шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket 23-5/8" wide

2шт.

1

P2346176

PLATE

REINFORCEMENT - cutting edge, backhoe bucket 29-1/2" wide

2шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket 29-1/2" wide

2шт.

3

P5826636

STIFFENER

REINFORCEMENT - bucket bottom, backhoe bucket 29-1/2" wide

2шт.

1

P2346177

PROTECTOR

REINFORCEMENT - cutting edge, backhoe bucekt 33-1/2" and 35-1/2" wide

2шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucekt 33-1/2" and 35-1/2" wide

2шт.

3

P5826636

STIFFENER

REINFORCEMENT - bucket bottom, backhoe bucekt 33-1/2" and 35-1/2" wide

2шт.

1

P2346174

BLADE

REINFORCEMENT - cutting edge, backhoe bucket 35-1/2" wide

2шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket 35-1/2" wide

2шт.

3

P5826636

STIFFENER

REINFORCEMENT - bucket bottom, backhoe bucket 35-1/2" wide

2шт.

1

P2346176

PLATE

REINFORCEMENT - cutting edge, backhoe bucket 39-1/2" wide

2шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket 39-1/2" wide

2шт.

3

P5826636

STIFFENER

REINFORCEMENT - bucket bottom, backhoe bucket 39-1/2" wide

3шт.

1

P2346177

PROTECTOR

REINFORCEMENT - cutting edge, backhoe bucket 43-15/16" wide

2шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket 43-15/16" wide

2шт.

3

P5826636

STIFFENER

REINFORCEMENT - bucket bottom, backhoe bucket 43-15/16" wide

3шт.

1

P2346175

PLATE

REINFORCEMENT - cutting edge, backhoe bucket 49-3/16" wide

2шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket 49-3/16" wide

2шт.

3

P5826636

STIFFENER

REINFORCEMENT - bucket bottom, backhoe bucket 49-3/16" wide

4шт.

1

P2346176

PLATE

REINFORCEMENT - cutting edge, backhoe bucket 55-1/8" wide

2шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket 55-1/8" wide

2шт.

3

P5826636

STIFFENER

REINFORCEMENT - bucket bottom, backhoe bucket 55-1/8" wide

4шт.

Выбрано товаров: 23
