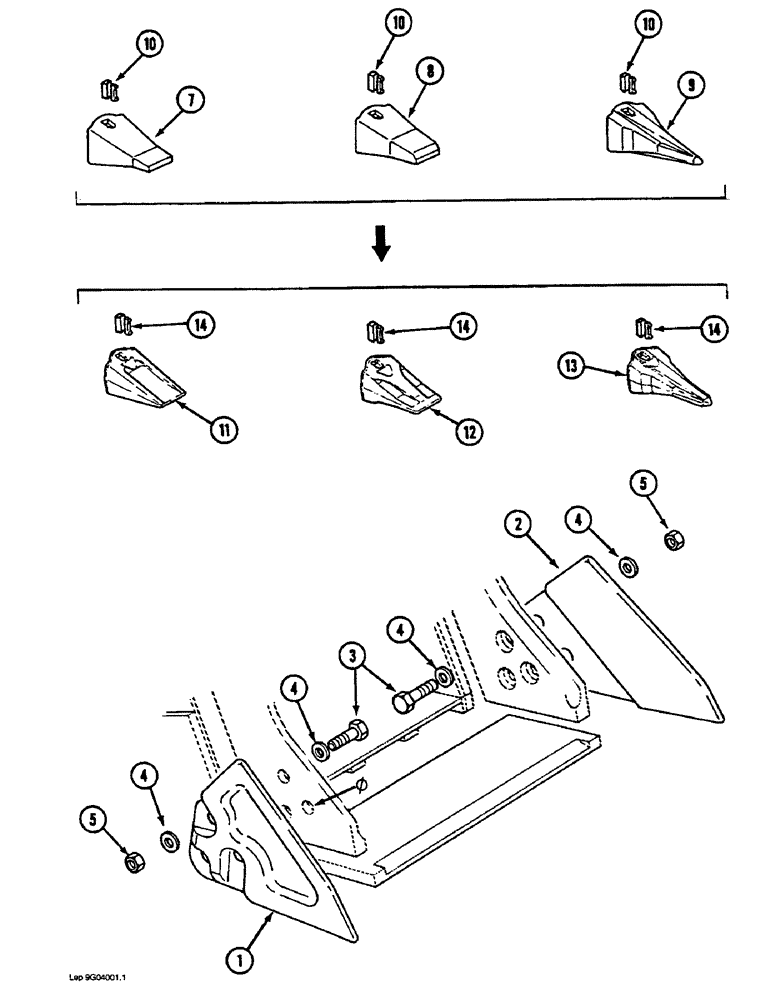

Запчасти Case 1088 (9G-10) - BUCKET TEETH AND SIDE CUTTING EDGES (09) - CHASSIS/ATTACHMENTS

1

P1304030

BLADE

CUTTING EDGE - side, left-hand

1шт.

2

P1304031

BLADE

CUTTING EDGE - side, right-hand

1шт.

3

P1633802

SCREW

BOLT - hex, 20 mm x 60 mm

6шт.

4

P5428789

WASHER

- 21 mm x 7 mm x 35 mm

12шт.

5

P34171

NUT

- hex, 20 mm

6шт.

7

P604282

POINT

TOOTH - bucket, standard, (Order P704229 & P120606)

1шт.

8

P604286

POINT

TOOTH - bucket, rock, (Order P704230 & P120606)

1шт.

9

P604284

TOOTH

- bucket, spur type, (Order P704232 & P120606)

1шт.

10

P1236121

BUCKET TOOTH KEY

RETAINER - lock, Serial Range: tooth-shank

1шт.

11

P704229

POINT

TOOTH - bucket, standard

1шт.

12

P704230

POINT

TOOTH - bucket, rock

1шт.

13

P704232

POINT

TOOTH - bucket, spur type

1шт.

14

P120606

BUCKET TOOTH KEY

RETAINER - lock, Serial Range: tooth-shank

1шт.
