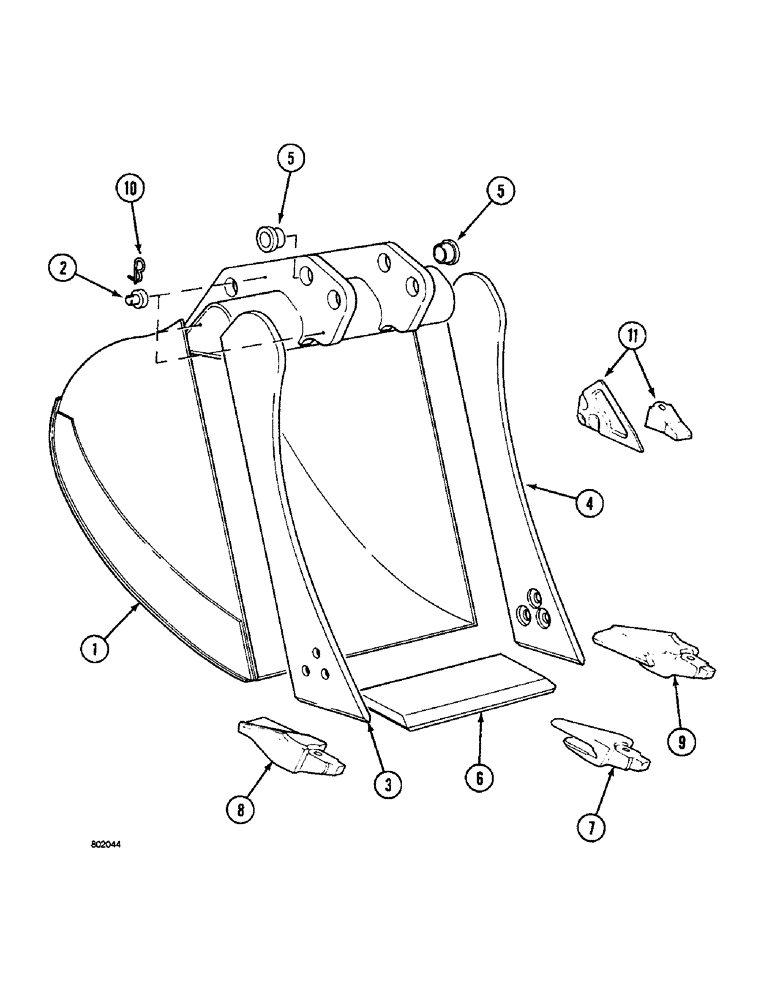

Запчасти Case 1088 (9G-06) - BACKHOE BUCKET (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
P755605
BACKHOE BUCKET ASSEMBLY - excavator, 39-1/2" wide, (See Figure Note)
1шт.
1
NSS
NOT SOLD SEPARAT
BACKHOE BUCKET - excavator, 39-1/2" wide, Includes: Ref. 1 - 10
1шт.
2
P50053
SHAFT LOCK
PIN - lock, bucket pin, backhoe 39-1/2" wide
3шт.
3
P4724214
STIFFENER
CUTTING EDGE - side, left-hand, (Casted type), backhoe bucket 39-1/2" wide
1шт.
3
P5824207
CUTTING EDGE - side, left-hand, (Matrix type), backhoe bucket 39-1/2" wide
1шт.
4
P4724215
STIFFENER
CUTTING EDGE - side, right-hand, (Casted type), backhoe bucket 39-1/2" wide
1шт.
4
P5824206
CUTTING EDGE - side, right-hand, (Matrix type), backhoe bucket 39-1/2" wide
1шт.
5
P5428739
BUSHING
- bucket pin, at arm and link to bucket, backhoe 39-1/2" wide
6шт.
P8754416
BLADE
CUTTING EDGE AND SHANK ASSEMBLY - bucket, (Casted type), (Order P2755676), backhoe 39-1/2" wide, Includes: Ref. 6 - 9
1шт.
6
NSS
NOT SOLD SEPARAT
CUTTING EDGE - bucket, backhoe 39-1/2" wide
1шт.
7
P604274
SUPPORT
SHANK - tooth, center, backhoe bucket 39-1/2" wide
2шт.
8
P1504052
SHANK, BUCKET TOOTH
SHANK - tooth, left-hand, (Casted type), backhoe bucket 39-1/2" wide
1шт.
9
P1504051
SHANK, BUCKET TOOTH
SHANK - tooth, right-hand, (Casted type), backhoe bucket 39-1/2" wide
1шт.
P2755676
EDGE, CUTTING
CUTTING EDGE AND SHANK ASSEMBLY - bucket, (Matrix type), backhoe 39-1/2" wide, Includes: Ref. 6 - 9
1шт.
6
NSS
NOT SOLD SEPARAT
CUTTING EDGE - bucket, backhoe 39-1/2" wide
1шт.
7
P604274
SUPPORT
SHANK - tooth, center, backhoe bucket 39-1/2" wide
2шт.
8
P1604049
SHANK, BUCKET TOOTH
SHANK - tooth, left-hand, (Matrix type), backhoe bucket 39-1/2" wide
1шт.
9
P1604048
SHANK, BUCKET TOOTH
SHANK - tooth, right-hand, (Matrix type), backhoe bucket 39-1/2" wide
1шт.
10
P36020
SPLIT PIN/SAFETY PIN
HAIR PIN - split, lock pin, backhoe bucket 39-1/2" wide
3шт.
11
REF
INSTRUCTION
TEETH AND SIDE CUTTING EDGES - bucket, (See Figure 9G-10), backhoe 39-1/2" wide
1шт.
P755606
BACKHOE BUCKET ASSEMBLY - excavator, 43-15/16" wide, (See Figure Note), Includes: Ref. 1- 10
1шт.
1
NSS
NOT SOLD SEPARAT
BACKHOE BUCKET - excavator, backhoe 43-15/16" wide
1шт.
2
P50053
SHAFT LOCK
PIN - lock, bucket pin, backhoe 43-15/16" wide
3шт.
3
P4724214
STIFFENER
CUTTING EDGE - side, left-hand, (Casted type), backhoe bucket 43-15/16" wide
1шт.
3
P5824207
CUTTING EDGE - side, left-hand, (Matrix type), backhoe bucket 43-15/16" wide
1шт.
4
P4724215
STIFFENER
CUTTING EDGE - side, right-hand, (Casted type), backhoe bucket 43-15/16" wide
1шт.
4
P5824206
CUTTING EDGE - side, right-hand, (Matrix type), backhoe bucket 43-15/16" wide
1шт.
5
P5428739
BUSHING
- bucket pin, at arm and link to bucket, backhoe 43-15/16" wide
6шт.
P8754417
BLADE
CUTTING EDGE AND SHANK ASSEMBLY - bucket, (Casted type), (Order P2755677), backhoe 43-15/16" wide, Includes: Ref. 6 - 9
1шт.
6
NSS
NOT SOLD SEPARAT
CUTTING EDGE - bucket, backhoe 43-15/16" wide
1шт.
7
P604274
SUPPORT
SHANK - tooth, center, backhoe bucket 43-15/16" wide
2шт.
8
P1504052
SHANK, BUCKET TOOTH
SHANK - tooth, left-hand, (Casted type), backhoe bucket 43-15/16" wide
1шт.
9
P1504051
SHANK, BUCKET TOOTH
SHANK - tooth, right-hand, (Casted type), backhoe bucket 43-15/16" wide
1шт.
P2755677
EDGE, CUTTING
CUTTING EDGE AND SHANK ASSEMBLY - bucket, (Matrix type), backhoe 43-15/16" wide, Includes: Ref. 6 and 7
1шт.
6
NSS
NOT SOLD SEPARAT
CUTTING EDGE - bucket, backhoe 43-15/16" wide
1шт.
7
P604274
SUPPORT
SHANK - tooth, center, backhoe bucket 43-15/16" wide
2шт.
8
P1604049
SHANK, BUCKET TOOTH
SHANK - tooth, left-hand, (Matrix type), backhoe bucket 43-15/16" wide, Includes: Ref. 9
1шт.
9
P1604048
SHANK, BUCKET TOOTH
SHANK - tooth, right-hand, (Matrix type), backhoe bucket 43-15/16" wide
1шт.
10
P36020
SPLIT PIN/SAFETY PIN
HAIR PIN - split, lock pin, backhoe bucket 43-15/16" wide
3шт.
11
REF
INSTRUCTION
TEETH AND SIDE CUTTING EDGES - bucket, (See Figure 9G-10), backhoe 43-15/16" wide
1шт.
Выбрано товаров: 40
