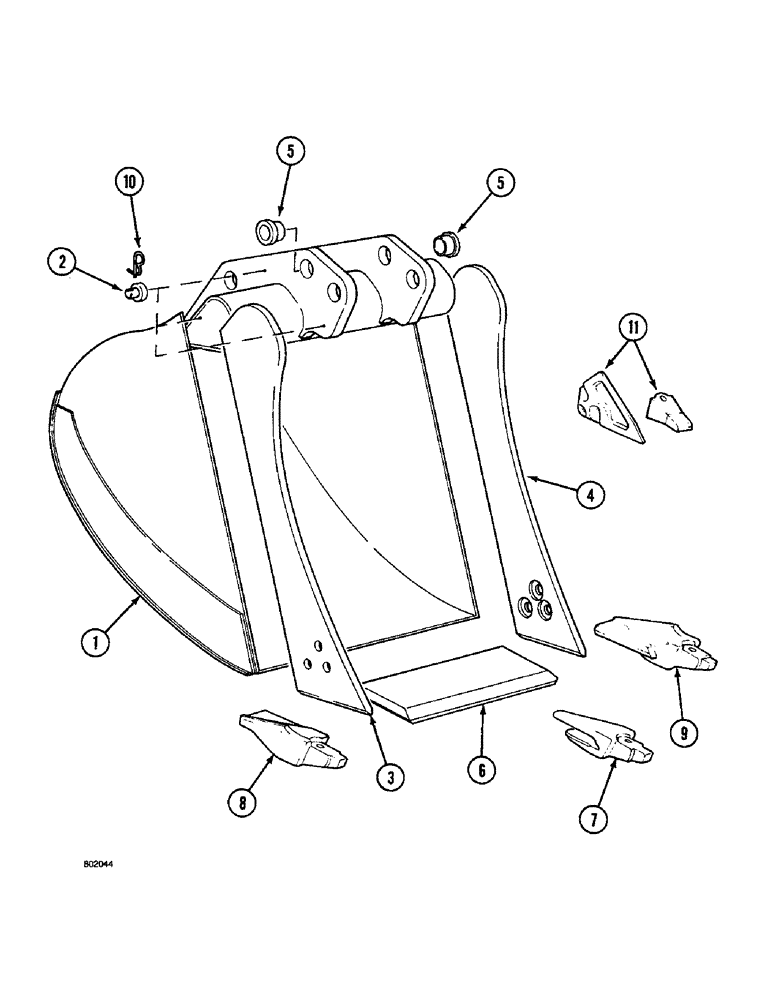

Запчасти Case 1088 (9G-02) - BACKHOE BUCKET (09) - CHASSIS/ATTACHMENTS

P755601

BACKHOE BUCKET ASSEMBLY - excavator, 23-5/8" wide, (See Figure Note), Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BACKHOE BUCKET - excavator, 23-5/8" wide

1шт.

2

P50053

SHAFT LOCK

PIN - lock, bucket pin, backhoe 23-5/8" wide

3шт.

3

P4724214

STIFFENER

CUTTING EDGE - side, left-hand, (Casted type), backhoe bucket 23-5/8"wide

1шт.

3

P5824207

CUTTING EDGE - side, left-hand, (Matrix type), backhoe bucket 23-5/8"wide

1шт.

4

P4724215

STIFFENER

CUTTING EDGE - side, right-hand, (Casted type), backhoe bucket 23-5/8"wide

1шт.

4

P5824206

CUTTING EDGE - side, right-hand, (Matrix type), backhoe bucket 23-5/8"wide

1шт.

5

P5428739

BUSHING

- bucket pin, at arm and link to bucket, backhoe 23-5/8" wide

6шт.

P8754412

BLADE

CUTTING EDGE AND SHANK ASSEMBLY - bucket, (Casted type), (Order P2755672), backhoe 23-5/8"wide, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

CUTTING EDGE - bucket, backhoe 23-5/8"wide

1шт.

7

P604274

SUPPORT

SHANK - tooth, center, backhoe bucket 23-5/8"wide

1шт.

8

P1504052

SHANK, BUCKET TOOTH

SHANK - tooth, left-hand, (Casted type), backhoe bucket 23-5/8"wide

1шт.

9

P1504051

SHANK, BUCKET TOOTH

SHANK - tooth, right-hand, (Casted type), backhoe bucket 23-5/8"wide

1шт.

P2755672

EDGE, CUTTING

CUTTING EDGE AND SHANK ASSEMBLY - bucket, (Matrix type), backhoe 23-5/8"wide, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

CUTTING EDGE - bucket, backhoe 23-5/8" wide

1шт.

7

P604274

SUPPORT

SHANK - tooth, center, backhoe bucket 23-5/8"wide

1шт.

8

P1604049

SHANK, BUCKET TOOTH

SHANK - tooth, left-hand, (Matrix type), backhoe bucket 23-5/8"wide

1шт.

9

P1604048

SHANK, BUCKET TOOTH

SHANK - tooth, right-hand, (Matrix type), backhoe bucket 23-5/8"wide

1шт.

10

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin, backhoe bucket 23-5/8"wide

3шт.

11

REF

INSTRUCTION

TEETH AND SIDE CUTTING EDGES - bucket, (See Figure 9G-10), backhoe 23-5/8" wide

1шт.

P755602

BACKHOE BUCKET ASSEMBLY - excavator, 29-1/2" wide, (See Figure Note), Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BACKHOE BUCKET - excavator, 29-1/2" wide

1шт.

2

P50053

SHAFT LOCK

PIN - lock, bucket pin, backhoe 23-1/2" wide

3шт.

3

P4724214

STIFFENER

CUTTING EDGE - side, left-hand, (Casted type), backhoe bucket 29-1/2" wide

1шт.

3

P5824207

CUTTING EDGE - side, left-hand, (Matrix type), backhoe bucket 29-1/2" wide

1шт.

4

P4724215

STIFFENER

CUTTING EDGE - side, right-hand, (Casted type), backhoe bucket 29-1/2" wide

1шт.

4

P5824206

CUTTING EDGE - side, right-hand, (Matrix type), backhoe bucket 29-1/2" wide

1шт.

5

P5428739

BUSHING

- bucket pin, at arm and link to bucket, backhoe 29-1/2"wide

6шт.

P8754413

BLADE

CUTTING EDGE AND SHANK ASSEMBLY - bucket, (Casted type), (Order P2755673), backhoe 29-1/2"wide, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

CUTTING EDGE - bucket, backhoe 29-1/2"wide

1шт.

7

P604274

SUPPORT

SHANK - tooth, center, backhoe bucket 29-1/2" wide

1шт.

8

P1504052

SHANK, BUCKET TOOTH

SHANK - tooth, left-hand, (Casted type), backhoe bucket 29-1/2" wide

1шт.

9

P1504051

SHANK, BUCKET TOOTH

SHANK - tooth, right-hand, (Casted type), backhoe bucket 29-1/2" wide

1шт.

P2755673

EDGE, CUTTING

CUTTING EDGE AND SHANK ASSEMBLY - bucket, (Matrix type), backhoe 29-1/2"wide, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

CUTTING EDGE - bucket, backhoe 29-1/2"wide

1шт.

7

P604274

SUPPORT

SHANK - tooth, center, backhoe bucket 29-1/2" wide

1шт.

8

P1604049

SHANK, BUCKET TOOTH

SHANK - tooth, left-hand, (Matrix type), backhoe bucket 29-1/2" wide

1шт.

9

P1604048

SHANK, BUCKET TOOTH

SHANK - tooth, right-hand, (Matrix type), backhoe bucket 29-1/2" wide

1шт.

10

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin, backhoe bucket 29-1/2" wide

3шт.

11

REF

INSTRUCTION

TEETH AND SIDE CUTTING EDGES - bucket, (See Figure 9G-10), backhoe 29-1/2"wide

1шт.
