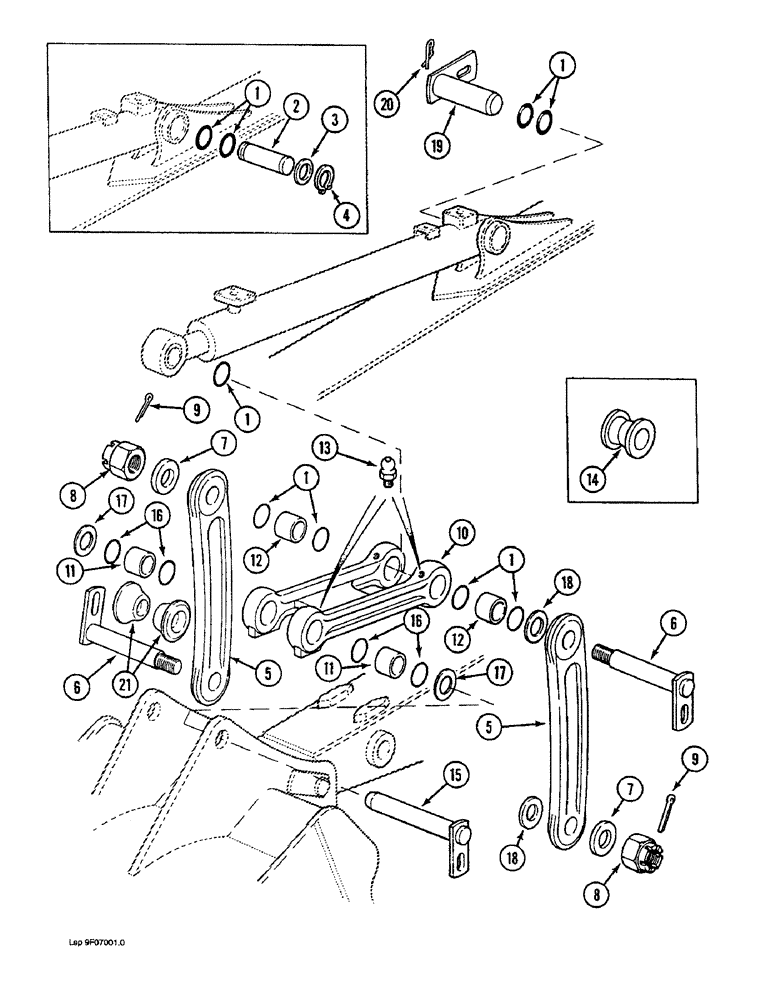

Запчасти Case 1088 (9F-08) - TOOL CYLINDER LINKS (09) - CHASSIS/ATTACHMENTS

1

P151310

SEAL

- cylinder pin and link

8шт.

2

P6027812

PIN

- tool cylinder to arm, base end, (If used)

1шт.

3

P745341

WASHER

- special, (If used)

1шт.

4

P36331

RING, SNAP

SNAP RING - tool cylinder pin, (If used)

2шт.

5

P704205

LINKAGE YOKE

LINK -, Serial Range: cylinder-arm

2шт.

6

P3430955

HEADED PIN

PIN - cylinder links to cylinder and arm, (Replaces P2930954)

2шт.

7

P34629

WASHER

- special, link pin to cylinder arm

2шт.

8

P34338

NUT

- hex, slotted

2шт.

9

P35559

SPLIT PIN

COTTER PIN - 8 mm x 100 mm long

2шт.

P755647

ROD, CONNECTING

LINK ASSEMBLY - cylinder to attachment, (See T.I.N. 3302), Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

LINK -, Serial Range: cylinder-attachment

1шт.

11

P5728774

BUSHING

- link, bucket pin, (Replaces P5428717)

2шт.

12

P5728787

BUSHING

- link, cylinder pin, (Replaces P5428751)

2шт.

13

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

4шт.

14

P1929070

SPACER

- cylinder link, (Order 2-spacer P704219)

1шт.

15

P3430956

HEADED PIN

PIN - cylinder link to bucket, (Replaces P2930926)

1шт.

16

P8046023

SEAL

- bucket link pin

4шт.

17

P3145325

WASHER

- special, link assembly to bucket pin

2шт.

18

P3145354

WASHER

- special, link pin to arm and link assembly, 71 mm x 140 mm x 1 mm

1шт.

18

P745341

WASHER

- special, link pin to arm and link assembly, 71 mm x 140 mm x 2 mm

1шт.

19

P3430945

HEADED PIN

PIN - tool cylinder to arm, base end, (If used), (Replaces P2930935)

1шт.

20

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin, (If used)

1шт.

21

P704219

SPACER

- cylinder link, (Replaces P1929070)

2шт.
