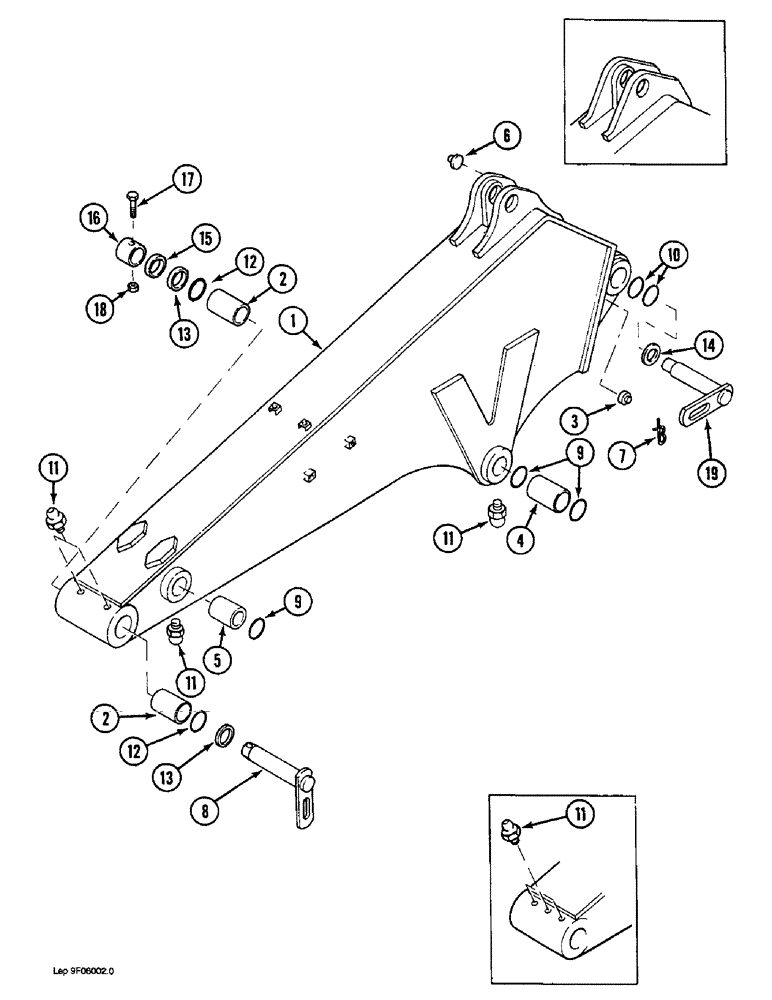

Запчасти Case 1088 (9F-04) - ARM AND MOUNTING PINS, WITH 2.20 M ARM (09) - CHASSIS/ATTACHMENTS

P755643

ARM

ASSEMBLY - excavator, 2.20 m long, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

ARM - excavator

1шт.

2

P5428717

BUSHING

- pin, Serial Range: arm-bucket

2шт.

3

P50053

SHAFT LOCK

PIN - lock, cylinder pin, Serial Range: welded-arm

1шт.

4

P1928655

BUSHING

- pin, Serial Range: arm-boom

2шт.

5

P5728781

BUSHING

- pin, link to arm, (Replaces P5428748)

2шт.

6

P227803

SHAFT LOCK

PIN - lock, cylinder pin welded to tool, (If used)

1шт.

7

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

1шт.

8

P3430954

HEADED PIN

PIN - mounting, arm to bucket, (Replaces P2930967)

1шт.

9

P151310

SEAL

- grease, bushing

6шт.

10

P151311

SEAL

- grease, mounting pin

2шт.

11

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, (Qty. 6-7) M10 x 1

1шт.

12

P8046023

SEAL

- grease, bushing

2шт.

13

P3145325

WASHER

- special, arm to bucket pin, 71 mm x 150 mm x 2 mm

1шт.

13

P3145355

WASHER

- special, arm to bucket pin, 71 mm x 150 mm x 1 mm

1шт.

14

P745342

WASHER

- special, arm cylinder pin, 81 mm x 160 mm x 2 mm

1шт.

14

P3145356

WASHER - special, arm to cylinder pin, 81 mm x 160 mm x 1 mm

1шт.

15

P745341

WASHER

- special

1шт.

16

P5428764

BUSHING

RETAINER - pin

1шт.

17

P33850

SCREW

BOLT - hex, 14 mm x 120 mm

1шт.

18

P134549

SAFETY NUT

NUT - hex, self-locking, 14 mm

1шт.

19

P3430952

HEADED PIN

PIN - mounting, arm to cylinder, (Replaces P2930927)

1шт.
