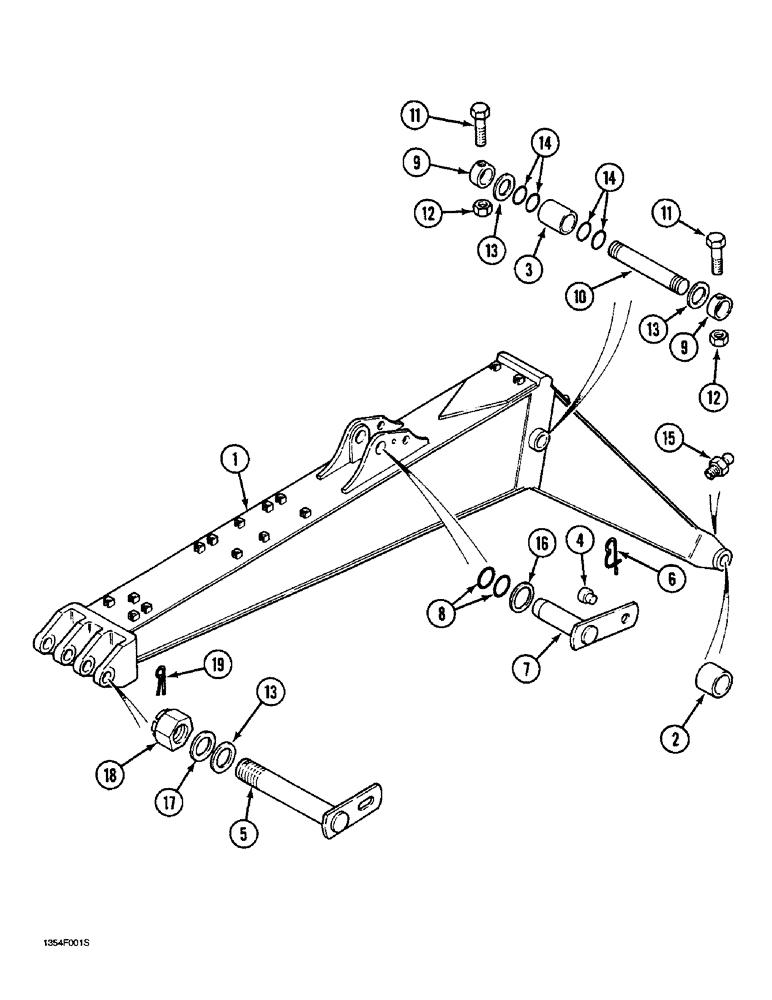

Запчасти Case 1088 (9F-02) - 5.40 M BOOM AND CYLINDER MOUNTING PINS (09) - CHASSIS/ATTACHMENTS

P755633

BOOM

ASSEMBLY - excavator, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BOOM - excavator

1шт.

2

P1928655

BUSHING

- boom, at turntable

2шт.

3

P5728768

BUSHING

- boom, at upper cylinder mounting, (Replaces P5428709)

2шт.

4

P50053

SHAFT LOCK

PIN - lock, arm cylinder pivot pin, Serial Range: welded-boom

1шт.

5

P3430951

HEADED PIN

PIN - mounting, arm to boom, (Replaces P2930966, P3430912)

1шт.

6

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

1шт.

7

P3430952

HEADED PIN

PIN - mounting, arm cylinder to boom, (Replaces P2930927)

1шт.

8

P151311

SEAL

- grease, bushing, at arm cylinder mounting bracket

2шт.

9

P5428764

BUSHING

RETAINER - pin

2шт.

10

P1827680

PIN

- boom cylinders to boom, (Replaces P1827669)

2шт.

11

P33850

SCREW

BOLT - hex, 14 mm x 120 mm

2шт.

12

P134549

SAFETY NUT

NUT - hex, self-locking, 14 mm

2шт.

13

P745341

WASHER

- special, boom pin, 71 mm x 140 mm x 2 mm

1шт.

13

P3145354

WASHER

- special, boom pin, 71 mm x 140 mm x 1 mm

1шт.

14

P151310

SEAL

- grease, bushing

4шт.

15

933781R1

LUBE NIPPLE,M10 x 1

BRACKET - panel, window right-hand side

2шт.

16

P745342

WASHER

- special, cylinder pin, 81 mm x 160 mm x 2 mm

1шт.

16

P3145356

WASHER - special, cylinder pin, 81 mm x 160 mm x 1 mm

1шт.

17

P34629

WASHER

- special, pin, Serial Range: arm-boom

1шт.

18

P34338

NUT

- hex, slotted

1шт.

19

P35559

SPLIT PIN

COTTER PIN - 8 mm x 100 mm long

1шт.

P1604069

JIB HEAD SECTION

weldment for boom, area where ref. 5, 13, 17, 18 and 19 go through, check European system for stock

1шт.
