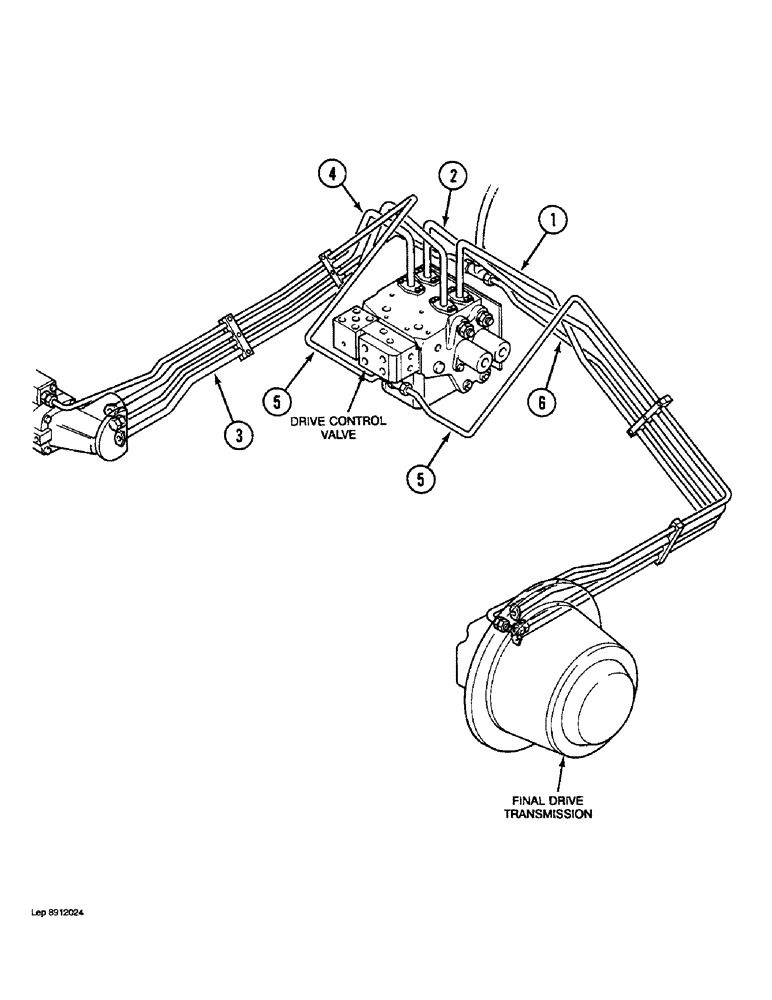

Запчасти Case 1088 (1-36) - PICTORIAL INDEX, UNDERCARRIAGE HYDRAULIC SYSTEM (00) - PICTORIAL INDEX

1

Tube, Drive Control Valve to Right-Hand Drive Motor, Lower Port, Page 7-10

1шт.

2

Tube, Drive Control Valve to Right-Hand Drive Motor, Upper Port, Page 7-10

1шт.

3

Tube, Drive Control Valve to Left-Hand Drive Motor, Lower Port, Page 7-10

1шт.

4

Tube, Drive Control Valve to Left-Hand Drive Motor, Upper Port, Page 7-10

1шт.

5

Tubes, Brake Release, Drive Motors to Brake Release Valve, Page 7-10

1шт.

6

Tubes, Leak Return, Drive Motors to Tee, (See page 1-34 for continuation), Page 7-10

1шт.
