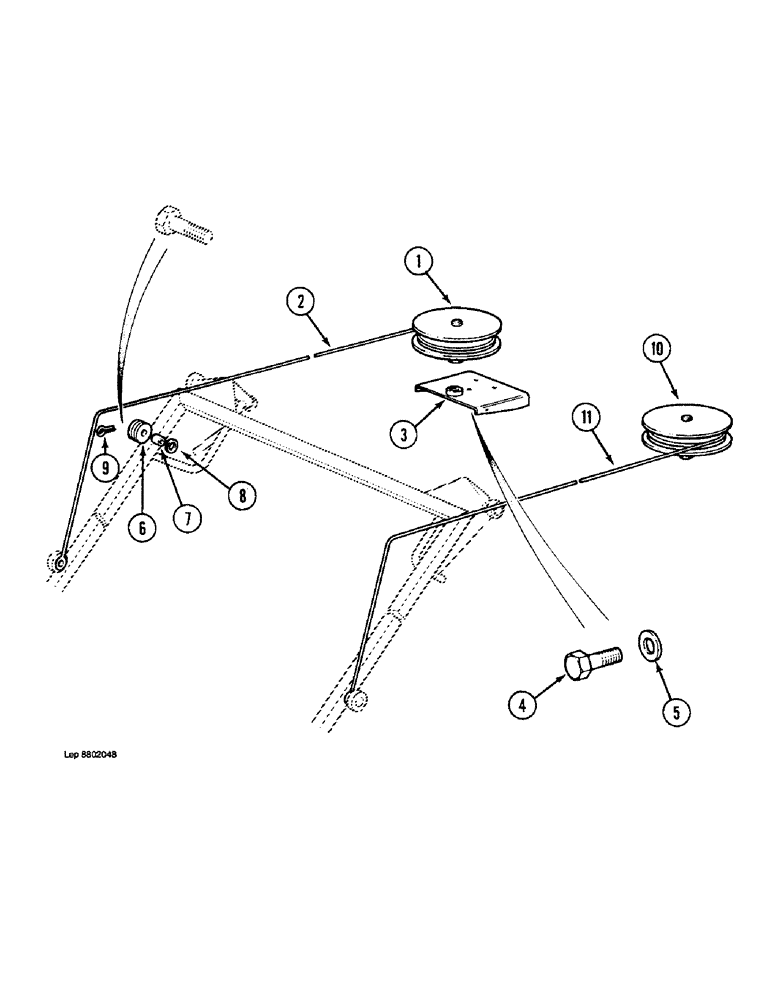

Запчасти Case 1088 (9E-24) - WINDSHIELD OPENING PARTS (09) - CHASSIS/ATTACHMENTS

P8443828

CAB

LE AND SPRING ASSEMBLY - excavator, Includes: Ref. 1 - 11

1шт.

1

P5242727

CABLE WINDER

CABLE AND SPRING ASSEMBLY - windshield opening, right-hand, Includes: Ref. 2

1шт.

2

P9847252

CABLE

- windshield opening

1шт.

3

P4127158

SUPPORT

BRACKET - moungint, cable and spring

2шт.

4

P733029

SCREW

BOLT - hex, 8 mm x 30 mm, full thread, mounting bracket

4шт.

5

P3528794

WASHER

SPACER - 6 mm thick, bracket bolt

4шт.

6

P538589

PULLEY

- windshield cable

2шт.

7

P29299

SELF LUB RING

BUSHING - cable pulley

2шт.

8

P35003

WASHER

- flat, 10 mm cable pulley, (Replaces P34611)

2шт.

9

P35512

SPLIT PIN

COTTER PIN - 2 mm x 30 mm, cable pulley

2шт.

10

P5242728

CABLE WINDER

CABLE AND SPRING ASSEMBLY - windshield opening, left-hand, Includes: Ref. 11

1шт.

11

P9847252

CABLE

- windshield opening

1шт.
