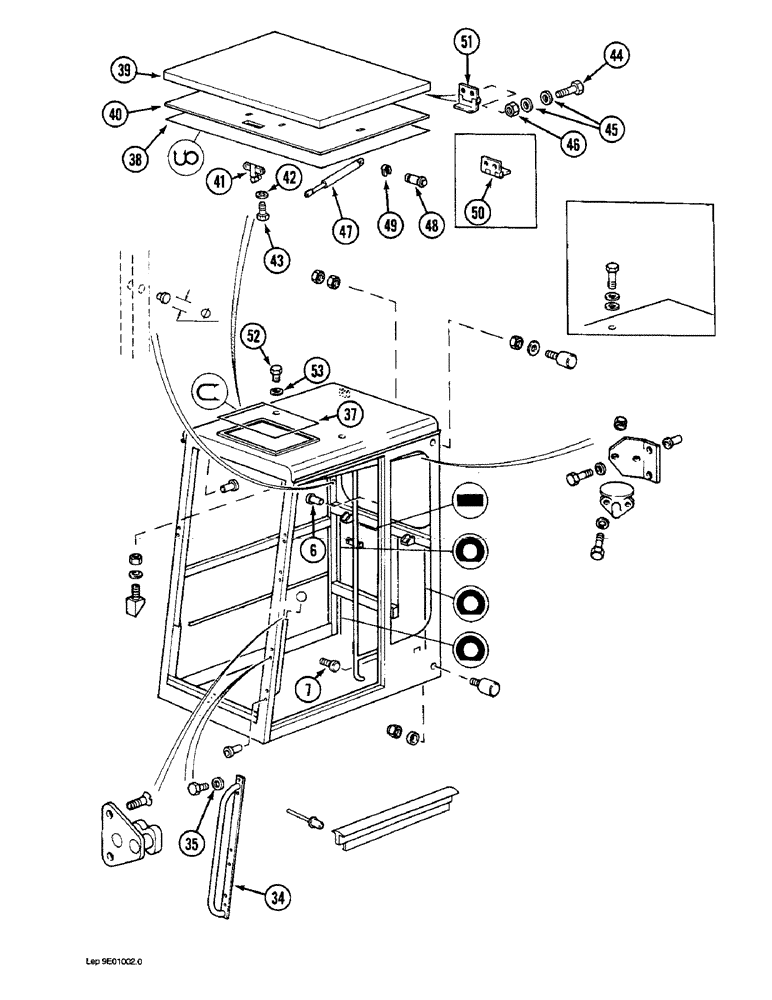

Запчасти Case 1088 (9E-08) - CAB, CAB FRAME AND RELATED PARTS, P.I.N. FROM XXXXX AND AFTER, P.I.N. FROM 106901 AND AFTER (09) - CHASSIS/ATTACHMENTS

P8443828

CAB

ASSEMBLY - excavator, (Continued from Figure 9E-6), Includes: Ref. 34 - 53

1шт.

34

P4247989

HANDLE

- cab access

1шт.

35

P3528799

WASHER

- flat, 4 mm thick

6шт.

37

REF

INSTRUCTION

SEAL - cab roof to panel, 82-3/4" long, cut from P303112

1шт.

38

REF

INSTRUCTION

SEAL - at roof panel, 82-3/4" long, cut from P303167

1шт.

39

P8443834

HATCH

PANEL - roof, access cover

1шт.

40

P4241478

CLOTHES

INSULATION - access cover

1шт.

41

P1352049

LOCK

LATCH - panel open

1шт.

42

P35001

WASHER

- flat, 6 mm

2шт.

43

P32621

SCREW

BOLT - hex, 6 mm x 16 mm

2шт.

44

P32610

SCREW

BOLT - hex, 4 mm x 16 mm, Serial Range: XXXXX-XXXXX

4шт.

44

P32610

SCREW

BOLT - hex, 4 mm x 16 mm, Serial Range: 106901-XXXXX

4шт.

44

P32621

SCREW

BOLT - hex, 6 mm x 16 mm, Start Serial: XXXXX

4шт.

45

P34603

WASHER

- flat, 4 mm, Serial Range: XXXXX-XXXXX

8шт.

45

P34603

WASHER

- flat, 4 mm, Serial Range: 106901-XXXXX

8шт.

45

P35001

WASHER

- flat, 6 mm, Start Serial: XXXXX

8шт.

46

P34107

NUT - hex, 4 mm, Serial Range: XXXXX-XXXXX

4шт.

46

P34107

NUT - hex, 4 mm, Serial Range: 106901-XXXXX

4шт.

46

P35425

RIVET

NUT - hex, 6 mm, Start Serial: XXXXX

4шт.

47

P3036997

GAS STRUT

GAS SPRING - panel control, adaption with Ref. 50, (If used)

2шт.

47

P3836915

GAS STRUT

GAS SPRING - panel control, adaption with Ref. 51, (If used)

2шт.

48

P6427819

PIN

- gas spring

4шт.

49

P1352050

SHAFT LOCK

CLIP - retainer

4шт.

50

P1352048

HINGE

- roof panel, (If used)

2шт.

51

P1136610

HINGE

- roof panel, (If used)

2шт.

52

P3337457

PLUG

- at cab top, Start Serial: XXXXX

2шт.

53

P4441448

WASHER

- plug, Start Serial: XXXXX

2шт.
