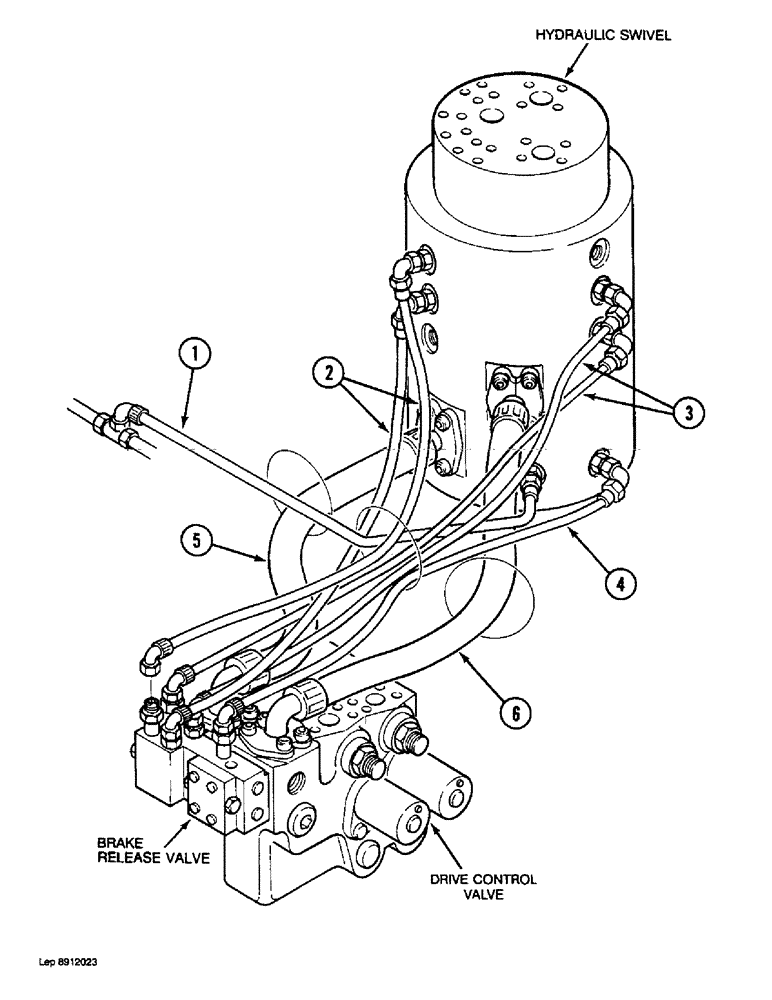

Запчасти Case 1088 (1-34) - PICTORIAL INDEX, UNDERCARRIAGE HYDRAULIC SYSTEM (00) - PICTORIAL INDEX

1

Hose, Leak Return to Hydraulic Swivel, (See page 1-36 for continuation), Pages 7-6, 7-8

1шт.

2

Hoses, Brake Release Valve to Hydraulic Swivel, Pages 7-6, 7-8

1шт.

3

Hoses, Brake Release Valve to Hydraulic Swivel, Pages 7-6, 7-8

1шт.

4

Hose, Brake Release Valve to Hydraulic Swivel, Pages 7-6, 7-8

1шт.

5

Hose, Return Drive Control Valve to Hydraulic Swivel, Pages 7-6, 7-8

1шт.

6

Hose, Pressure Drive Control Valve to Hydraulic Swivel, Pages 7-6, 7-8

1шт.
