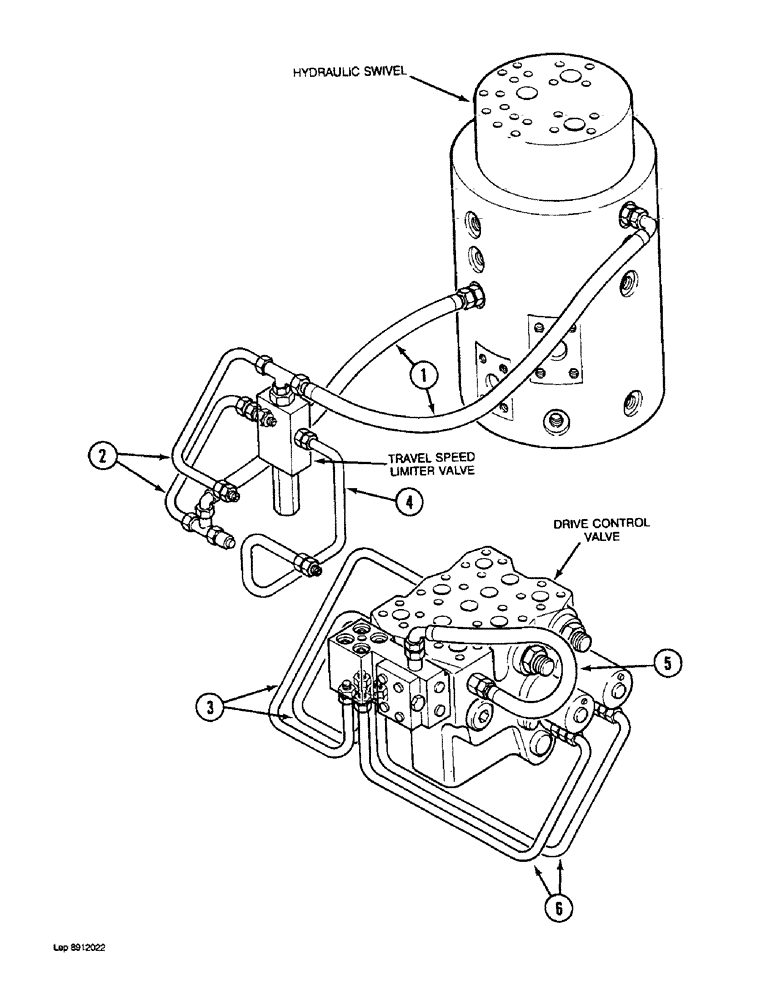

Запчасти Case 1088 (1-32) - PICTORIAL INDEX, UNDERCARRIAGE HYDRAULIC SYSTEM (00) - PICTORIAL INDEX

1

Hoses, Hydraulic Swivel to Travel Speed Limiter Valve, Pages 7-2, 7-3A, 7-4, 7-5A

1шт.

2

Tubes, At Travel Speed Limiter Valve, Pages 7-2, 7-4

1шт.

3

Tubes, Brake Release Valve, Left-Hand Side, Pages 7-2, 7-3A, 7-4, 7-5A

1шт.

4

Tube, Travel Speed Limiter to Drive Control Valve, Pages 7-2, 7-4

1шт.

5

Hose, Drive Control Valve to Brake Release Valve, Pages 7-2, 7-3A, 7-4, 7-5A

1шт.

6

Tubes, Brake Release Valve, Right-Hand Side, Pages 7-2, 7-3A, 7-4, 7-5A

1шт.
