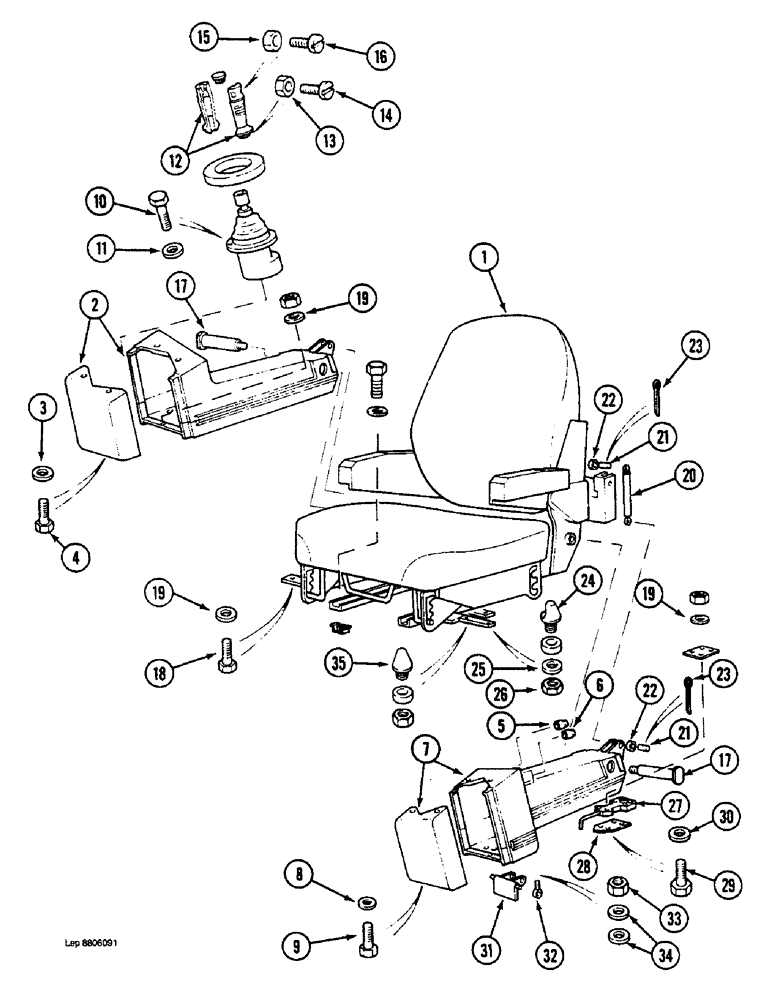

Запчасти Case 1088 (9D-12) - HAND CONTROL VALVE CONSOLES (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT ASSEMBLY - operator's, (See Figure 9D-16 or 9D-18)

1шт.

2

P5242763

CASE

HOUSING ASSEMBLY - console right-hand, Includes: Ref. 3 and 4

1шт.

3

P35001

WASHER

- flat, 6 mm

1шт.

4

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

5

P1737419

PLUG

- plastic, left-hand console

2шт.

6

P1737425

PLASTIC PLUG

PLUG - plastic, left-hand console

2шт.

7

P5242764

CASE

HOUSING ASSEMBLY - console, left-hand, Includes: Ref. 8 and 9

1шт.

8

P35001

WASHER

- flat, 6 mm

1шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

10

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

8шт.

11

P34607

WASHER

- flat, 6 mm

8шт.

12

P152069

HANDLE

- half

4шт.

13

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

14

P32549

SCREW

- handle, lower, 6 mm x 16 mm

4шт.

15

P34107

NUT - hex, 4 mm

4шт.

16

P32530

SCREW

- handle, upper, 4 mm x 10 mm

4шт.

17

P1027977

PIN

- pivot

2шт.

18

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

2шт.

19

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

20

P1436931

CYLINDER ASSY.

SHOCK ABSORBER - left-hand console

1шт.

21

P827645

PIN

- shock absorber

2шт.

22

P35001

WASHER

- flat, 6 mm

4шт.

23

P35510

SPLIT PIN

COTTER PIN - 2 mm x 20 mm

4шт.

24

P152075

CONE

RETAINER - latch

1шт.

25

P34611

WASHER

- latch retainer mounting

1шт.

26

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

1шт.

27

P1352035

LOCK ASSY

LATCH - left-hand console

1шт.

28

P323672

HOOD

PLATE - mounting

1шт.

29

P733035

SCREW

BOLT - hex, 6 mm x 35 mm

4шт.

30

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

31

P852064

HANDLE

- latch

1шт.

32

P1027968

CLEVIS

CONNECTOR - at handle

1шт.

33

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

1шт.

34

P35002

WASHER

- flat, 8 mm

2шт.

35

P741463

STOP

BUMPER - left-hand console

1шт.
