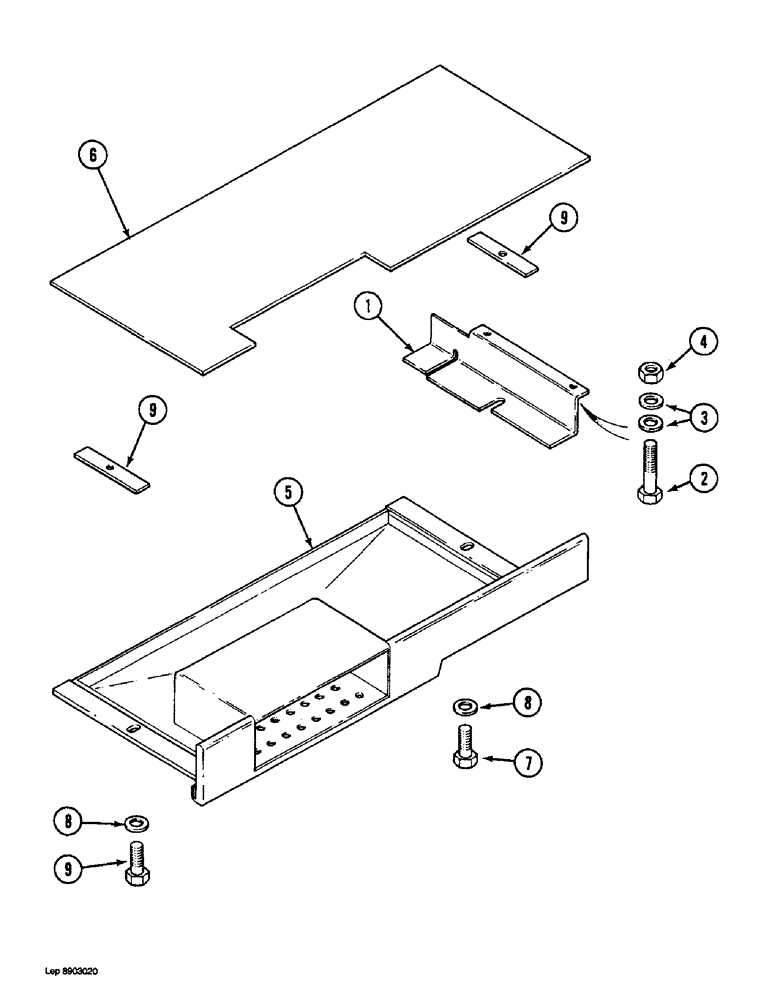

Запчасти Case 1088 (9D-10) - TURNTABLE LOWER ACCESS COVER (09) - CHASSIS/ATTACHMENTS

1

P3126328

HOOD

BRACKET - support, access cover

1шт.

2

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm

2шт.

3

P4328796

WASHER

SPACER - bolt, 7 mm thick

4шт.

4

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

5

P8143826

SPOOL

COVER - access, lower turntable

1шт.

6

P4441460

FOAM

INSULATION - cab floor, (Replaces P4241458)

1шт.

7

P933890

SCREW

BOLT - hex, 10 mm x 30 mm

2шт.

8

P4328796

WASHER

SPACER - bolt, 7 mm thick

2шт.

9

P6522793

PLATE

RETAINER - access cover

2шт.
