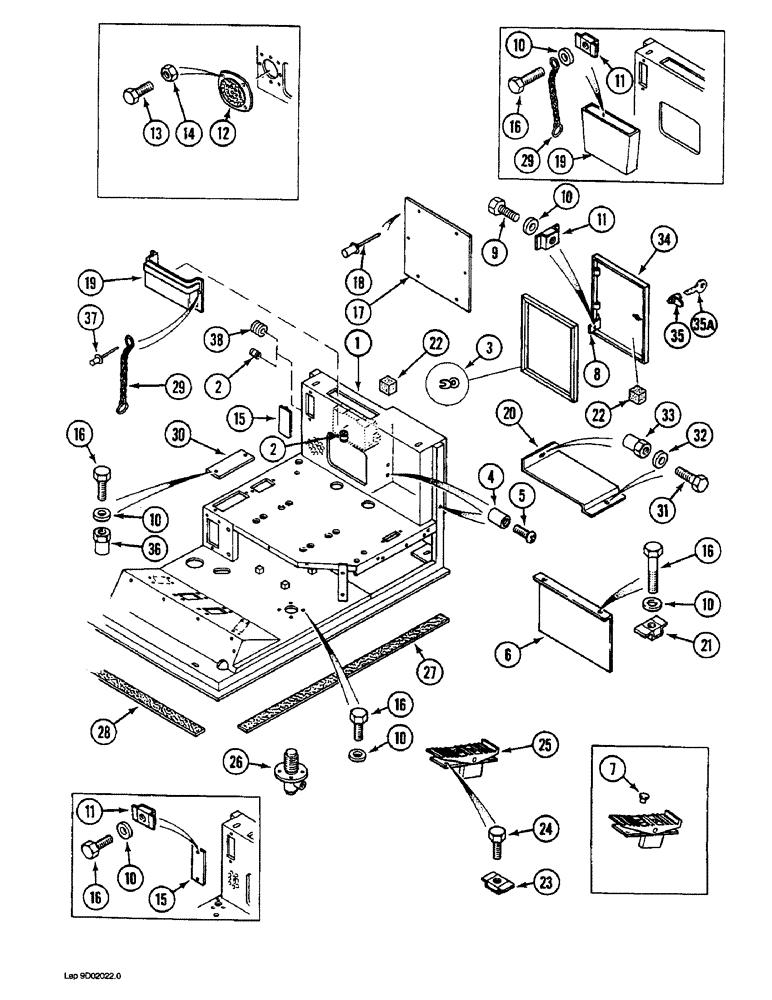

Запчасти Case 1088 (9D-06) - OPERATOR COMPARTMENT, ACCESS DOOR AND COVERS, P.I.N. FROM XXXXX & AFT., P.I.N. FROM 106901 & AFT. (09) - CHASSIS/ATTACHMENTS

1

P8143875

FLOOR

PLATFORM - mounting, seat and floor plate, (Includes Ref. 17 and 18)

1шт.

2

P1241417

GROMMET

- platform, electrical wiring, 12 mm diameter

1-2шт.

3

P2047038

WINDOW FRAME

SEAL - access door

1шт.

4

P1329965

STOP

- panel, (Replaces P1329946)

2шт.

5

P32530

SCREW

- slotted, 4 mm x 10 mm

2шт.

6

P4825672

HOOD

BRACKET - support, rear platform

1шт.

7

P3037430

PLASTIC PLUG

PLUG - valve assembly, plastic, (If used)

4шт.

8

P736695

FIXED HINGE

HINGE - access door

2шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

10

P3528799

WASHER

SPACER - bolt, 4 mm thick

16шт.

11

P1634573

NUT

- square, cage type

8шт.

12

P2340458

SIEVE

GRILLE - radio, (If used), Includes: Ref. 13 and 14

1шт.

13

P32428

SCREW

- slotted, 4 mm x 16 mm

4шт.

14

P34107

NUT - hex, 4 mm

4шт.

15

P3240442

LARGE PLATE

PLATE - cover, platform, (If used)

1шт.

16

P32621

SCREW

BOLT - hex, 6 mm x 16 mm

12шт.

17

P2023254

HOOD

COVER - access, platform

1шт.

18

P35418

RIVET

POP RIVET - 8 mm x 17 mm

6шт.

19

P7646231

BOX

- manual, Serial Range: XXXXX-20199

1шт.

19

P7646231

BOX

- manual, Serial Range: XXXXX-106902

1шт.

19

P3626323

BOX

- manual, Start Serial: 20200

1шт.

19

P3626323

BOX

- manual, Start Serial: 106903

1шт.

20

P3226189

DOOR COVER

BRACKET - support, rear platform, (Replaces P7428268)

1шт.

21

P1334574

NUT

- retainer, cage type

2шт.

22

REF

INSTRUCTION

SEAL - door, 1-1/8 inch long, cut from P3123, use P3578 adhesive for mounting

2шт.

23

P1334571

NUT

- square, cage type

8шт.

24

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

8шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, (See Figure 8D-14)

2-3шт.

26

P4743537

PUMP, HYDRAULIC

PUMP ASSEMBLY - foot, control circuit, (See Figure 8D-6), hydraulic circuit, (Replaces P2843549)

1шт.

27

REF

INSTRUCTION

SEAL - platform, 61-1/4 inch long, cut from P3128, use P3578 adhesive for mounting

2шт.

28

REF

INSTRUCTION

SEAL - platform, 34-7/8 inch long, cut from P3128, use P3578 adhesive for mounting

2шт.

29

P2631335

CHAIN (AG)

CHAIN - manual

1шт.

30

P3122883

LARGE PLATE

PLATE - cover, platform

1шт.

31

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

2шт.

32

P3528794

WASHER

SPACER - bolt, 6 mm thick

2шт.

33

P35448

RIVET

RETAINER - bolt, sleeve type, (Replaces P35449)

2шт.

34

P7043893

DOOR

- access, electrical circuit board

1шт.

35

P1352032

LOCK ASSY

LOCK - access door, Includes: Ref. 35A

1шт.

35a

P1352009

KEY

- lock

2шт.

P1352009 Key, is a set of 2 keys. 1 = 2 keys.

1шт.

36

P1634573

NUT

RETAINER - bolt, sleeve type

2шт.

37

P35418

RIVET

POP RIVET - 8 mm x 17 mm, box manual, Start Serial: 20200

3шт.

37

P35418

RIVET

POP RIVET - 8 mm x 17 mm, box manual, Start Serial: 106903

3шт.

38

P1541420

GROMMET - platform - 16 mm diameter

1шт.
