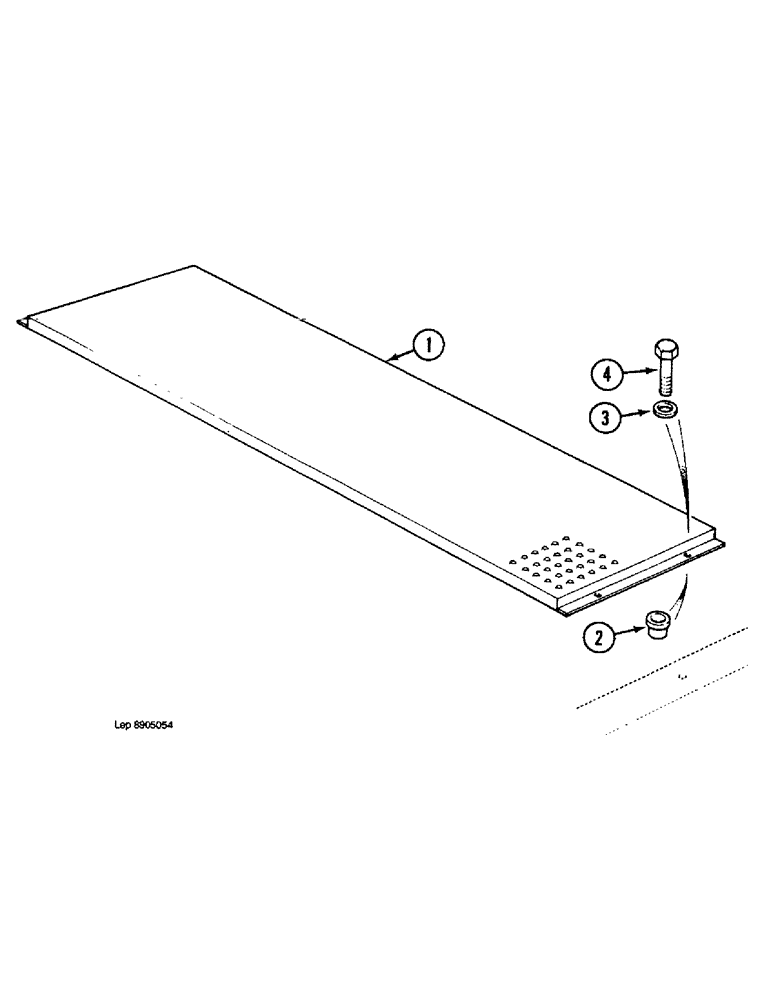

(9C-8) - OPERATOR PLATFORM, P.I.N. FROM XXXXX AND AFTER, P.I.N. FROM 106901 AND AFTER

Запчасти Case 1088 (9C-8) - OPERATOR PLATFORM, P.I.N. FROM XXXXX AND AFTER, P.I.N. FROM 106901 AND AFTER (09) - CHASSIS/ATTACHMENTS

Схема запчастей Case 1088 - (9C-8) - OPERATOR PLATFORM, P.I.N. FROM XXXXX AND AFTER, P.I.N. FROM 106901 AND AFTER (09) - CHASSIS/ATTACHMENTS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P8443835

WALKWAY

PLATFORM - operator walkway

1шт.

2

P234587

NUT

RETAINER - bolt, sleeve type, 8 mm, (Replaces P35449)

4шт.

3

P35002

WASHER

SPACER - bolt, 8 mm

4шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

4шт.
