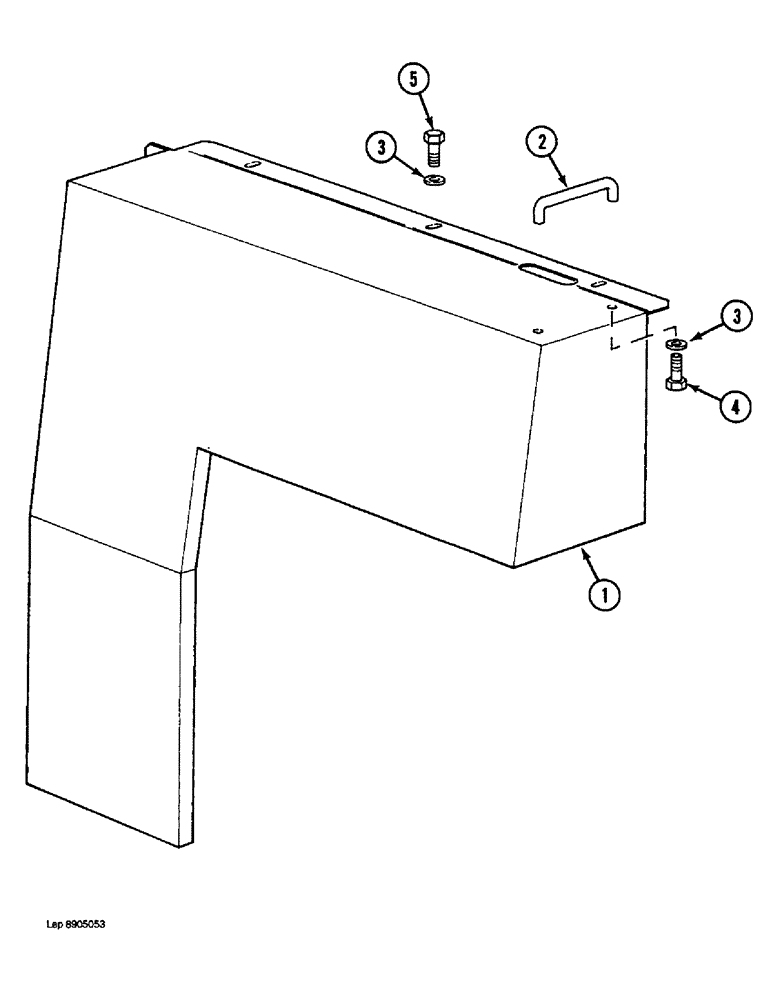

Запчасти Case 1088 (9C-4) - VALVE PANEL COVER (09) - CHASSIS/ATTACHMENTS

1

P3126334

COWL

PANEL - access and cover, valve

1шт.

1

P3626322

COWL

PANEL - access and cover, valve (See Figure Note), Start Serial: 20188

1шт.

1

P3626322

COWL

PANEL - access and cover, valve (See Figure Note), Start Serial: 106901

1шт.

2

P1352041

HANDLE

- cover lift

2шт.

3

P3528794

WASHER

SPACER - bolt, 6 mm thick

9шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

4шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

5шт.
