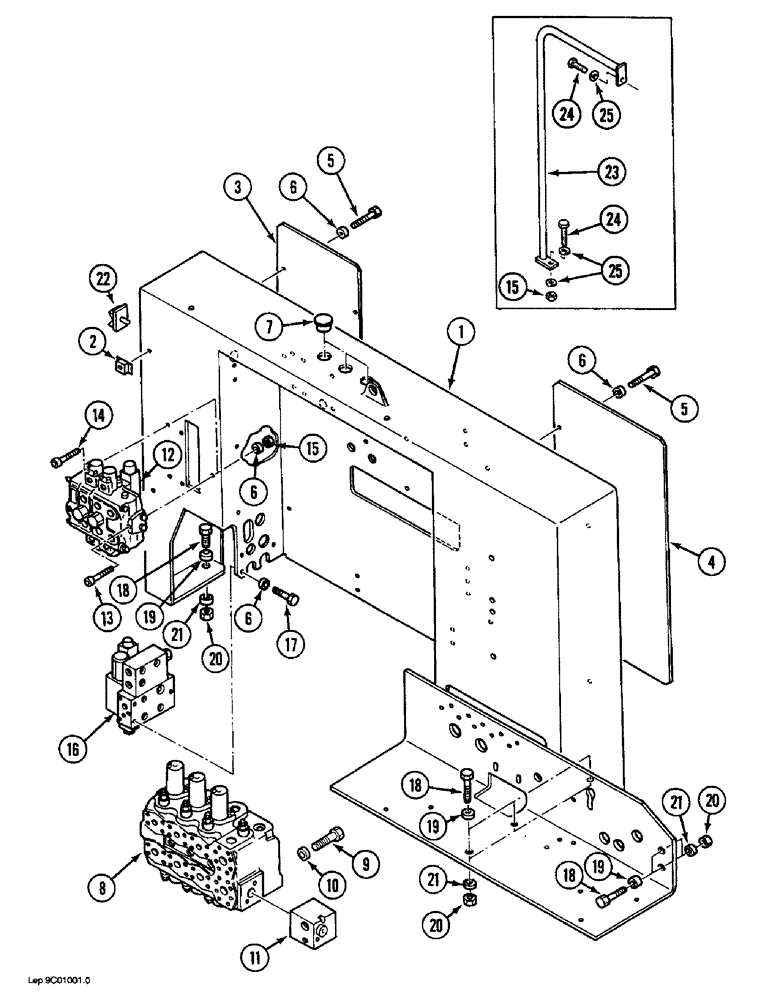

Запчасти Case 1088 (9C-2) - VALVE MOUNTING PANEL (09) - CHASSIS/ATTACHMENTS

1

P1555672

PARTITION

PANEL - valve mounting, (Replaces P55610 and P555674)

1шт.

2

P35449

RIVET

RETAINER - bolt, sleeve type

14шт.

3

P4823402

HOOD

PLATE - cover, right-hand side

1шт.

4

P4823403

HOOD

PLATE - cover, left-hand side

1шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

8шт.

6

P3528794

WASHER

SPACER - bolt, 6 mm thick

12шт.

7

P2537479

PLASTIC PLUG

PLUG - plastic, panel

3шт.

8

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, (See Figures 8C-12 and 8C-14)

1шт.

9

P33840

SCREW

BOLT - hex, 12 mm x 30 mm

3шт.

10

P3528793

WASHER

SPACER - bolt, 8 mm thick

3шт.

11

REF

INSTRUCTION

BLOCK ASSEMBLY - attachment control valve, (See Figures 8C-16 and 8C-18)

1шт.

12

REF

INSTRUCTION

VALVE ASSEMBLY - swing control, (See Figures 8C-26 and 8C-28)

1шт.

13

P32928

SCREW

BOLT - hex socket, 8 mm x 75 mm

1шт.

14

P32927

SCREW

BOLT - hex socket, 8 mm x 50 mm

2шт.

15

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

3шт.

16

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid and swing brake release, (See Page 8C-16)

1шт.

17

P32922

SCREW

BOLT - hex socket, 8 mm x 25 mm

3шт.

18

P33866

SCREW

BOLT - hex, 20 mm x 75 mm

7шт.

19

P4328747

WASHER

SPACER - bolt, 14 mm thick

6шт.

20

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

7шт.

21

P5428789

WASHER

SPACER - bolt, 7 mm thick, (Replaces P4628732)

8шт.

22

P3036926

BASE

RETAINER - harness strap

7шт.

23

P4247976

GRAB RAIL

HANDLE - platform access, (If used)

1шт.

24

P133884

SCREW

BOLT - hex, 8 mm x 35 mm, (If used)

2шт.

25

P4328795

WASHER

SPACER - bolt, 6 mm thick, (If used)

3шт.

26

P7928297

STIRRUP

BRACKET - operator compartment

1шт.
