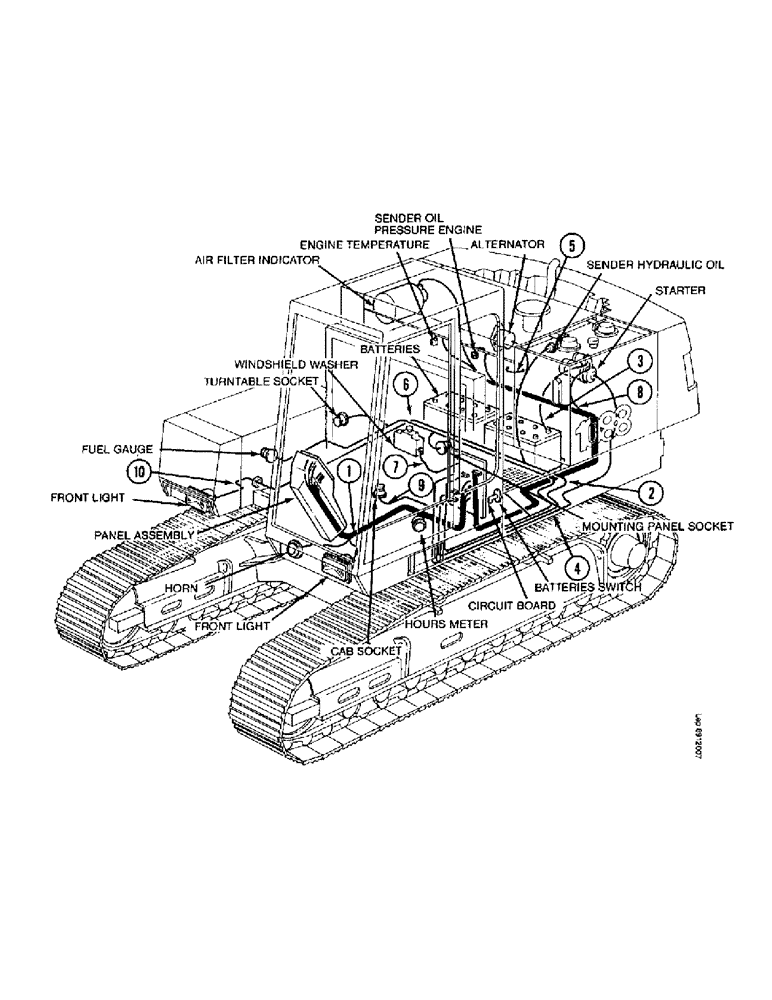

Запчасти Case 1088 (1-30) - PICTORIAL INDEX, ELECTRICAL SYSTEM (00) - PICTORIAL INDEX

1

Harness, Main, Instruments Panel to Circuit Board, Pages 4-16, 4-18

1шт.

2

Harness, Main, Turntable, Pages 4-8, 4-10, 4-12

1шт.

3

Harness, Main, Engine, Page 4-14

1шт.

4

Harness, Starter, Page 4-14

1шт.

5

Cable, Engine Ground, Page 4-14

1шт.

6

Cable, Batteries Ground, Page 4-44

1шт.

7

Harness, Windshield Washer, Page 4-20, 4-22

1шт.

8

Cable, Positive Battery Terminal to Starter, Page 4-14

1шт.

9

Harness, Cab to Harness Socket, Pages, 4-16, 4-18

1шт.

10

Harness, Circuit Board to Front Work Lamp, Page 4-50

1шт.
