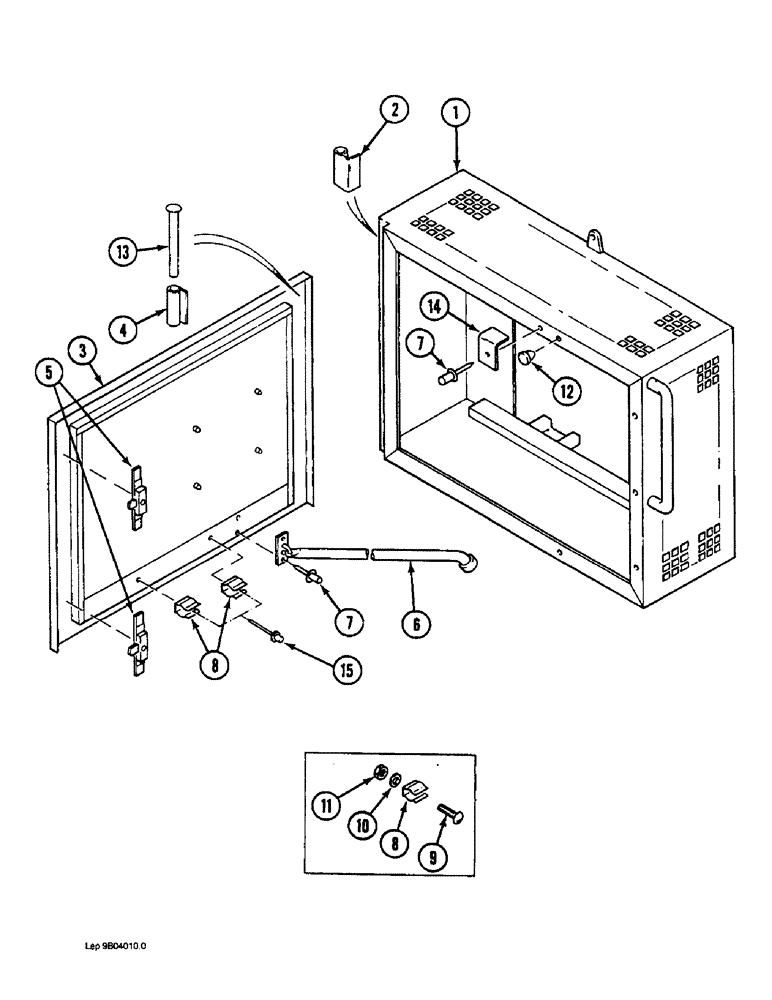

Запчасти Case 1088 (9B-10) - SUCTION BOX, P.I.N. FROM 20174 AND AFTER, P.I.N. FROM 106901 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

P8643844

ELECTRICAL CABINET

COMPARTMET - suction box, Includes: Ref. 2

1шт.

2

P1826855

FENDER

BRACKET - hinge

3шт.

P7828218

DOOR ASSY.

DOOR ASSEMBLY - compartment, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

DOOR - compartment

1шт.

4

P1826856

FENDER

BRACKET - hinge

3шт.

5

P343809

LATCH

- compartment door

2шт.

6

P736693

STAND

ROD - compartment door

1шт.

7

P35418

RIVET

POP RIVET - 4.8 mm x 17 mm

3шт.

8

P1736995

FASTENER

CLIP - support rod

2шт.

9

P32529

SCREW,Hex Soc Hd, M4 x 16

BOLT - hex, 4 mm x 16 mm

2шт.

10

P4328717

WASHER

SPACER - bolt, 3 mm thick

2шт.

11

P34107

NUT - hex, 4 mm

2шт.

12

P41467

STOP

PLUG - rubber, at compartment

5шт.

13

P6427859

PIN

- compartment assembly

3шт.

14

P5625629

LARGE PLATE

PLATE - suction box

1шт.

15

P35413

RIVET

POP RIVET - 4.8 mm x 16.5 mm

2шт.
