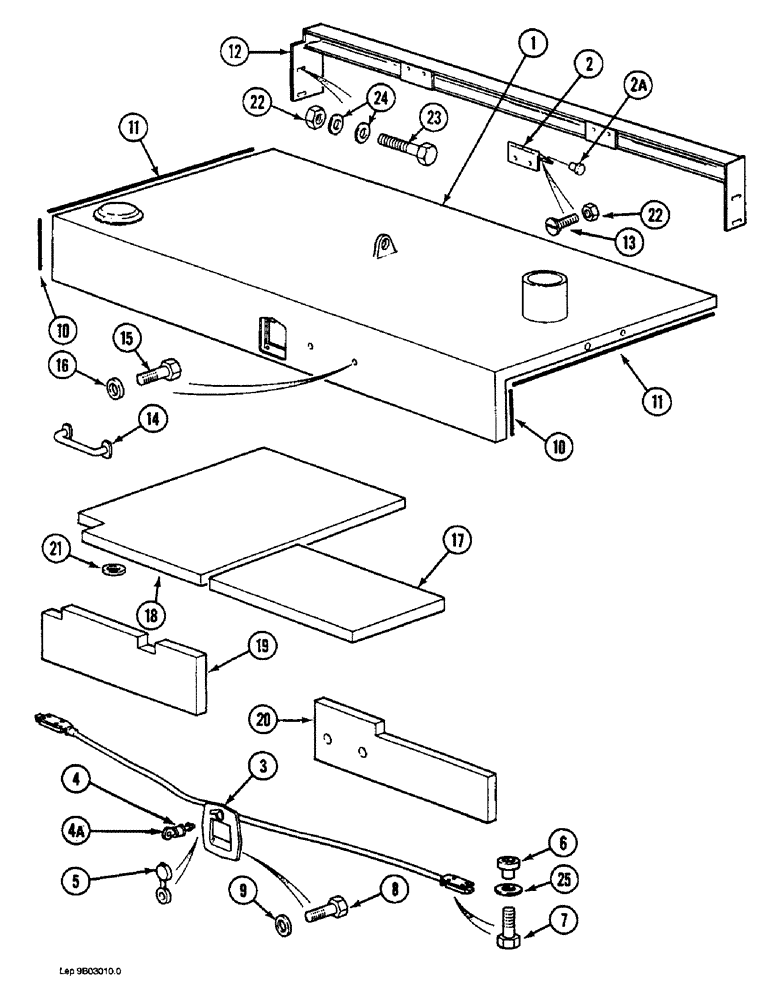

Запчасти Case 1088 (9B-08) - ENGINE UPPER ACCESS COVER, P.I.N. FROM 20214 AND AFTER, P.I.N. FROM 106906 AND AFTER (09) - CHASSIS/ATTACHMENTS

P8643880

COVER AND HINGE ASSEMBLY - engine upper access, (Replaces P8643834)

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - engine upper access

1шт.

2

P736667

HINGE

- cover, Includes: Ref. 2A

2шт.

2a

P3337440

PLUG

- plastic, grease

2шт.

P1352053

LOCK ASSY

LOCK ASSEMBLY - upper access cover, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

LOCK - upper access cover

1шт.

4

P152083

LOCK, CYLINDER

CYLINDER - lock

1шт.

4a

P1352009

KEY

- lock

2шт.

P1352009 Key, is a set of 2 keys. 1 = 2 keys.

1шт.

5

P2340499

DOOR COVER

PROTECTOR - cylinder

1шт.

6

P1334551

NUT

- hex, self-locking, 5 mm

8шт.

7

P433853

SCREW

BOLT - hex socket, 5 mm x 25 mm, (Replaces P1032901)

8шт.

8

P32621

SCREW

BOLT - hex, 6 mm x 16 mm

4шт.

9

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

10

REF

INSTRUCTION

SEAL - cover, 135 mm long, cut from P1303155

2шт.

11

REF

INSTRUCTION

SEAL - cover, 877 mm long, cut from P1303155

2шт.

12

P7828203

CROSSBAR

SUPPORT - cover to engine frame

1шт.

13

P32465

SCREW

- hinge, 10 mm

4шт.

14

P1352041

HANDLE

- cover lift

1шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

16

P3528794

WASHER

SPACER - bolt, 6 mm

2шт.

17

P4441463

FOAM

PAD - insulation, access cover, center

1шт.

18

P4441465

FOAM

PAD - insulation, access cover, right-hand

1шт.

19

P4441467

FOAM

PAD - insulation, access cover, front right-hand

1шт.

20

P4441468

FOAM

PAD - insulation, access cover, front left-hand

1шт.

21

P3036998

CLIP,ELECTRICAL

RETAINER -, Serial Range: pad-cover

8шт.

22

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

8шт.

23

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm

4шт.

24

P3528795

WASHER

SPACER - bolt, 7 mm thick

8шт.

25

P5428780

WASHER

SPACER - bolt, 3.25 mm thick

8шт.
