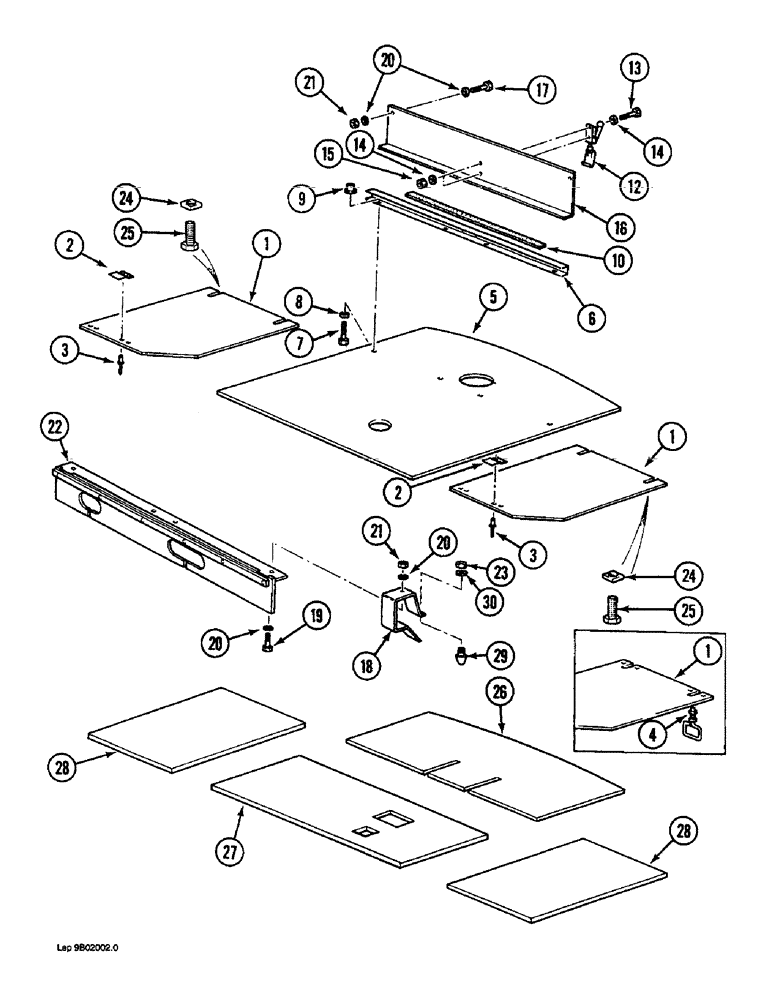

Запчасти Case 1088 (9B-04) - ENGINE LOWER COVERS (09) - CHASSIS/ATTACHMENTS

1

P8043840

PANEL

COVER - engine lower access, side, Includes: Ref. 2 and 3, Serial Range: 19801-20207

2шт.

1

P8043840

PANEL

COVER - engine lower access, side, Includes: Ref. 2 and 3, Serial Range: 106901-106902

2шт.

1

P8643840

PANEL

COVER - engine lower access, side, Includes: Ref. 2 and 3, Start Serial: 20208

2шт.

1

P8643840

PANEL

COVER - engine lower access, side, Includes: Ref. 2 and 3, Start Serial: 106903

2шт.

2

P2826165

CLIP,ELECTRICAL

CLIP - retainer, access cover

4шт.

3

P35446

RIVET

POP RIVET - 8 mm x 24 mm, Serial Range: clip-cover

8шт.

4

P852091

HANDLE

AND SPRING ASSEMBLY - cover retaining, Serial Range: 19801-20207

4шт.

4

P852091

HANDLE

AND SPRING ASSEMBLY - cover retaining, Serial Range: 106901-106902

4шт.

5

P8143841

LARGE PLATE

COVER - engine lower access, center, Includes: Ref. 6 - 10

1шт.

Ref# 5---in earlier cat. 8-3862, part number read p8443841,-p8143841, is the correct part number.

1шт.

6

P2125770

BRACKET

STIFFENER - cover

1шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

4шт.

8

P35020

WASHER

- flat

4шт.

9

P234587

NUT

RETAINER - bolt, sleeve type, 8 mm

4шт.

10

REF

INSTRUCTION

SEAL - access cover, 19-3/4 inch long, cut from P3127, fasten with P3578 adhesive

2шт.

12

P3036932

HOOK

LATCH ASSEMBLY - retainer, center cover

1шт.

13

P1033802

SCREW

BOLT - hex, 5 mm x 25 mm

2шт.

14

P4328718

WASHER

SPACER - bolt, 3.5 mm thick

4шт.

15

P834574

SAFETY NUT

NUT - hex, self-locking, 5 mm

2шт.

16

P5125677

SUPPORT

BRACKET - center access cover

1шт.

17

P933818

SCREW

BOLT - hex, 10 mm x 40 mm, full thread

2шт.

18

P3326383

SUPPORT

BRACKET - support, center lower access cover, (Replaces P3326355)

2шт.

19

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm, full thread

2шт.

20

P3528795

WASHER

SPACER - bolt, 7 mm thick

8шт.

21

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

22

P6828247

MUDFLAP

PROTECTOR - rubber, Serial Range: hose-frame

1шт.

23

P34113

NUT

- hex, 8 mm

2шт.

24

P1523469

PLATE

- cover retaining, Start Serial: 20208

4шт.

24

P1523469

PLATE

- cover retaining, Start Serial: 106903

4шт.

25

P733029

SCREW

BOLT - hex, 8 mm x 30 mm, full thread, Start Serial: 20208

4шт.

25

P733029

SCREW

BOLT - hex, 8 mm x 30 mm, full thread, Start Serial: 106903

4шт.

26

P4441451

FOAM

PAD - insulation, center lower access cover, rear portion, (Replaces P3841473)

1шт.

27

P4441466

FOAM

PAD - insulation, center lower access cover, front portion, (Replaces P3841474 and P4441411)

1шт.

28

P4441450

FOAM

PAD - insulation, side lower access covers, (Replaces P3841475)

2шт.

29

P741463

STOP

- rubber, bracket

2шт.

30

P35002

WASHER

- flat

2шт.
