(9A-10) - ENGINE INSULATOR, P.I.N. FROM 19801 TO 20213, P.I.N. FROM 106901 TO 106905

Запчасти Case 1088 (9A-10) - ENGINE INSULATOR, P.I.N. FROM 19801 TO 20213, P.I.N. FROM 106901 TO 106905 (09) - CHASSIS/ATTACHMENTS

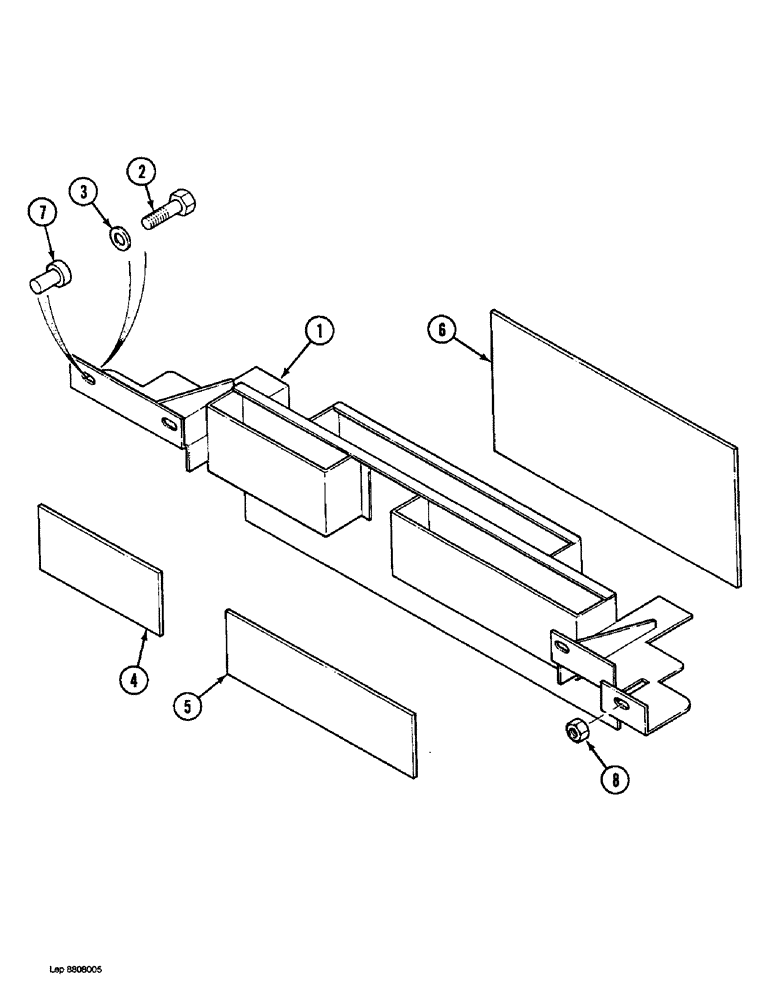

Схема запчастей Case 1088 - (9A-10) - ENGINE INSULATOR, P.I.N. FROM 19801 TO 20213, P.I.N. FROM 106901 TO 106905 (09) - CHASSIS/ATTACHMENTS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P8043857

DEFLECTOR

BRACKET - mounting, pads

1шт.

2

P933839

SCREW

BOLT - hex, 10 mm x 35 mm

4шт.

3

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

4

P4241426

FOAM

PAD - insulation, inner, right-hand side

3шт.

5

P4241427

FOAM

PAD - insulation, inner, left-hand side

3шт.

6

P3841456

FOAM

PAD - insulation, outer, center

3шт.

7

P35471

RIVET

RETAINER - bolt, sleeve type, 10 mm

3шт.

8

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

1шт.
