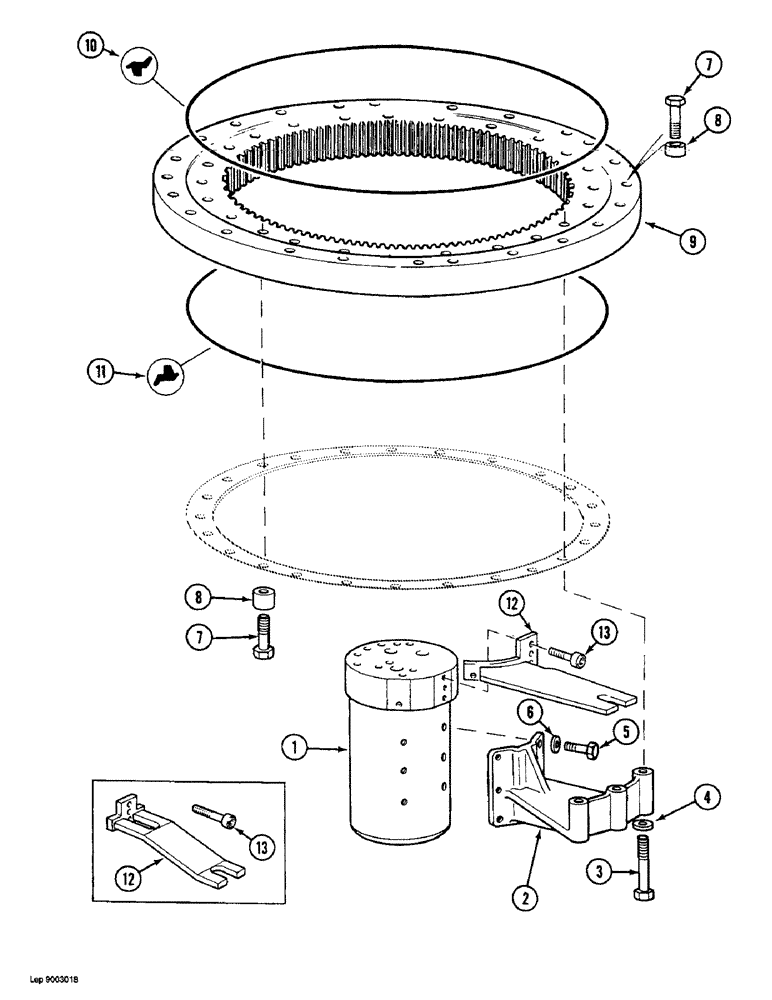

Запчасти Case 1088 (9A-02) - TURNTABLE BEARING, P.I.N. FROM 19801 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, (See Figure 8C-8)

1шт.

2

P603823

SUPPORT

BRACKET - mounting, swivel

1шт.

3

P1633867

SCREW

BOLT - hex, 20 mm x 180 mm, grade 10.9

3шт.

4

P5428789

WASHER

SPACER - bolt, 7 mm thick

3шт.

5

P933819

SCREW

BOLT - hex, 12 mm x 55 mm

6шт.

6

P4328731

WASHER

SPACER - bolt, 24 mm thick

6шт.

7

P1633877

SCREW

BOLT - hex head, 20 mm x 100 mm, grade 10.9

43шт.

8

P4328747

WASHER

SPACER - bolt, 14 mm thick

43шт.

P2239906

SLEWING RING

BEARING ASSEMBLY - turntable, (Order P2239930), Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - turntable

1шт.

10

P8846067

SEAL

- turntable bearing, upper, cut to length as needed and use P1003576 adhesive on ends

1шт.

11

P8846068

SEAL

- turntable bearing, lower, cut to length as needed and use P1003576 adhesive on ends, (If used)

1шт.

12

P7128286

STOP LOCK

BRACKET - swivel lock, (Note A), Serial Range: 19801-20174

1шт.

12

P7628279

STOP LOCK

BRACKET - swivel lock, (Note A), Start Serial: 20175

1шт.

13

P1232971

SCREW

BOLT - hex socket, 12 mm x 30 mm, Serial Range: 19801-20174

3шт.

13

P1232971

SCREW

BOLT - hex socket, 12 mm x 30 mm, Start Serial: 20175

4шт.
