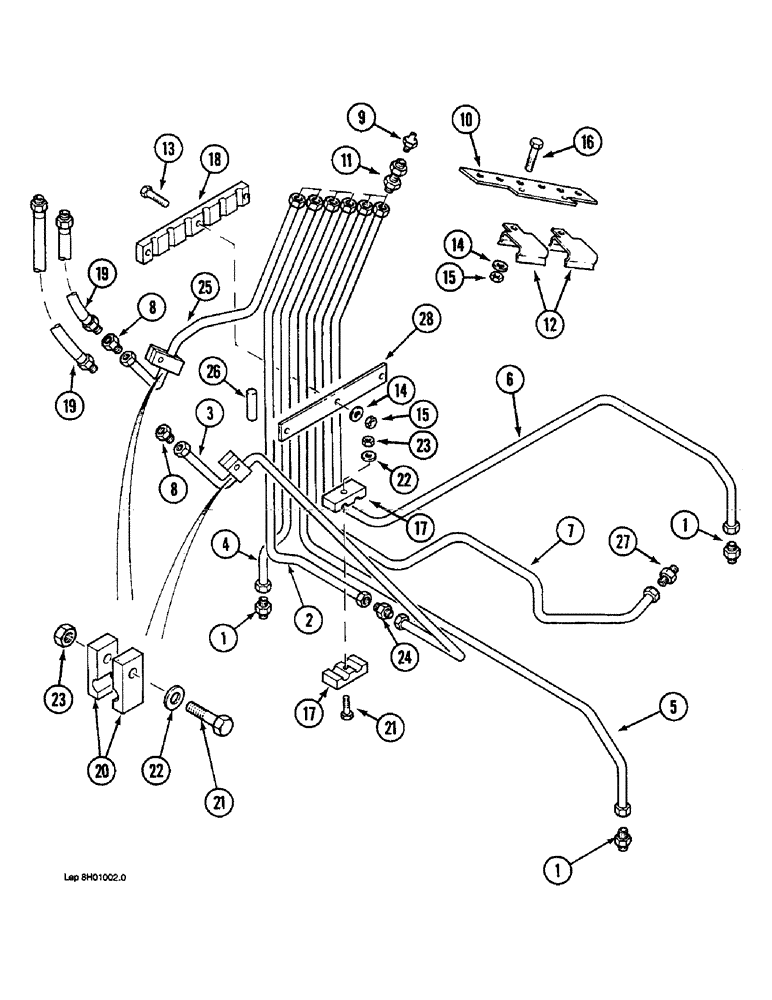

Запчасти Case 1088 (8H-4) - LUBRICATION LINES, P.I.N. FROM 20224 AND AFTER, P.I.N. FROM 106907 AND AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
P3237581
UNION
ADAPTER - straight
3шт.
P7046042
SEAL
- adapter
1шт.
2
P6749052
PIPE
TUBE - lubrication, left-hand boom cylinder, base end, upper
1шт.
3
P6449041
PIPE
TUBE - lubrication, left-hand boom cylinder, base end, lower
1шт.
4
P6749051
PIPE
TUBE - lubrication, turntable bearing
1шт.
5
P7549170
PIPE
TUBE - lubrication, turntable bearing
1шт.
6
P7649194
PIPE
TUBE - lubrication, turntable bearing, (Replaces P7549168)
1шт.
7
P7649198
PIPE
TUBE - lubrication, turntable bearing, (Replaces P7549169)
1шт.
8
P3237597
FITTING
ADAPTER - lubrication hose and grease, Serial Range: fitting-tube
2шт.
8
P3237597
FITTING
ADAPTER - lubrication hose and grease, Serial Range: fitting-tube
2шт.
9
933781R1
LUBE NIPPLE,M10 x 1
NIPPLE, LUBE, M10 x 1
6шт.
10
P3522845
LARGE PLATE
BRACKET - tube clamp, (Replaces P1323591)
1шт.
11
P4837554
UNION
ADAPTER - straight, lubrication tubes to grease fitting
6шт.
12
P1436963
CLASP
CLIP - harness retainer, 14 mm to 20 mm range
2шт.
13
P733035
SCREW
BOLT - hex, 6 mm x 35 mm
3шт.
14
P35001
WASHER
SPACER - flat, M6 n
5шт.
15
P234513
SAFETY NUT
NUT - hex, self-locking, 6 mm
5шт.
17
P4420364
SHIN
CLAMP - tube, lower, for two tubes
2шт.
18
P4620313
SHIN
CLAMP - tube, center, for six tubes
1шт.
19
P5931961
HOSE
- 700 mm long, to boom cylinders at base end
2шт.
20
P4620319
SHIN
CLAMP - boom lubrication tubes
4шт.
21
P933818
SCREW
BOLT - hex, 10 mm x 40 mm
3шт.
22
P35003
WASHER
SPACER - flat, M10 N
3шт.
23
P34598
SAFETY NUT
NUT - hex, self-locking, 10 mm
3шт.
24
P3237534
UNION
ADAPTER - straight
1шт.
25
P6849026
PIPE
TUBE - lubrication, right-hand boom cylinder, base end, (Replaces P6749053)
1шт.
26
P1231887
PIPE
TUBE - spacer, clamp
1шт.
27
P3237530
UNION
ADAPTER - straight
1шт.
P7046042
SEAL
- adapter
1шт.
28
P3522841
LARGE PLATE
BRACKET - tube clamp
1шт.
Выбрано товаров: 31
