Запчасти Case 1088 (8H-2) - LUBRICATION LINES, P.I.N. FROM 19801 TO 20223, P.I.N. FROM 106901 TO 106906 (08) - HYDRAULICS

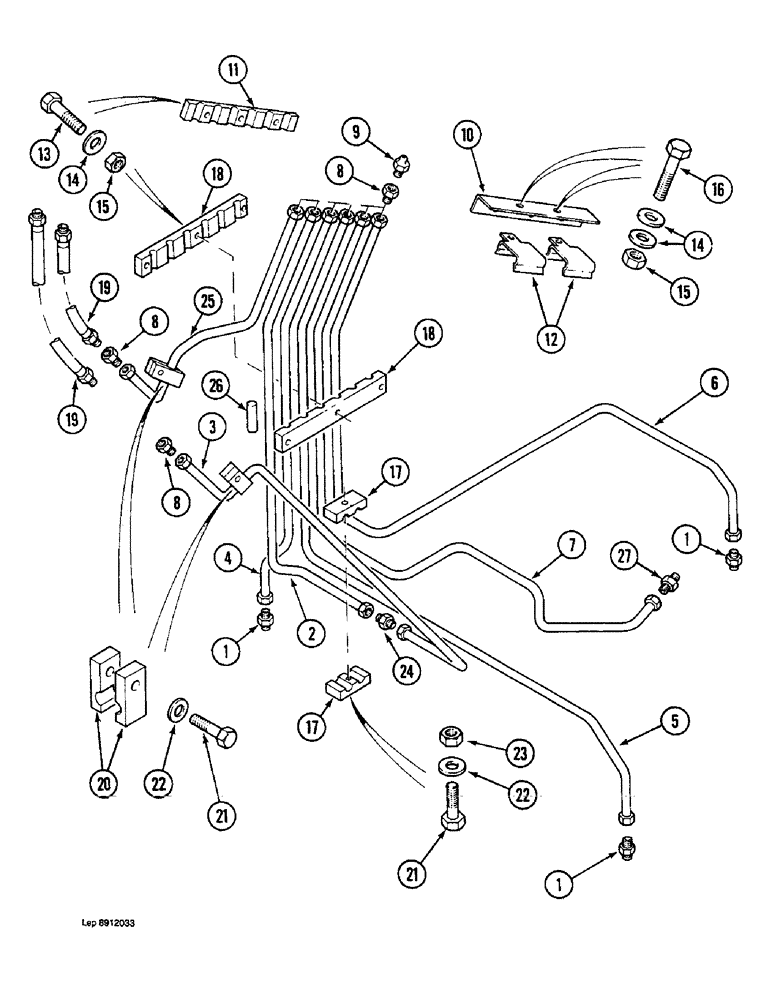

Схема запчастей Case 1088 - (8H-2) - LUBRICATION LINES, P.I.N. FROM 19801 TO 20223, P.I.N. FROM 106901 TO 106906 (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

P3237581

UNION

ADAPTER - straight

3шт.

P7046042

SEAL

- adapter

1шт.

2

P7249175

PIPE

TUBE - lubrication, left-hand boom cylinder, base end, upper

1шт.

3

P6449041

PIPE

TUBE - lubrication, left-hand boom cylinder, base end, lower

1шт.

4

P6249019

PIPE

TUBE - lubrication, turntable bearing

1шт.

5

P6649186

PIPE

TUBE - lubrication, turntable bearing

1шт.

6

P6249188

PIPE

TUBE - lubrication, turntable bearing

1шт.

7

P6649187

PIPE

TUBE - lubrication, turntable bearing

1шт.

8

P3237597

FITTING

ADAPTER - lubrication hose and grease, Serial Range: fitting-tube

8шт.

9

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

6шт.

10

P1831646

ANGLE BAR

BRACKET - tube clamp

1шт.

11

P4620334

SHIN

CLAMP - tube, upper, for six tubes

1шт.

12

P1436963

CLASP

CLIP - harness retainer, 1/2 inch - 3/4 inch range

2шт.

13

P733038

SCREW

BOLT - hex head, 6 mm x 40 mm

6шт.

14

P3528799

WASHER

SPACER - bolt, 4 mm thick

10шт.

15

P234513

SAFETY NUT

NUT - hex, self-locking, 6 mm

8шт.

16

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

2шт.

17

P4420364

SHIN

CLAMP - tube, lower, for two tubes

2шт.

18

P4620313

SHIN

CLAMP - tube, center, for six tubes

2шт.

19

P5931961

HOSE

- 27-9/16 inch long, to boom cylinders at base end

2шт.

20

P4620319

SHIN

CLAMP - boom lubrication tubes

4шт.

21

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm

3шт.

22

P3528795

WASHER

SPACER - bolt, 7 mm thick

3шт.

23

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

1шт.

24

P3237534

UNION

ADAPTER - straight

1шт.

25

P7249174

PIPE

TUBE - lubrication, right-hand boom cylinder, base end

1шт.

26

P1231887

PIPE

TUBE - spacer, clamp

1шт.

27

P3237530

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.

Выбрано товаров: 29
