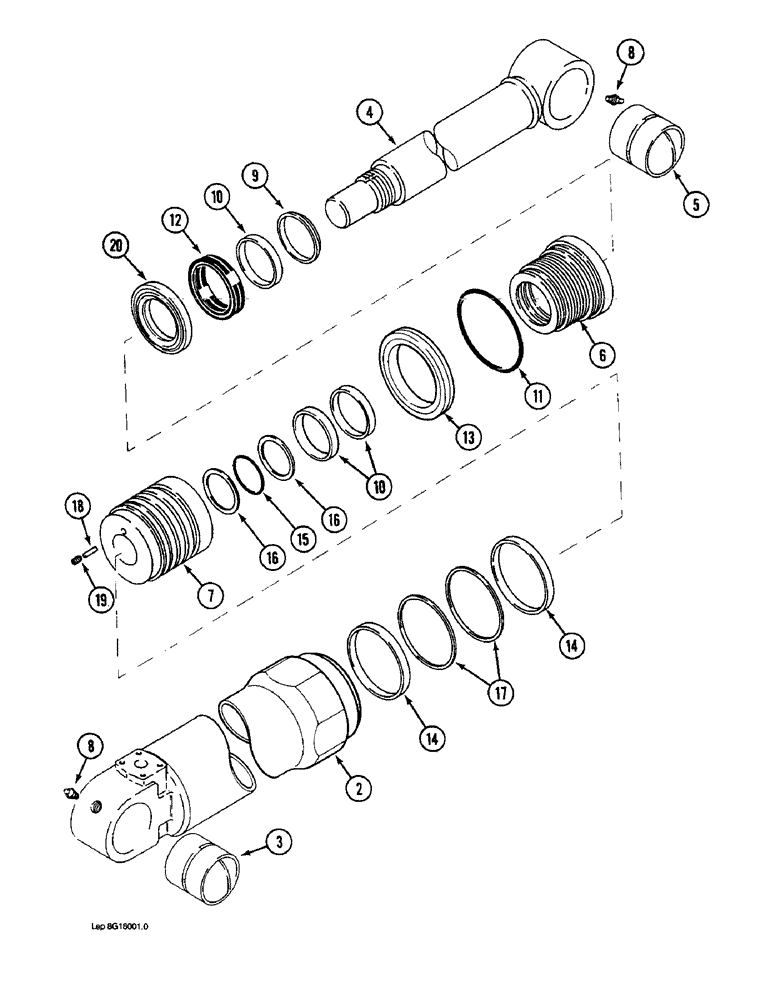

Запчасти Case 1088 (8G-40) - TOOL CYLINDER, P.I.N. FROM 20235 AND AFTER, P.I.N. FROM 106901 AND AFTER (08) - HYDRAULICS

P8546741

CYLINDER ASSY.

CYLINDER ASSEMBLY - tool, (Replaces P7946796), Includes: Ref. 2 - 20

1шт.

P2052419

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

3

P1928655

BUSHING

- tube, bronze

1шт.

3

P4028780

BUSHING

- tube, steel

1шт.

P8849478

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

5

P5428717

BUSHING

- piston rod

1шт.

6

P4429116

CYLINDER END CAP

GLAND - cylinder

1шт.

7

P3829163

PISTON

- cylinder

1шт.

8

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

2шт.

P6049604

SEAL PACKAGE

KIT - seal, (Order P649663), Includes: Ref. 9 - 20

1шт.

9

P1251343

SCRAPER

WIPER - piston rod

1шт.

10

P9046051

BAND

RING - wear

3шт.

11

P130440

O-RING

- gland, large

1шт.

12

P1751217

SEAL

U-CUP SEAL - piston rod

1шт.

13

P2030487

SEAL

- gland

1шт.

14

P1845282

BAND

RING - wear

2шт.

15

P2030485

O-RING

- piston rod

1шт.

16

P9046020

BACK-UP RING

BACKUP RING - piston rod O-ring

2шт.

17

P446048

SPECIAL MAT. SEAL

SEAL - piston

2шт.

18

P827736

PIN

- locking

1шт.

19

P1432952

SCREW

SET SCREW - pin

1шт.

20

P1951214

SEAL

U-CUP SEAL - piston rod

1шт.
