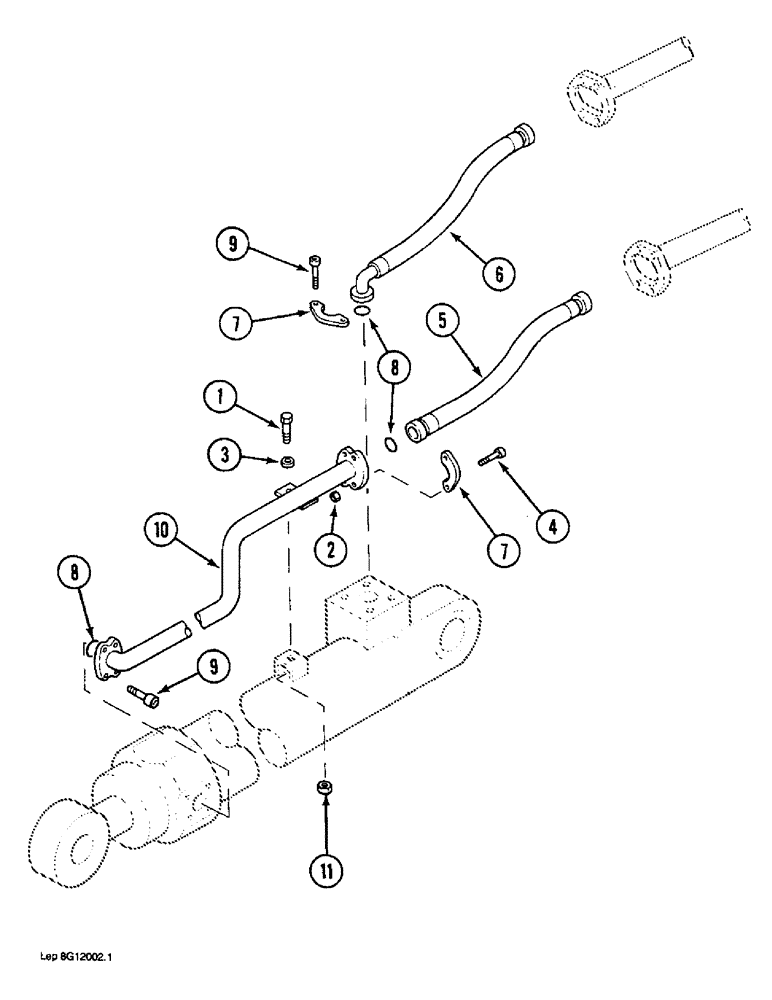

Запчасти Case 1088 (8G-36) - TOOL CYL. CIRCUIT, TUBES AT ARM - 2.20 M AND 2.80 M, P.I.N. FROM 20227 & AFT., P.I.N. 106925 & AFT. (08) - HYDRAULICS

1

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm, full thread

1шт.

2

86500689

NUT,M10 x 1.5, Cl 10

4шт.

3

P4328796

WASHER

SPACER - bolt, 7 mm thick

1шт.

4

P32937

SCREW

BOLT - hex socket, 10 mm x 50 mm

4шт.

5

P7631915

HOSE

- 1800 mm, to rod end of arm cylinder

1шт.

6

P5931999

HOSE

- 1800 mm long, to base end of arm cylinder

1шт.

7

P4024266

CLAMP

SPLIT FLANGE - hose flange

4шт.

8

P1130483

O-RING

- tube and hose flange

3шт.

9

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

10

P8647691

HYD TUBE

TUBE - to rod end point at cylinder

1шт.

11

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

1шт.
