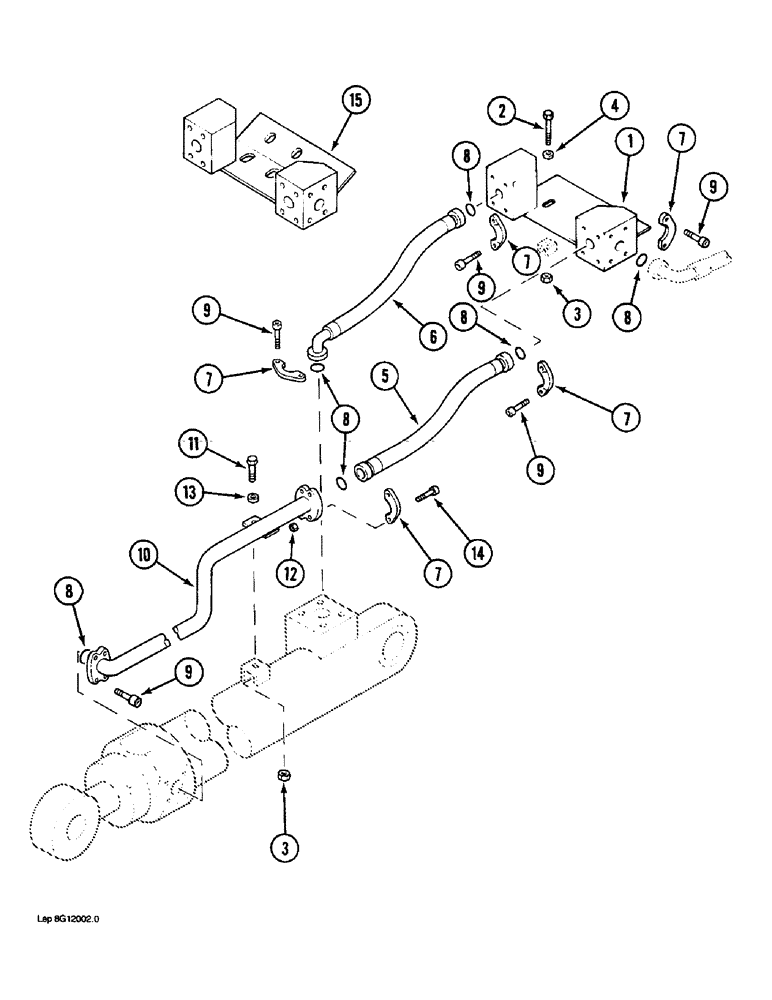

Запчасти Case 1088 (8G-34) - TOOL CYLINDER CIRCUIT, TUBES AT ARM - 2.20 M AND 2.80 M, P.I.N. FROM 106901 TO 106924 (08) - HYDRAULICS

1

P5328271

ELEC SUPPORT PLATE

BLOCK - manifold, hose flange, 2.80m arm

1шт.

2

P933839

SCREW

BOLT - hex, 10 mm x 35 mm

3шт.

3

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

3шт.

4

P4328796

WASHER

SPACER - bolt, 7 mm

3шт.

5

P5931992

HOSE

- 24-13/16" long, to base end of arm cylinder, 2.20m arm

1шт.

5

P5931978

HOSE

- 49-3/16 inch long, to base end of arm cylinder, 2.80m arm

1шт.

6

P5931914

HOSE

- 19-3/4" long, to rod end of arm cylinder, 2.20m arm

1шт.

6

P6531961

HOSE

- 39-3/8" long, to rod end of arm cylinder, 2.80m arm

1шт.

7

P4024266

CLAMP

SPLIT FLANGE - hose flange

12шт.

8

P1130483

O-RING

- tube and hose flange

7шт.

9

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

10

P8647691

HYD TUBE

TUBE - to rod end point at cylinder

1шт.

11

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm, full thread

1шт.

12

86500689

NUT,M10 x 1.5, Cl 10

5шт.

13

P3528795

WASHER

SPACER - bolt, 7 mm thick

1шт.

14

P32937

SCREW

BOLT - hex socket, 10 mm x 50 mm

4шт.

15

P7428216

ELEC SUPPORT PLATE

BLOCK - manifold, hose flange, 2.20m arm

1шт.
