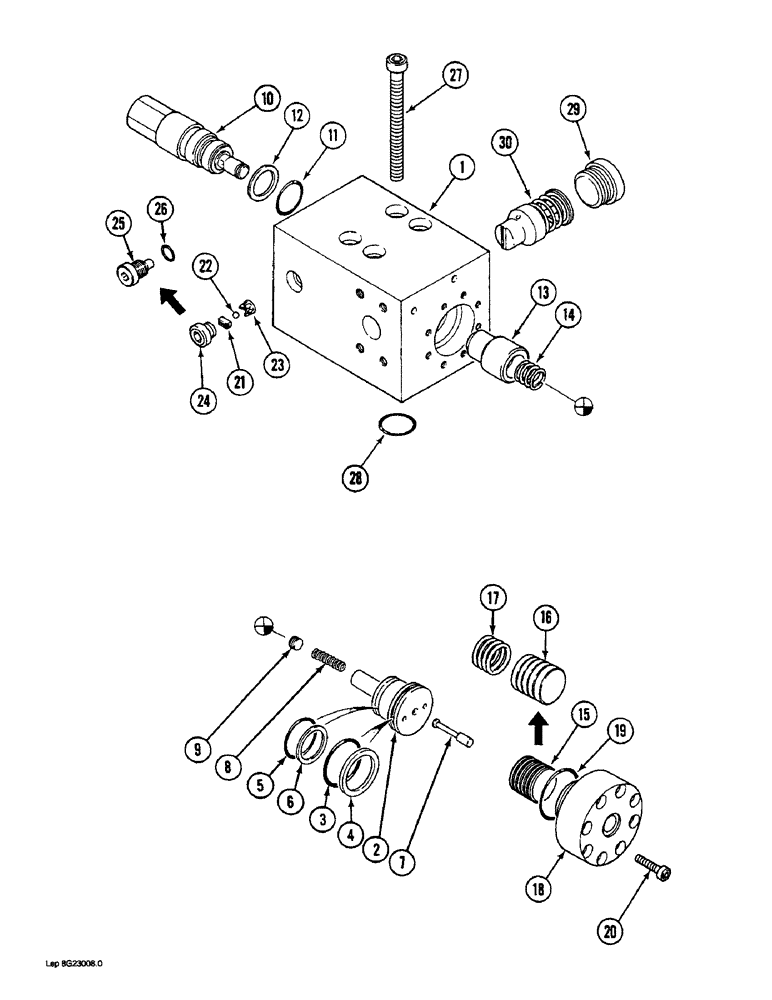

Запчасти Case 1088 (8G-32) - LOAD HOLDING VALVE, WITH ARM CYLINDERS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
P4343305
SHIN
VALVE ASSEMBLY - load holding valve, Includes: Ref. 1 - 30
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - load holding valve
1шт.
P8346271
SPOOL
POPPET ASSEMBLY - load holding valve, Includes: Ref. 2 - 9
1шт.
2
NSS
NOT SOLD SEPARAT
POPPET - valve
1шт.
3
P30405
O-RING
- poppet, large
1шт.
4
P945222
BACK-UP RING
BACKUP RING - O-ring, large
1шт.
5
P1230443
O-RING
- poppet, small
1шт.
6
P1746045
BACK-UP RING
BACKUP RING - O-ring, small
1шт.
7
P6027897
VALVE POPPET
CLAPET - poppet
1шт.
8
P1538183
SPRING
- poppet
1шт.
9
P532820
SCREW
- poppet, 8 mm x 6 mm
1шт.
P4043393
PRESSURE LIMITER
VALVE ASSEMBLY - pressure limiter, Includes: Ref. 10 - 12
1шт.
10
NSS
NOT SOLD SEPARAT
VALVE - pressure limiter
1шт.
11
P2230463
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
- pressure limiter
1шт.
12
P1245232
RING
BACKUP RING - pressure limiter
1шт.
13
P1729852
VALVE POPPET
SEAT - valve spring
1шт.
14
P1538186
SPRING
- poppet
1шт.
15
P6027898
PISTON
- valve, (Order 1 @ P6527809, 1 @ P1538186)
1шт.
16
P6527809
PISTON
- valve
1шт.
17
P1538186
SPRING
- piston
1шт.
18
P150252
CAP
- valve
1шт.
19
P30487
O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro
-, Serial Range: cap-body
1шт.
20
P1032901
SCREW
BOLT - hex socket, 5 mm x 25 mm, full thread
8шт.
20
P632910
SCREW
BOLT - hex socket, 5 mm x 30 mm
8шт.
21
P4229101
STOP
- ball, (See T.I.N. 3277)
1шт.
22
P31001
BALL
- check, valve
1шт.
23
P4229102
SEAT
- ball
1шт.
24
P2537448
PLUG
- valve body
1шт.
P2230441
SEAL
- plug
1шт.
25
P650232
PLUG - valve body
1шт.
26
P2230441
SEAL
- plug
1шт.
27
P732976
SCREW
BOLT - hex socket, 10 mm x 100 mm, grade 10.9
4шт.
28
P1130483
O-RING
- valve, Serial Range: body-manifold
1шт.
29
P2537429
PLUG
- restrictor
1шт.
P5746063
SEAL
- plug
1шт.
30
P5143326
LIMITER, TRAVEL
RESTRICTOR ASSEMBLY - valve
1шт.
Выбрано товаров: 36
