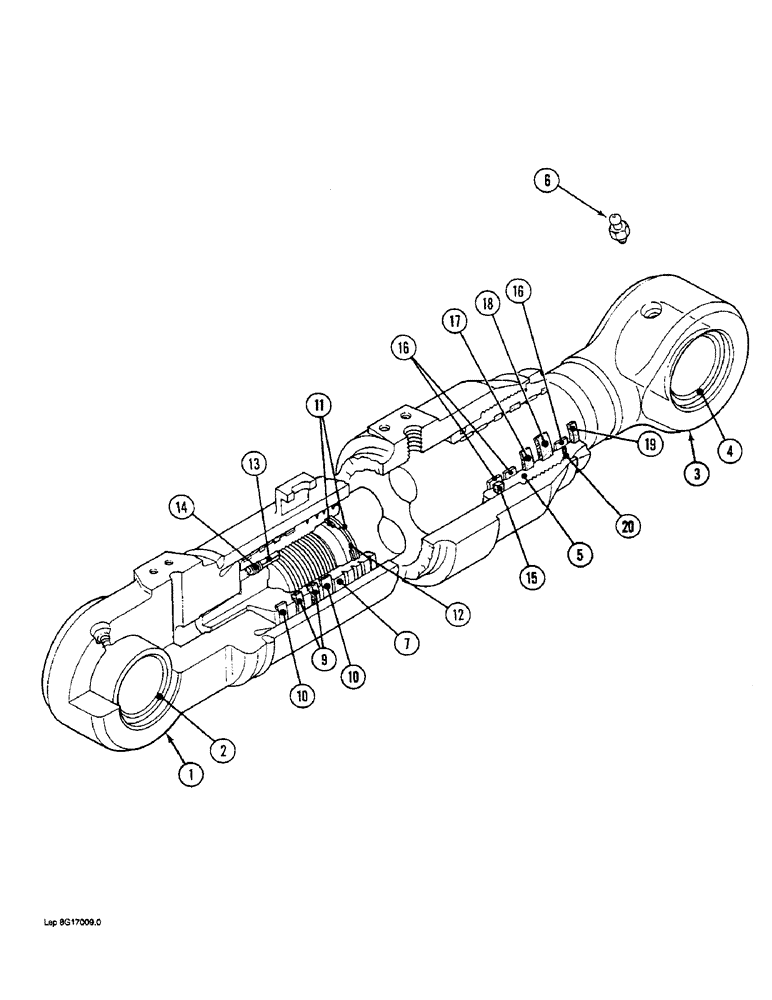

Запчасти Case 1088 (8G-31A) - ARM CYLINDER (08) - HYDRAULICS

P8746736

CYLINDER ASSY.

CYLINDER ASSEMBLY - arm, (Replaces P8546738, P7946794 and P7946722), Includes: Ref. 2 - 20

1шт.

P2152433

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

3

P1928662

BUSHING

- tube

1шт.

P8949490

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

5

P1928662

BUSHING

- piston rod

1шт.

6

P4429115

CYLINDER END CAP

GLAND - cylinder

1шт.

7

P1829982

PISTON

- cylinder

1шт.

8

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

2шт.

P6049664

SEAL PACKAGE

KIT - seal, Includes: Ref. 9 - 20

1шт.

9

P1251342

SCRAPER

WIPER - piston rod

1шт.

10

P9046050

BAND

RING - wear

3шт.

11

P1930426

O-RING

- gland, large

1шт.

12

P1951212

SEAL

U-CUP SEAL - piston rod

1шт.

13

P2030491

O-RING

SEAL - gland

1шт.

14

P2045253

BAND

RING - wear

2шт.

15

P2030488

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

- piston rod

1шт.

16

P9046022

BACK-UP RING

BACKUP RING - piston rod O-ring

2шт.

17

P346006

SPECIAL MAT. SEAL

SEAL - piston

2шт.

18

P827736

PIN

- locking

1шт.

19

P1432952

SCREW

SET SCREW - pin

1шт.

20

P1951213

GASKET

U-CUP SEAL - piston rod

1шт.
