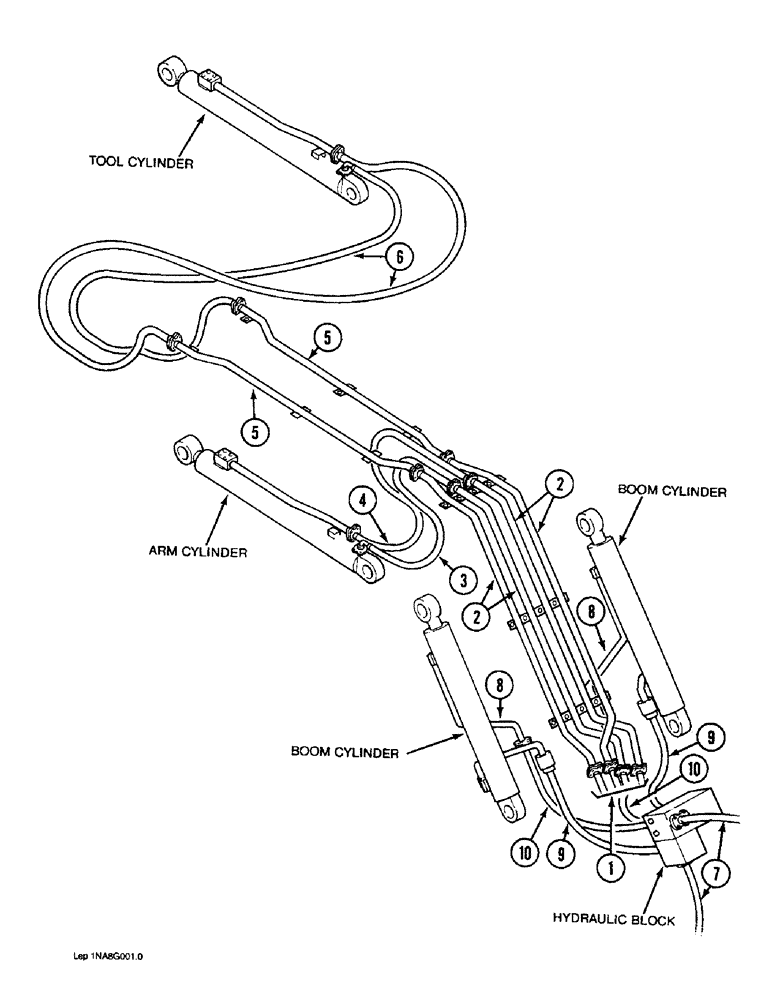

Запчасти Case 1088 (1-26) - PICTORIAL INDEX, ATTACHMENT HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Hoses, Arm and Tools Cylinders, from Attachment Control Valve, Page 8C-2

1шт.

2

Tube Assembly, Arm and Tool Cylinders, Page 8G-20

1шт.

3

Hose, Tube Assembly to Arm Cylinder, Page 8G-20

1шт.

4

Hose, Tube Assembly to Arm Cylinder, Page 8G-20

1шт.

5

Tube, Upper Port to Tool Cylinder, Page 8G-20

1шт.

6

Hose, Tube at Upper Port to Tool Cylinder, 8G-34, 8G-36

1шт.

7

Hoses, from Attachment Control Valve, 8C-2

1шт.

8

Tube Boom Cylinders, Page 8G-6

1шт.

9

Hoses, Manifold to Boom Cylinders, Page 8G-6

1шт.

10

Hoses, Manifold to Tubes of Boom Cylinders, Page 8G-6

1шт.
