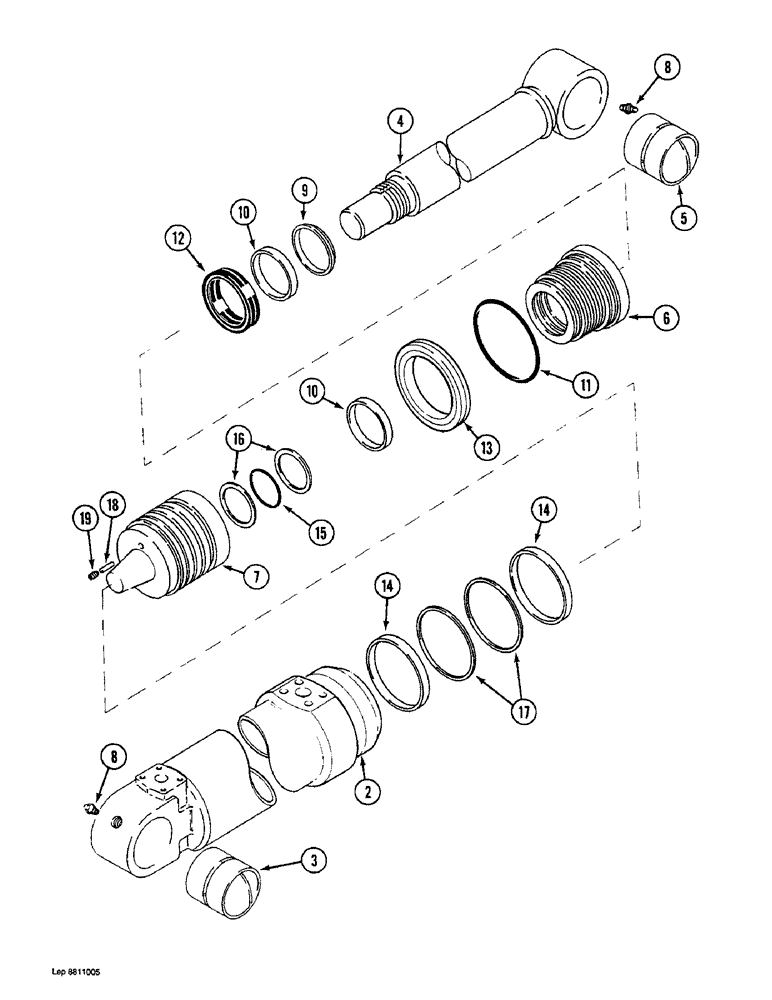

Запчасти Case 1088 (8G-28) - ARM CYLINDER, P.I.N. FROM XXXXX TO 20226, P.I.N. FROM 106901 TO 106925 (08) - HYDRAULICS

P7946794

CYLINDER ASSY.

CYLINDER ASSEMBLY - arm, (Order P8746736) (See Figure 8G-31A), Includes: Ref. 2 - 19

1шт.

P2052413

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

3

P1928662

BUSHING

- tube

1шт.

P8649490

PISTON ROD

ROD ASSEMBLY - piston, to letter (E) identification, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

5

P1928662

BUSHING

- piston rod

1шт.

REF 3 AND 5 ROD ASSY'S....THE REFERENCE TO E OR F IDENTIFICATION MEANS THERE IS A PART NUMBER LISTED ON THE OLD ONE...THIS WILL END IN A LETTER...THIS IS HOW YOU DETERMINE WHICH ONE TO ORDER

1шт.

P8749410

PISTON ROD

ROD ASSEMBLY - piston, from letter (F) identification and after, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

5

P1928662

BUSHING

- piston rod

1шт.

6

P4129190

CYLINDER END CAP

GLAND - cylinder, (See Bulletin T.I.N. 3164)

1шт.

7

P1829958

PISTON

- cylinder, to letter (F) identification

1шт.

7

P1829982

PISTON

- cylinder, from letter (G) identification and after

1шт.

8

P5649651

SEAL PACKAGE

KIT - seal, (See Bulletin T.I.N. 3164), Includes: Ref. 9 - 19

1шт.

9

P2046007

WIPER SEAL

WIPER - piston rod

1шт.

10

P2045252

BAND

RING - wear

2шт.

11

P1930426

O-RING

- gland, large

1шт.

12

P1651223

SEAL

U-CUP SEAL - piston rod

1шт.

13

P2030491

O-RING

SEAL - gland

1шт.

14

P2045253

BAND

RING - wear

2шт.

15

P2030488

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

- piston rod

1шт.

16

P9046022

BACK-UP RING

BACKUP RING - piston rod O-ring

2шт.

17

P346006

SPECIAL MAT. SEAL

SEAL - piston

2шт.

18

P827736

PIN

- locking

1шт.

19

P1432952

SCREW

SET SCREW - pin

1шт.
