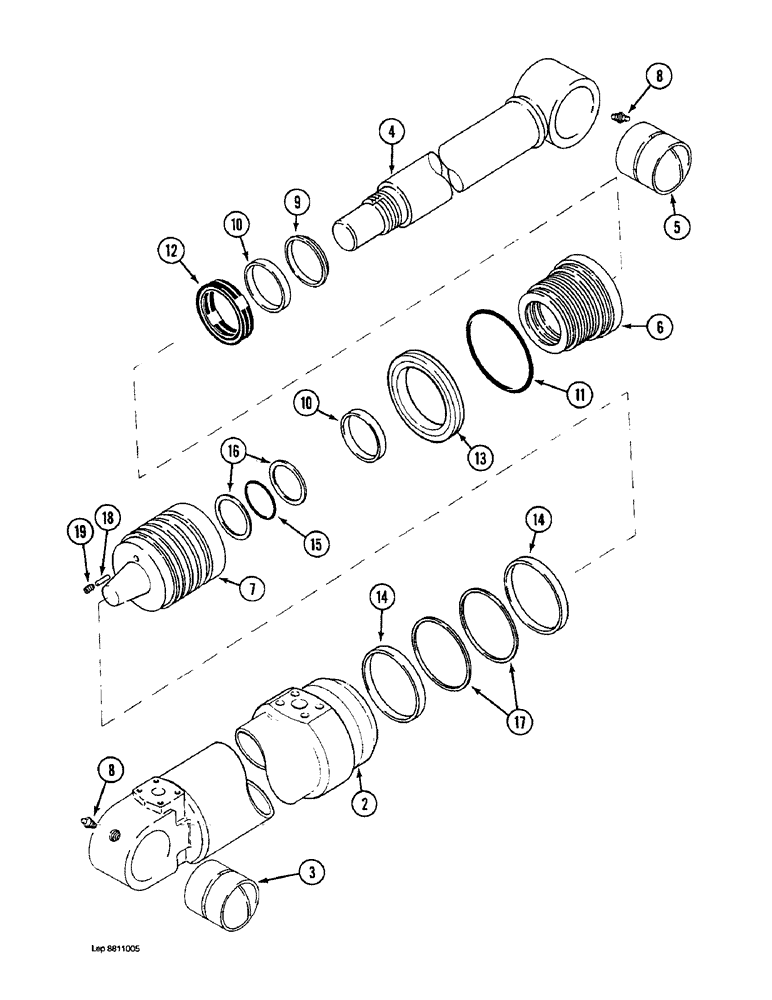

Запчасти Case 1088 (8G-26) - ARM CYLINDER, P.I.N. FROM 19801 TO XXXXX (08) - HYDRAULICS

P7946722

CYLINDER ASSY.

CYLINDER ASSEMBLY - arm, (Order P8546738) (See Figure 8G-30), Includes: Ref. 2 - 19

1шт.

P1952426

JACK BODY

TUBE ASSEMBLY - cylinder, to letter (E) identification, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

3

P1928662

BUSHING

- tube

1шт.

P2052413

JACK BODY

TUBE ASSEMBLY - cylinder, from letter (F) identification, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

3

P1928662

BUSHING

- tube

1шт.

P8349462

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

5

P1928662

BUSHING

- tube

1шт.

6

P4129190

CYLINDER END CAP

GLAND - cylinder, (See Bulletin T.I.N. 3164)

1шт.

7

P1829958

PISTON

- cylinder

1шт.

8

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

2шт.

P5649651

SEAL PACKAGE

KIT - seal, (See Bulletin T.I.N. 3164), Includes: Ref. 9 - 19

1шт.

9

P2046007

WIPER SEAL

WIPER - piston rod

1шт.

10

P2045252

BAND

RING - wear

2шт.

11

P1930426

O-RING

- gland, large

1шт.

12

P1651223

SEAL

U-CUP SEAL - piston rod

1шт.

13

P2030491

O-RING

SEAL - gland

1шт.

14

P2045253

BAND

RING - wear

2шт.

15

P2030488

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

- piston rod

1шт.

16

P9046022

BACK-UP RING

BACKUP RING - piston rod O-ring

2шт.

17

P346006

SPECIAL MAT. SEAL

SEAL - piston

2шт.

18

P827736

PIN

- locking

1шт.

19

P1432952

SCREW

SET SCREW - pin

1шт.
