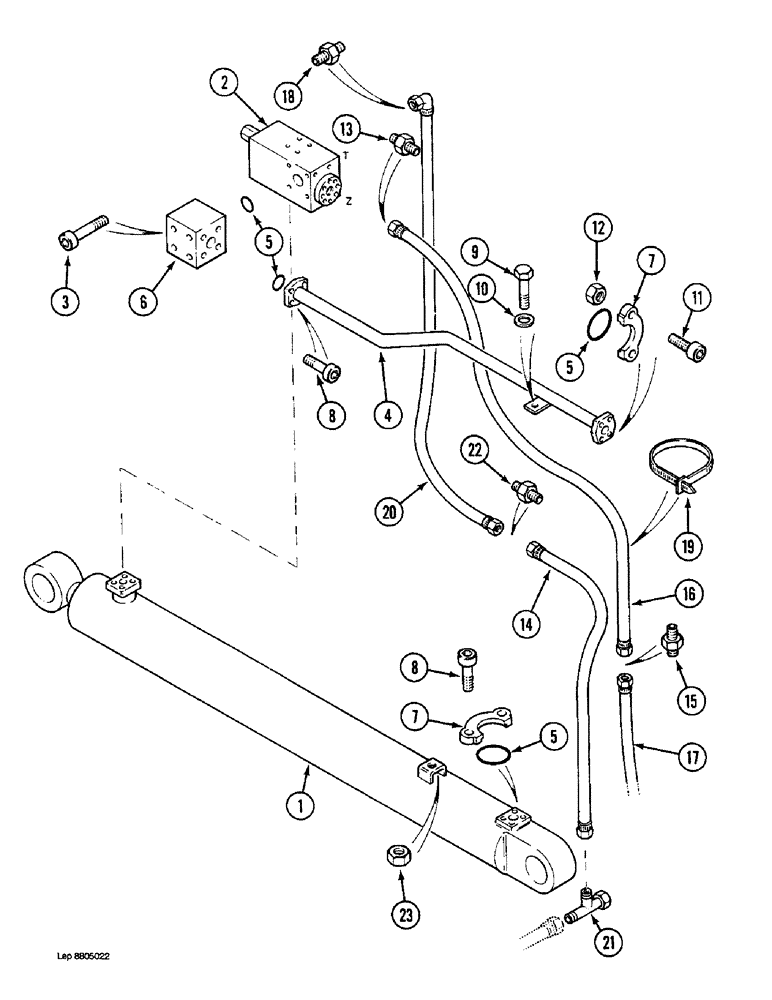

Запчасти Case 1088 (8G-24) - ARM CYLINDER CIRCUIT, WITH LOAD HOLDING VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm (See Figure 8G-26, 8G-28 or 8G-30)

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - load holding (See Figure 8G-32)

1шт.

3

P432938

SCREW

BOLT - hex socket, 10 mm x 70 mm

4шт.

4

P8647667

PIPE

TUBE - to rod end of arm cylinder

1шт.

5

P1130483

O-RING

- tube and hoses flange

2шт.

6

P1737025

ANGLE

BLOCK - load holding, Serial Range: valve-tube

1шт.

7

P4024266

CLAMP

SPLIT FLANGE - tube and hose flange

4шт.

8

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

9

P1133839

SCREW

BOLT - hex, 10 mm x 35 mm, full thread

1шт.

10

P3528796

WASHER

SPACER - bolt, 7 mm thick

1шт.

11

P32937

SCREW

BOLT - hex socket, 10 mm x 50 mm

4шт.

12

86500689

NUT,M10 x 1.5, Cl 10

4шт.

13

P3237581

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.

14

P5931971

HOSE

- 31-1/2" long, control circuit

1шт.

15

P3237534

UNION

ADAPTER - straight

1шт.

16

P6531995

HOSE

- 220-1/2" long, control circuit

1шт.

17

P6531967

HOSE

- 39-3/8" long, control circuit

1шт.

18

P3237533

UNION

ADAPTER - straight

1шт.

P1145268

SEAL

- adapter

1шт.

19

P51946

CLAMP

TIE STRAP - hose, 10-1/8" long

1шт.

20

P6531994

HOSE

- 220-1/2" long, return

1шт.

21

P937277

TEE

- street

1шт.

22

P3237537

UNION

ADAPTER - straight

1шт.

23

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

1шт.
