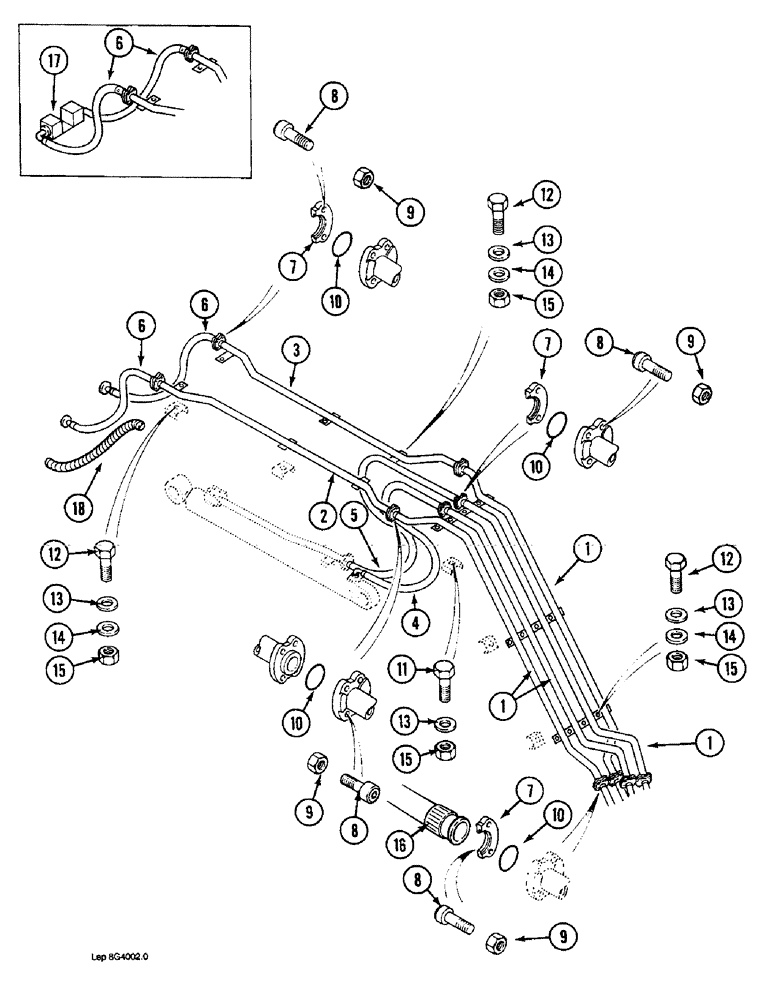

Запчасти Case 1088 (8G-20) - 5.40 M ARM AND TOOL CYLINDER CIRCUIT, TUBES AT BOOM (08) - HYDRAULICS

1

P3950171

HYD TUBE

TUBE ASSEMBLY - to arm and tool cylinders

1шт.

2

P3950166

PIPE

TUBE - left-hand side of arm, to tool cylinder

1шт.

3

P3950167

PIPE

TUBE - right-hand side of arm, to tool cylinder

1шт.

4

P6531961

HOSE

- 39-3/8 inch long, to rod end of arm cylinder

1шт.

5

P5931978

HOSE

- 49-3/16 inch long, to base end of arm cylinder

1шт.

6

P5931979

HOSE

- 55-1/8 inch long, to tool attachment block, Serial Range: 19801-20226

2шт.

6

P5931979

HOSE

- 55-1/8 inch long, to tool attachment block, Serial Range: 106901-106924

2шт.

6

REF

INSTRUCTION

HOSE - 55-1/8 inch long, to tool cylinder (See Figure 8G-36), Start Serial: 20227

2шт.

6

REF

INSTRUCTION

HOSE - 55-1/8 inch long, to tool cylinder (See Figure 8G-36), Start Serial: 106925

2шт.

7

P4024266

CLAMP

SPLIT FLANGE - hose flange

16шт.

8

P32937

SCREW

BOLT - hex socket, 10 mm x 50 mm

40шт.

9

86500689

NUT,M10 x 1.5, Cl 10

- hex, 10 mm, grade 10.9

40шт.

10

P1130483

O-RING

- hose flange

10шт.

11

P933839

SCREW

BOLT - hex, 10 mm x 35 mm, full thread

2шт.

12

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm, full thread

10шт.

13

P3528795

WASHER

SPACER - bolt, 7 mm thick

12шт.

14

P1245227

WASHER

- flat, 10 mm

10шт.

15

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

10шт.

16

REF

INSTRUCTION

HOSE - from arm and tool sections of attachment control valve (See Figure 8C-4)

4шт.

17

REF

INSTRUCTION

BLOCK - manifold, to tool cylinder (See Figure 8G-34)

1шт.

18

REF

INSTRUCTION

PROTECTOR - hoses, boom to arm, 1300 mm long, cut from P1103622, Serial Range: 19801-20226

2шт.

18

REF

INSTRUCTION

PROTECTOR - hoses, boom to arm, 1300 mm long, cut from P1103622, Serial Range: 106901-106924

2шт.

18

REF

INSTRUCTION

PROTECTOR - hoses, boom to arm, 1680 mm long, cut from P1103622, Start Serial: 20227

2шт.

18

REF

INSTRUCTION

PROTECTOR - hoses, boom to arm, 1680 mm long, cut from P1103622, Start Serial: 106925

2шт.
