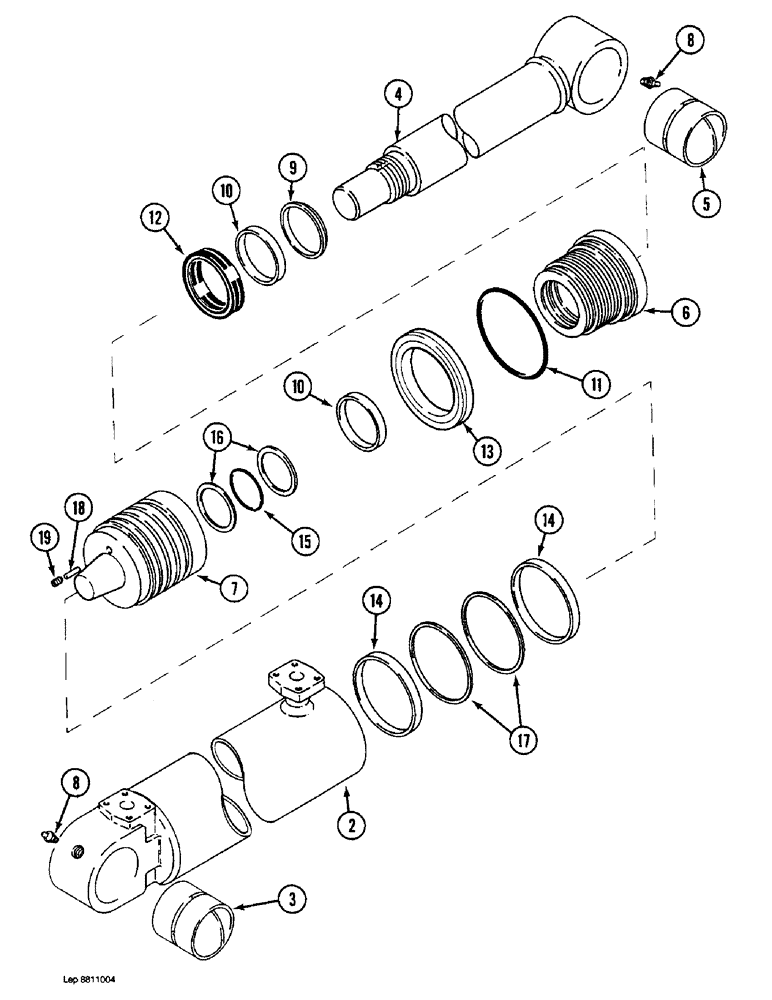

Запчасти Case 1088 (8G-14) - BOOM CYLINDER, P.I.N. FROM 19801 TO XXXXX (08) - HYDRAULICS

P7946732

CYLINDER ASSY.

CYLINDER ASSEMBLY - boom (Order P8546742) (See Figure 8G-18)

1шт.

P1952451

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

3

P1928655

BUSHING

- tube, bronze

1шт.

3

P4028780

BUSHING

- tube, steel

1шт.

P8649460

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

5

P1928655

BUSHING

- piston rod, bronze

1шт.

5

P4028780

BUSHING

- piston rod, steel

1шт.

6

P4129184

CYLINDER END CAP

GLAND - cylinder (See T.I.N. 3164)

1шт.

7

P1829957

PISTON

- cylinder

1шт.

8

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

3шт.

P5649642

SEAL PACKAGE

KIT - seal (See T.I.N. 3164), Includes: Ref. 9 - 19

9шт.

9

P2046009

WIPER SEAL

WIPER - piston rod

1шт.

10

P1845280

BAND

RING - wear

2шт.

11

P230410

O-RING

- gland, large

1шт.

12

P1751217

SEAL

U-CUP SEAL - piston rod

1шт.

13

P2030487

SEAL

- gland

1шт.

14

P1845282

BAND

RING - wear

2шт.

15

P2030485

O-RING

- piston rod

1шт.

16

P9046020

BACK-UP RING

BACKUP RING - piston rod O-ring

2шт.

17

P446048

SPECIAL MAT. SEAL

SEAL - piston

2шт.

18

P827736

PIN

- locking

1шт.

19

P1432952

SCREW

SET SCREW - pin

1шт.
